JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use

JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use thumbnail-1
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use thumbnail-2
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use thumbnail-3
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use thumbnail-4
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use thumbnail-5
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use photo-1

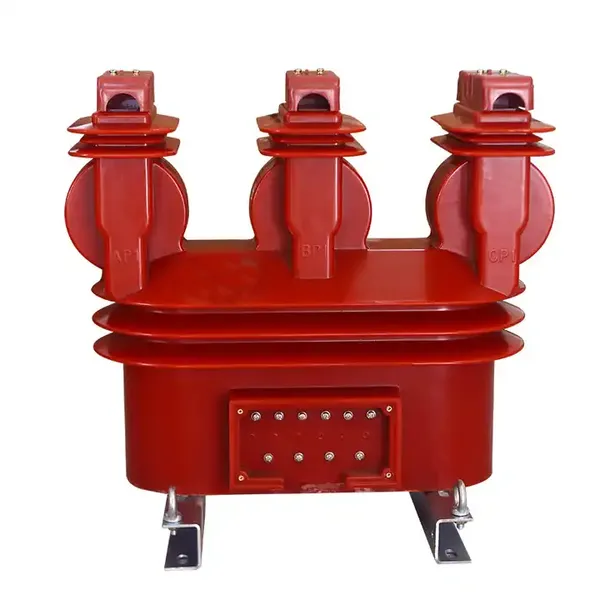

JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use photo-2

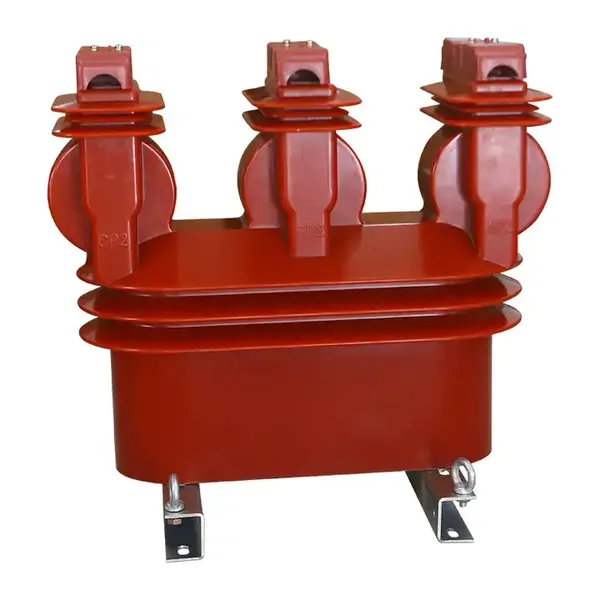

JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use photo-3

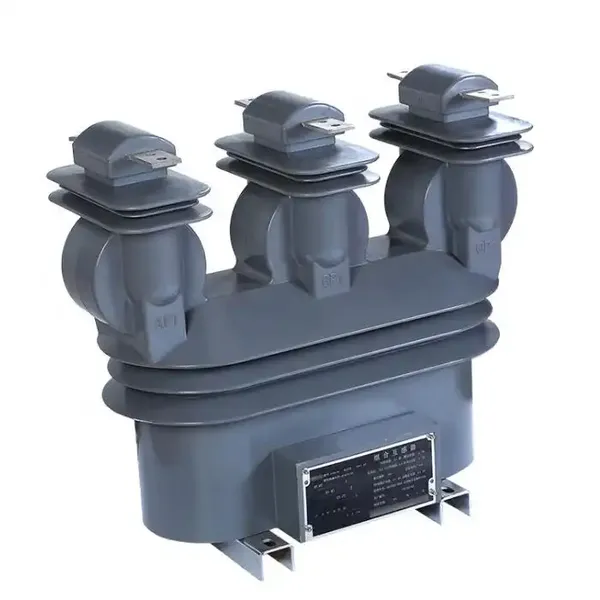

JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use photo-4

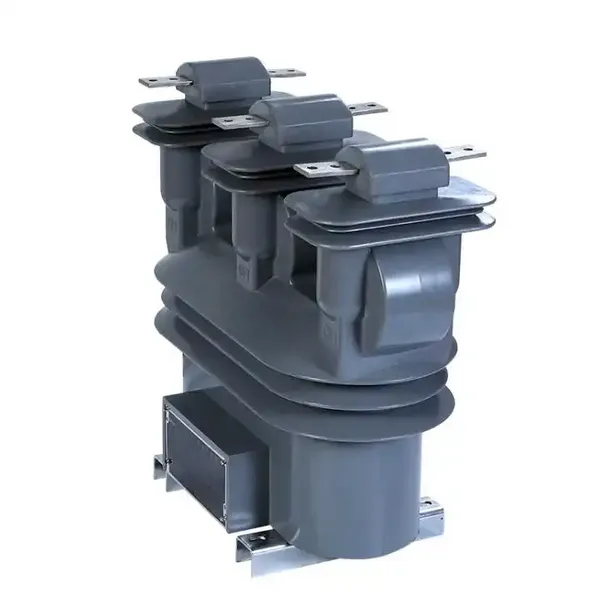

JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power Use photo-5
US$ 620 1 - 49 Piece
US$ 500 ≥50 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Annual Export Value:
US$1 Million - US$1.5 Million
Total Employees:
11 - 50 People
Contact Supplier Request Quote Chat Now
Jinhua Dika Electrical Equipment Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Product descriptions from the supplier

Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Details
Place of Origin：Wenzhou Zhejiang China
Brand Name: NA HU
Model Number: JLSZY-10
Usage: Current transformer, Electronic
Coil Structure: TOROIDAL
Max. output(VA) 2*400
Packaging & Delivery
Packaging Details:  Standard export packing box
Port: Ningbo Shanghai  （Customers can specify the port）
Lead Time: 7-15 days
sales unit: single product
Products Description

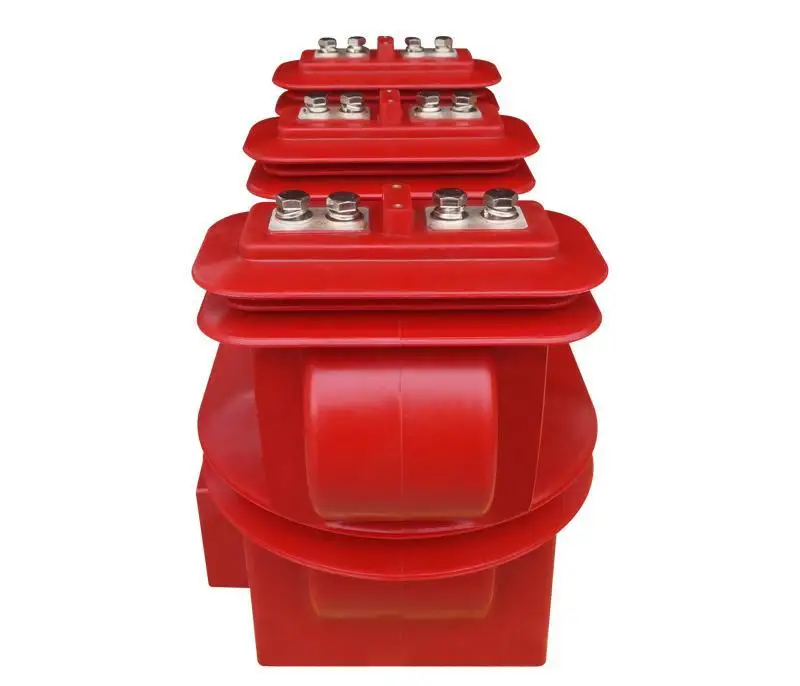

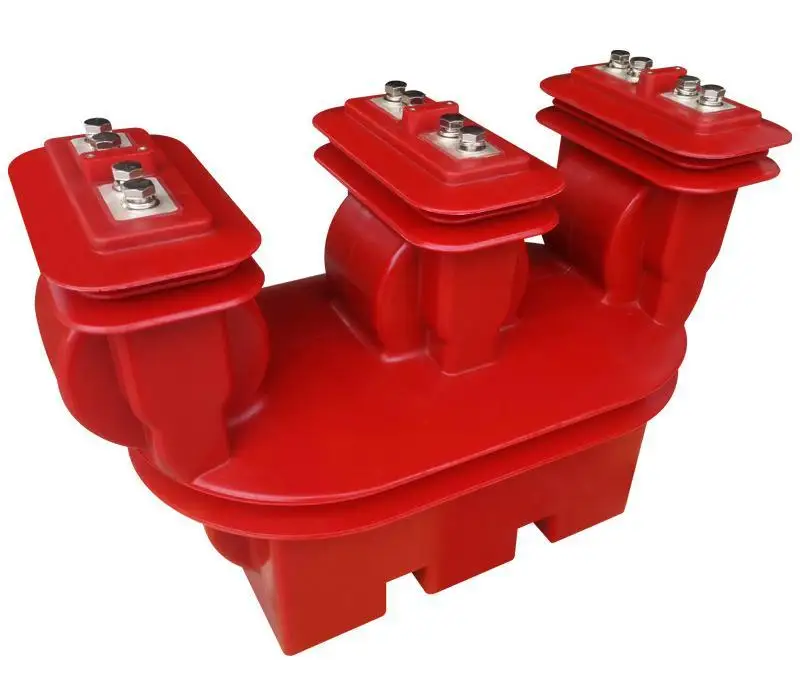

High voltage transformer JLSZY-10



       JLSZY-10 integral casting high-voltage dry-type combined transformer (integral casting high-voltage metering box) is improved on the basis of similar products. It is suitable for active work in outdoor AC systems with rated frequency of 50HZ and rated voltage of 10KV and below. Power metering is a replacement product of the old-fashioned metering box.

JLSZY-10 integral casting high pressure dry type combined transformer, (integral casting high voltage metering box) is made of outdoor special epoxy resin vacuum casting with arc resistance, aging resistance and pollution resistance. Large, rain-proof, dust-proof, and corrosion-resistant, it is an ideal product for power grid metering upgrades.
Parameters

The technical parameters of the form are for reference only.  Customized products can consult online customer service!


Technical data

Parameter of current part
Rated primary current
Single Ratio
Rated secondary output(VA)
1s thermal current(KA)
Rated dynamic current (KA)
0.2(S)
0.5S
0.5
5-10-15
5










10










10










15
1.0
2.5
10-15-20
10
1.5
3.75
15-20-30
15
2.4
6.0
20-30-40
20、25
3.0
7.5
30-40-50
30
4.5
11
40-50-75
40
6.5
16.5
50-75-100
50
9
22.5
75-100-150
75
12
30
100-150-200
100
16
40
150-200-300
150
24
60
200-300-400
200、250
32

80
300-400-500
300
45
400-500-600
400
60
500-600-800

500-1000

80

100
600-800-1000

Parameter of voltage part

Type

Rated voltage ratio(V)
Accuracy class
Three-phase rated
secondary output(VA)

Max. output (VA)

Rated insulation level(KV)
JLSZY-6
6000√3/100√3
0.2-3*20
0.5-3*50


2*400
7.2/32/60
JLSZY-10
10000√3/100√3
1-3*80
3-3*200
12/42/75


Product Tags: 35kv Dry Combined Transformer , casting High Pressure Metering Box , autotransformer Coil Number
