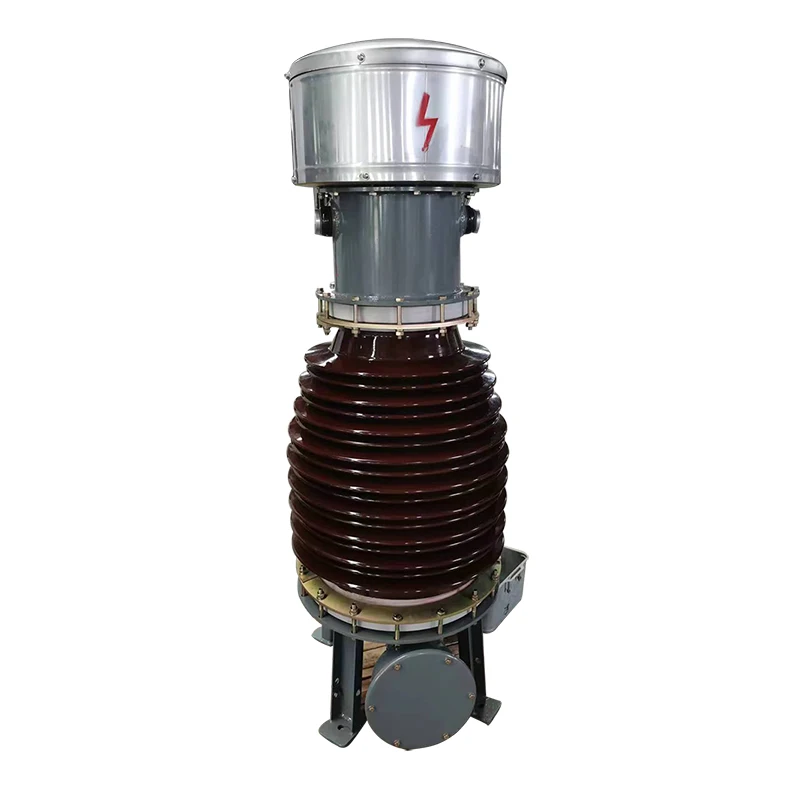

Factory Directly Sells JDCF Single Phase Outdoor High Voltage Potential Transformer 110KV Oil Filled PT
US$ 3000
1 - 19 Piece
US$ 2500
≥20 Piece
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
15 days
Related Products
-
33Kv Voltage Transformer Power Transformer 110V 220V Voltage Converter 10Kw High Voltage Transformer 15KvUS$ 4200 - 100000MOQ: 1 Piece -
Single Phase Oil Immersed Transformer 10KVA 15KVA 25KVA 37.5KVA Standard CompliantNegotiableMOQ: 2 Units
-
Single Phase Oil Type Transformer 10KVA 15KVA 25KVA 37.5KVA for Rural ElectrificationNegotiableMOQ: 2 Units
-
Single Phase Transformer Oil Immersed 10KVA 15KVA 25KVA 37.5KVA With Overload ProtectionNegotiableMOQ: 2 Units
-
Reliable Single Phase Oil Filled Transformer 10KVA-37.5KVA With Technical SupportNegotiableMOQ: 2 Units
Place of Origin
China
Product Description
Product Introduction

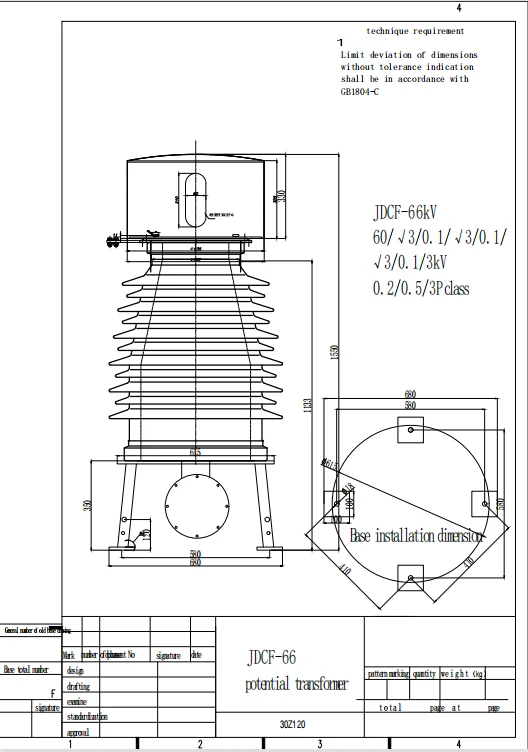

JDCF-66/JDCF-126 voltage transformer is used to convert the high voltage into 100V or lower standard secondary voltage in proportion for protection, metering and instrumentation. At the same time, the use of voltage transformers can isolate high voltage from electrical workers.
Although the voltage transformer is also a device that works according to the principle of electromagnetic induction, its electromagnetic structure relationship is just opposite to that of the current transformer. The secondary circuit of voltage transformer is a high impedance circuit, and the magnitude of the secondary current is determined by the impedance of the circuit. When the secondary load impedance decreases, the secondary current increases, making the primary current automatically increase by one component to meet the electromagnetic balance relationship between the primary and secondary sides. It can be said that the voltage transformer is a special transformer with limited structure and use form. In short, it is "detection element". The model of voltage transformer is composed of the following parts, and the letters of each part conform to the contents indicated: J-voltage transformer; D - single phase; S-three-phase; J-oil immersion; Z-pouring; Digital - Voltage level (KV). The rated primary voltage is the primary voltage value as the performance reference of the transformer. The rated secondary voltage is the secondary voltage value as the performance reference of the transformer. Rated transformation ratio, the ratio of rated primary voltage to rated secondary voltage.

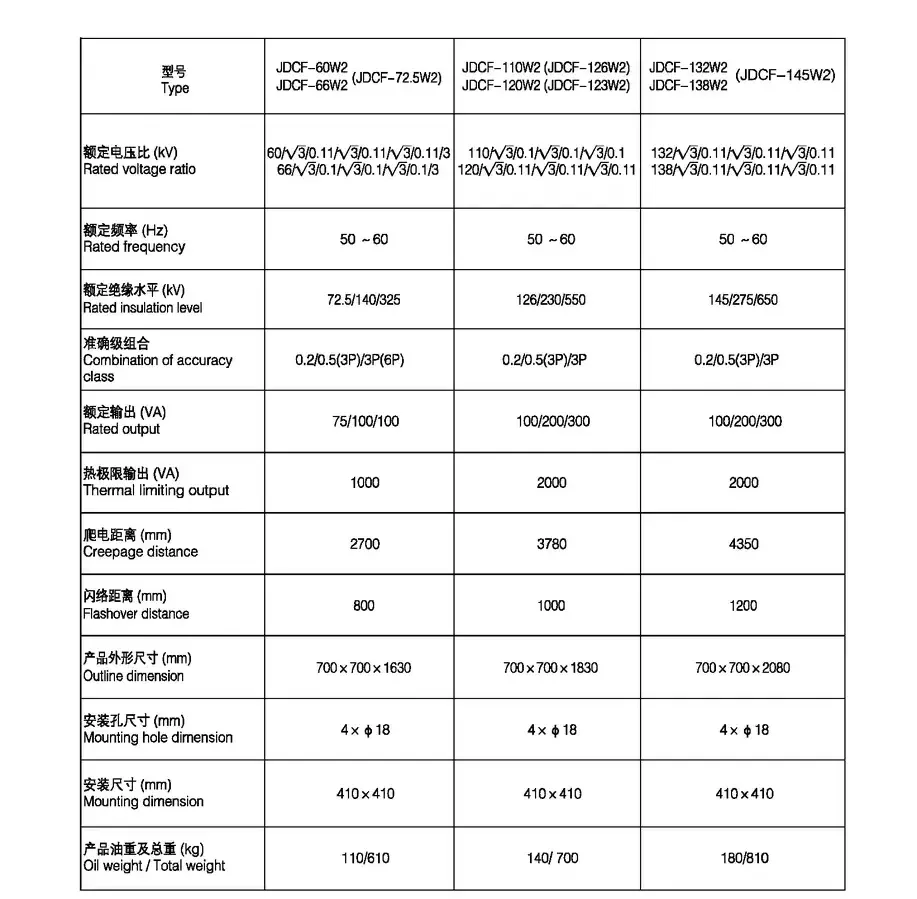

Specification
Type
|
Short-time power frequency withstand voltage |
Lightning impulse withstand voltage (peak) |
||
Dry test |
Wet test |
Full wave |
Carrier wave |
|
JDCF-110W2 |
200 |
185 |
450 |
530 |
JDCF-110W2 |
231 |
563 |
650 |
|
Products Details
