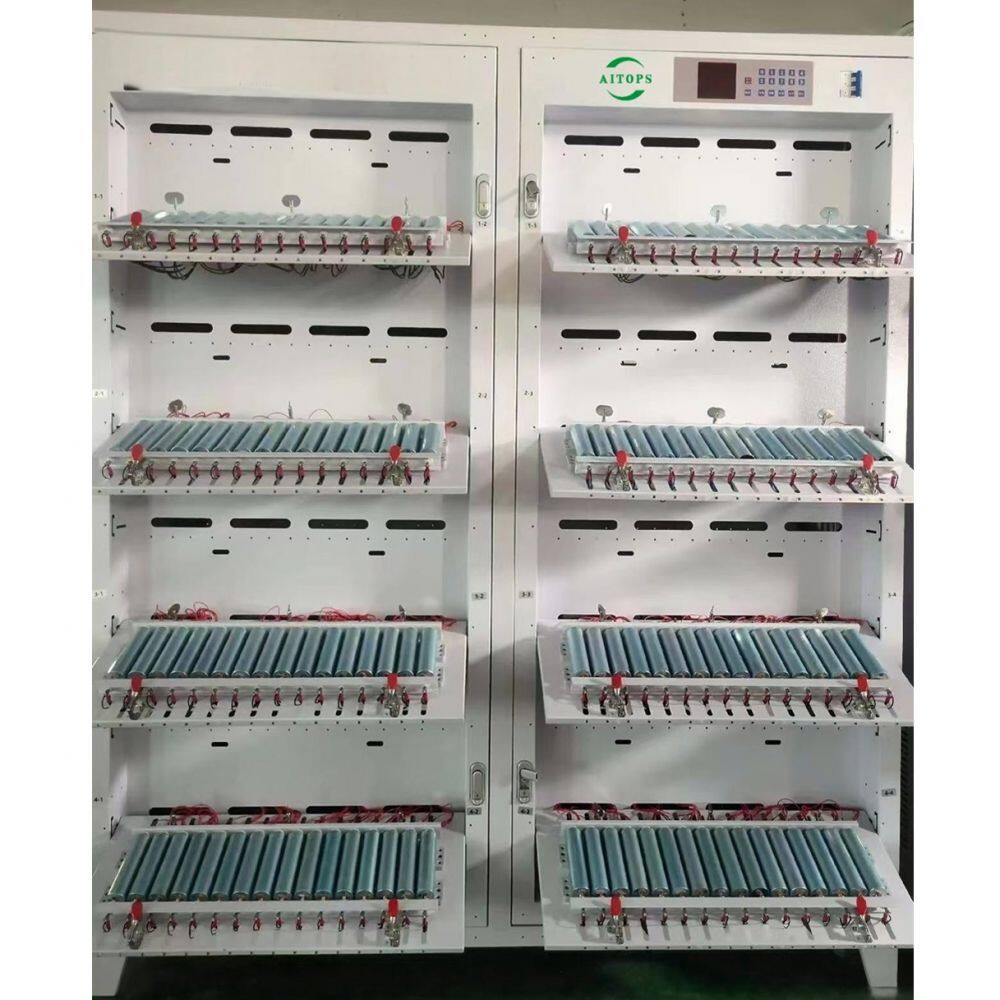

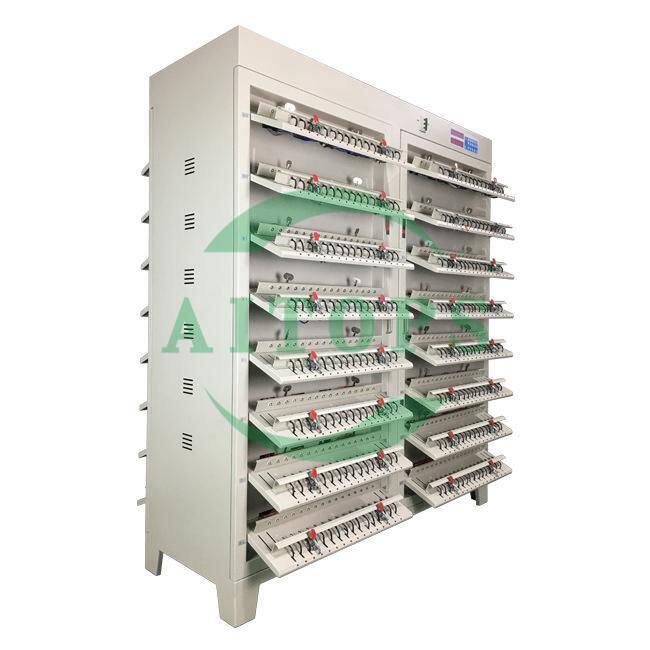

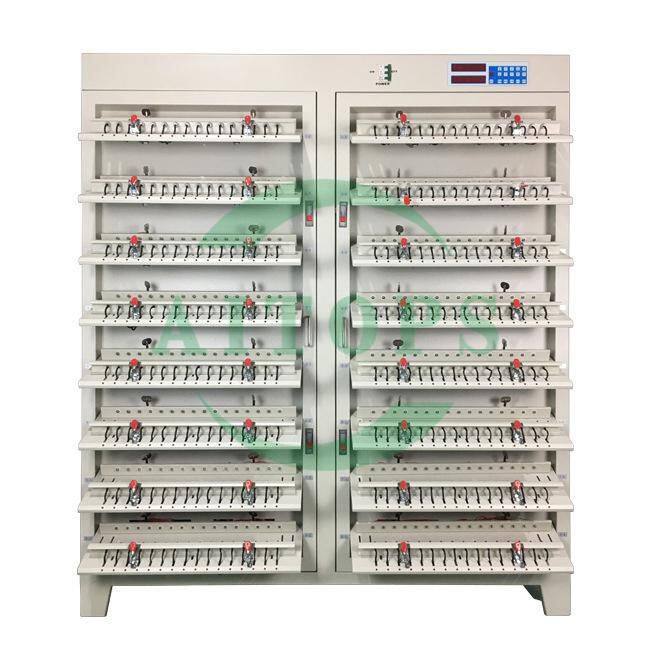

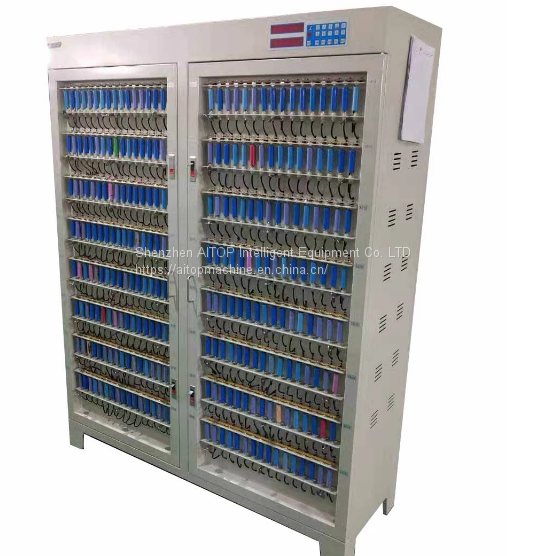

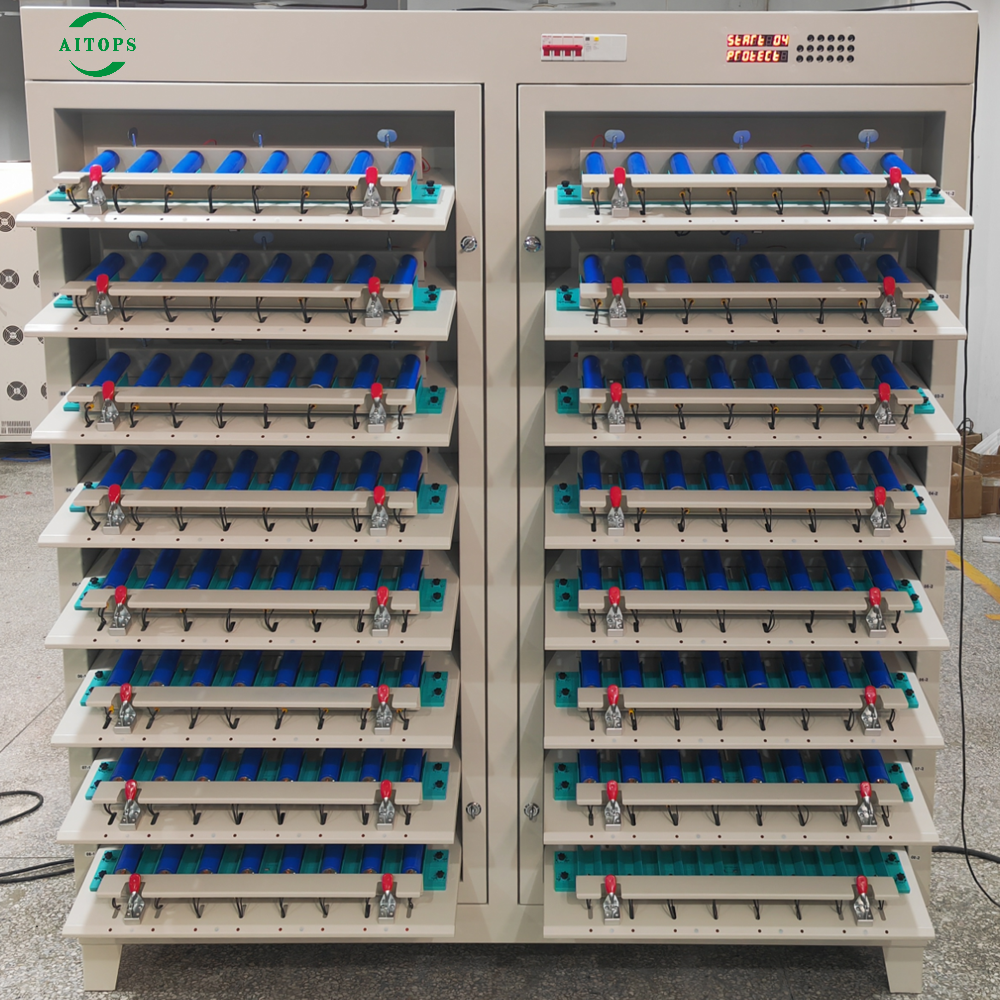

AITOP 5v6a Energy Regeneration 18650 Cycler Tester 32140 Battery Capacity Tester 512ch 5V Adjustable for Cylindrical Cells​ Battery Capacity Tester

Performance characteristics

Features:

1. Each device can carry out constant current and constant voltage charging and constant current discharge test on 512 batteries meeting the voltage range.

2. Adopt the constant current constant voltage power supply of the invention patent, constant current to constant voltage switching without impact, especially suitable for the charging requirements of lithium-ion battery.

3. The AVR single-chip computer is used as the control center of the equipment, and the peripheral sampling circuit is used. The equipment can be controlled by the superior computer. When the computer is connected, the complete charge discharge curve of all channels can be saved, or it can be separated from the superior computer. Through the operation of the control panel, the constant current and voltage charging, constant current discharge test, time sorting and other work can be completed.

4. Each battery has an independent constant current and voltage source, and the self-made circuit does not affect each other.

5. Detect the voltage of each battery in real time. When charging, charge at constant current first. When the battery voltage reaches the set value, it will smoothly switch to constant voltage charging. When the set time or current termination conditions are met, the charging will end. During constant current discharge, when the battery voltage is lower than the set value, the discharge is ended and the corresponding battery indicator light is on.

6. It has the function of power-off protection, and can continue to operate after receiving the original workflow

7. The power tube is 50N06, which is suitable for batteries requiring low discharge voltage, such as lithium iron phosphate battery

8. The upper computer can set 32 working step parameters and 256 cycles, and each upper computer can be connected with 1-10 sets of single-chip system (less than 10 sets are recommended).

Supporting Software Functions:

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;

Main Technical Parameters

1. MN-EF512-3K Battery Capacity Tester for 18.21.26.32700 Cells
• Keywords: Battery Tester, Capacity Testing, 18.21.26.32700 Cells
2. MN-EF512-6K Battery Capacity Tester for 18.21.26.32700 Cells
• Keywords: Battery Tester, Capacity Testing, 18.21.26.32700 Cells
3. MN-EF256-30KY Battery Capacity Tester for 32135.34.38.40.46 Cells
• Keywords: Battery Tester, Capacity Testing, 32135.34.38.40.46 Cells
4. MN-EF256-10KY Battery Capacity Tester for 32135.34.38.40.46 Cells
• Keywords: Battery Tester, Capacity Testing, 32135.34.38.40.46 Cells
5. MN-EF512-3KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
• Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
6. MN-EF512-6KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
• Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
7. MN-EF512-10KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
• Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
8. MN-EF32-120K Battery Capacity Tester for Square Alkaline Batteries
• Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
9. MN-EF128-30D Battery Capacity Tester for Square Alkaline Batteries
• Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
10. MN-EF64-60D Battery Capacity Tester for Square Alkaline Batteries
• Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
11. MN-EF512-3K Battery Capacity Tester for 512ch.5v3a Cells
• Keywords: Battery Tester, Capacity Testing, 512ch.5v3a Cells
12. MN-EF512-6K Battery Capacity Tester for 512ch.5v6a Cells
• Keywords: Battery Tester, Capacity Testing, 512ch.5v6a Cells

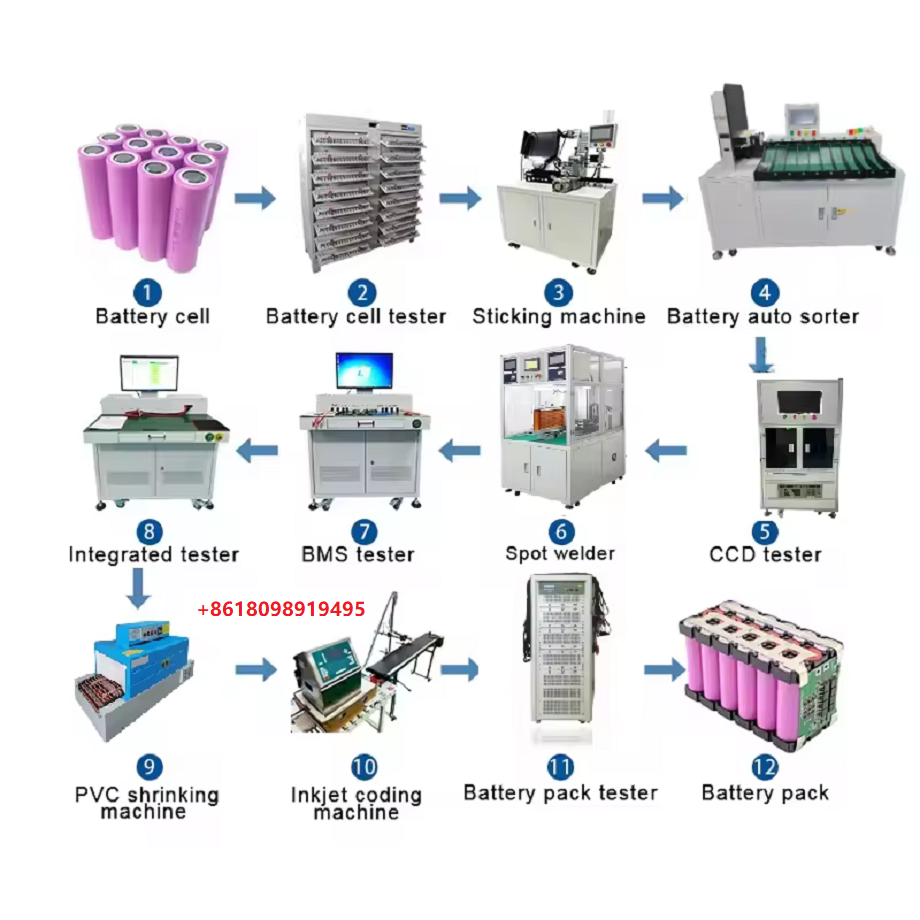

We provide all kind of lithium battery pack assembly machines and solutions with good quality and services.

Our products including:

1.IR tester

2.Capacity tester for cylindrical &prismatic&polymer cells

3.BMS tester

4.Sorting machine for common use

5.Insulation paper sticker machine

6.Manual spot welding machine

7.Automatic spot welding machine

8.Battery pack integrated tester

9.Battery pack charging discharging aging machine

10.PVC shrinking machine

11. Nickel plate&PVC cutting machine

12.Laser welding machine

13.Wire bonding machine and etc.

All of our products are good price.

If you have any interesting,please feel free to contact with us
