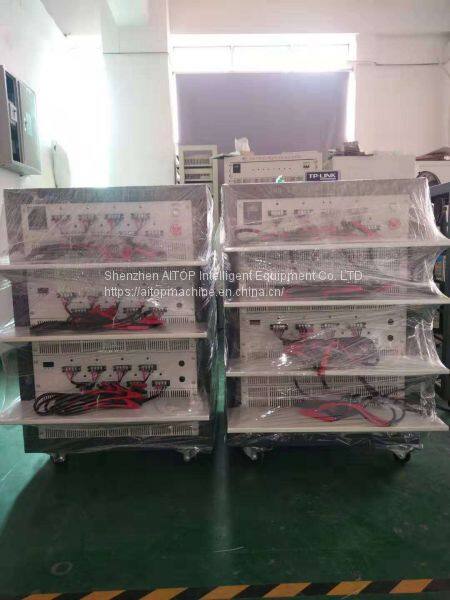

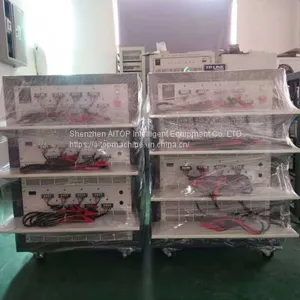

TOP Capacity Tester 8 Channels 5V100A Battery charging&Discharging Analyzer

Name: TOP Capacity Tester 8 Channels 5V100A Battery charging&Discharging Analyzer
Brand: TOP&TWSL
Availability: InStock

FOB Price

US$ 8000 - 32000 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

TOP&TWSL

Model Number

TOP-0805100

Product Description

Product Description

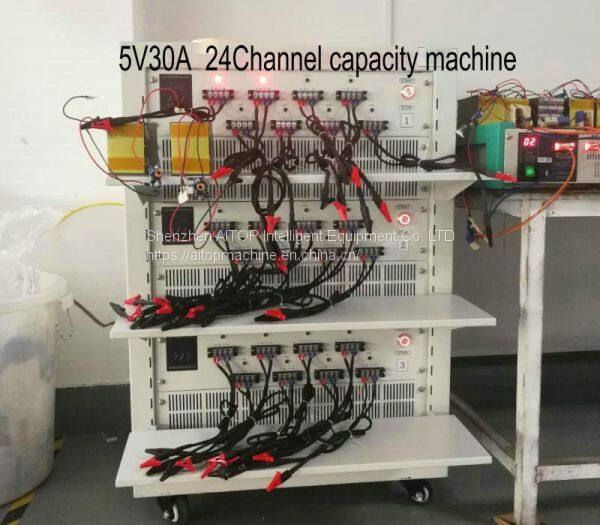

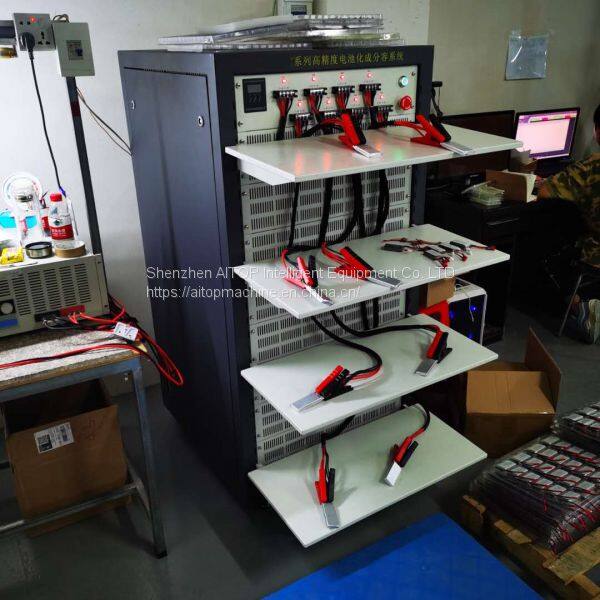

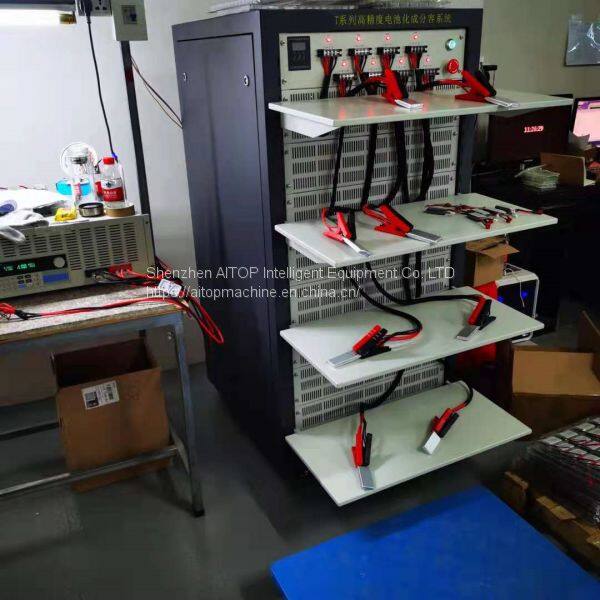

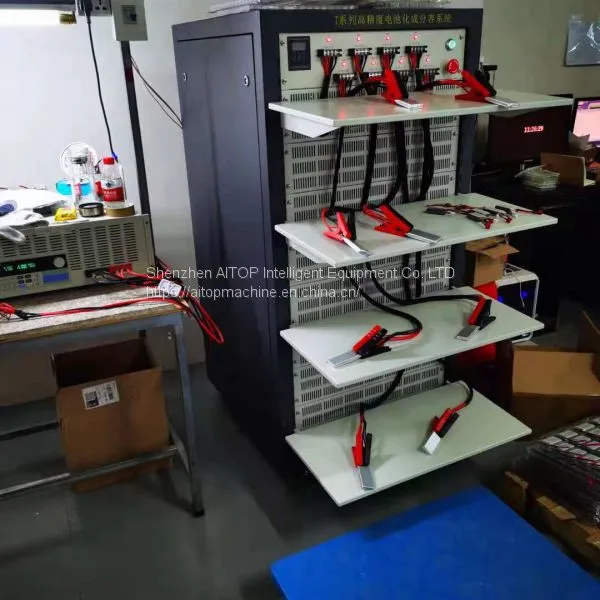

Battery Analyzer Capacity Tester

TOP-C08 Channels 32650/18650 Battery 5V100A charging&Discharging Analyzer cells Capacity Tester

Performance characteristics

full charge and discharge curve of all channels, and can also be separated from the upper

computer and complete the operation through the control panel. Constant current constant voltage

charge, constant current discharge test, time sorting and other work.ETC

Number of device channels	8 channels (full screen control)
Sampling inspection interval	≤8 seconds / week
Constant current range	0.05 ~ 2A/3A/5A/100A, resolution 1mA
Current measurement accuracy	± 0.1% FS
Sampling current accuracy	± 0.1% FS
Voltage measurement range	0 ~ 5V, resolution 1mV
Voltage measurement accuracy	± 0.1% FS
Charge and discharge voltage range:	0 ~ 4.5V, Discharging: 4.5 ~ 2V
Constant voltage setting range	3 ~ 5V
Constant voltage setting accuracy	± 0.1% FS
Time range	0 ~ 30000 minutes / step, accuracy: ± 0.1%
Cooling method	Air fan
Fixture form:	Quick clamper
Working condition:	0 ~ 40 ºC, Hum. ≤85%
Dimensions Manual:	1430 Wx 500 L x 1840mm H
Power supply	AC380V 50HZ
Power consumption	18KW Max

Techinical Parameters:

SPECIFICATION
Model		TOP-500
Power Supply		AC 220V, 50Hz
Power		200w
Efficiency		4000 pcs/h
Cells applied		18650 battery cells
Programming interface		LCD screen

WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.

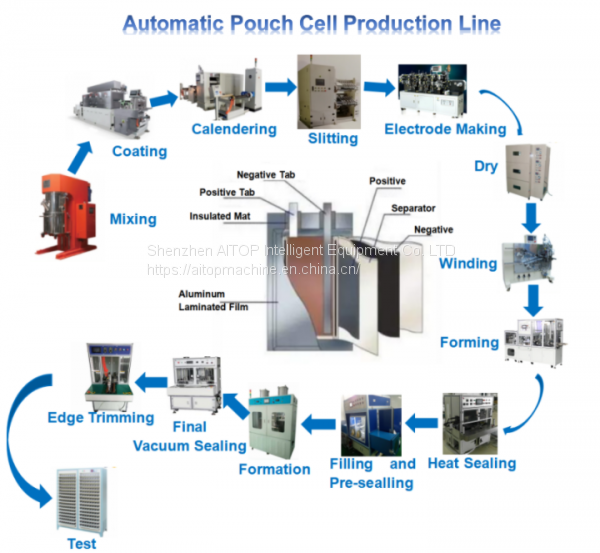

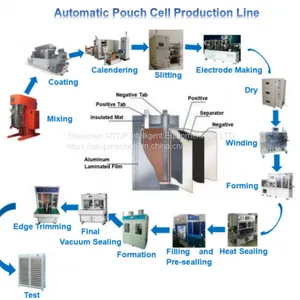

We can provide you a perfect solution for power battery packs production!Such as attached Solutions.

we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.

Contact us :

Shenzhen AITOP Intelligent Equipment Co. LTD

Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/

008618098989643/+8618820281861

Email:sales(@)

Packing and shipping

*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days

Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
