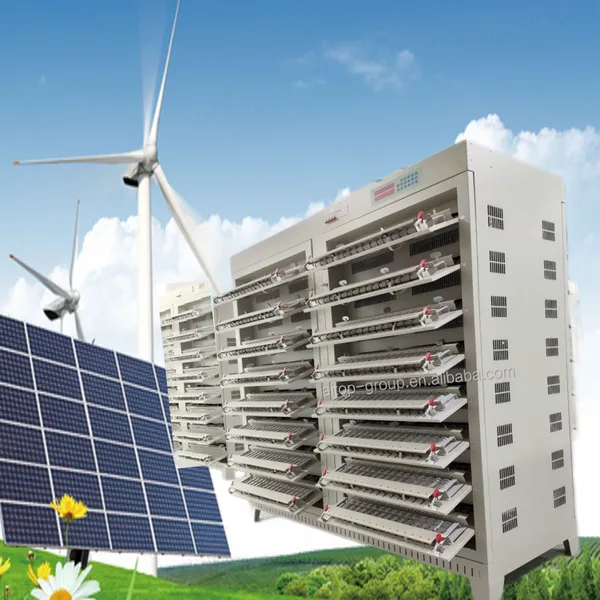

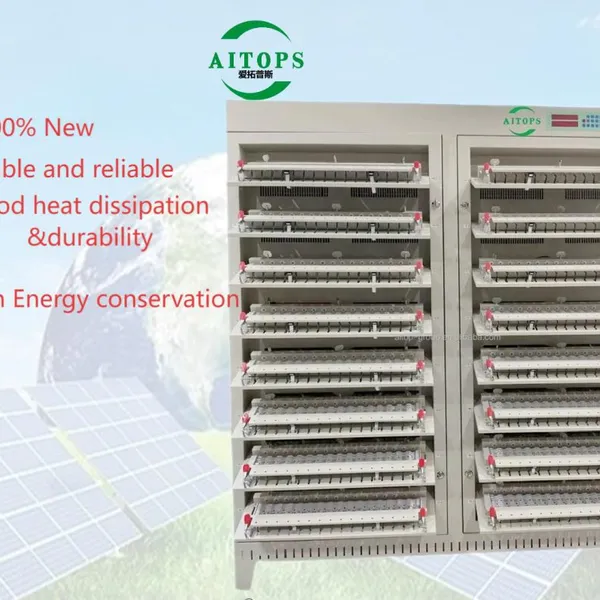

AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line

Shenzhen AITOP Intelligent Equipment Co. LTD
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line thumbnail-1
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line thumbnail-2
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line thumbnail-3
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line thumbnail-4
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line thumbnail-5
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line photo-1
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line photo-2
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line photo-3
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line photo-4
AITOP 512 Channels 5v 3a 5a 6a 10a Lithium Cylindrical Battery Capacity Tester For Industrial Machinery & Battery Production Line photo-5
US$ 2000 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
AITOP
Place of Origin:
China
Model Number:
512ch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AITOP
Place of Origin China
Model Number 512ch
Voltage 380V OPTION 220V
Capacity 5V3A PTION 5A6A10A20A
Name AITOP 512 CH Battery cells capacity test
Application 18650~32650 OPTION 33140 Cells
Product Description

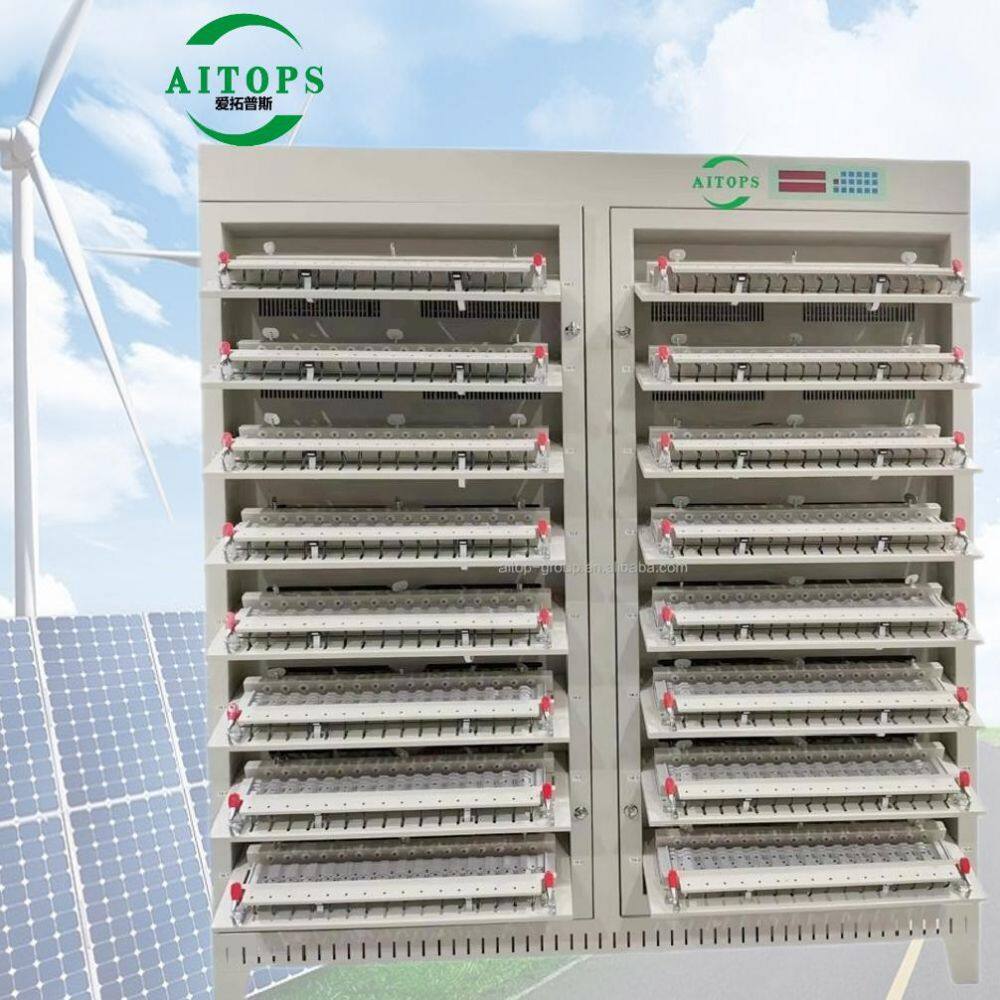

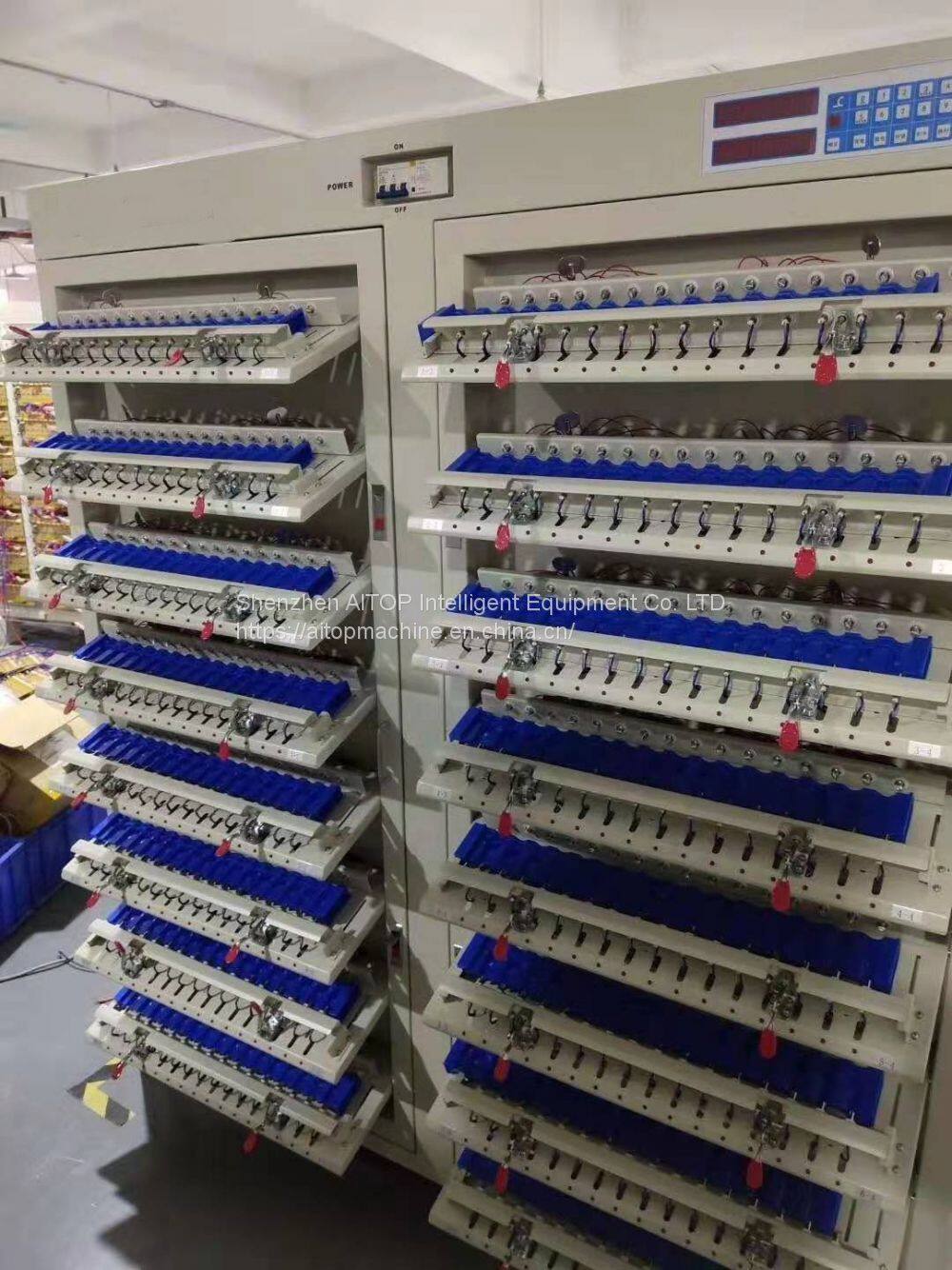

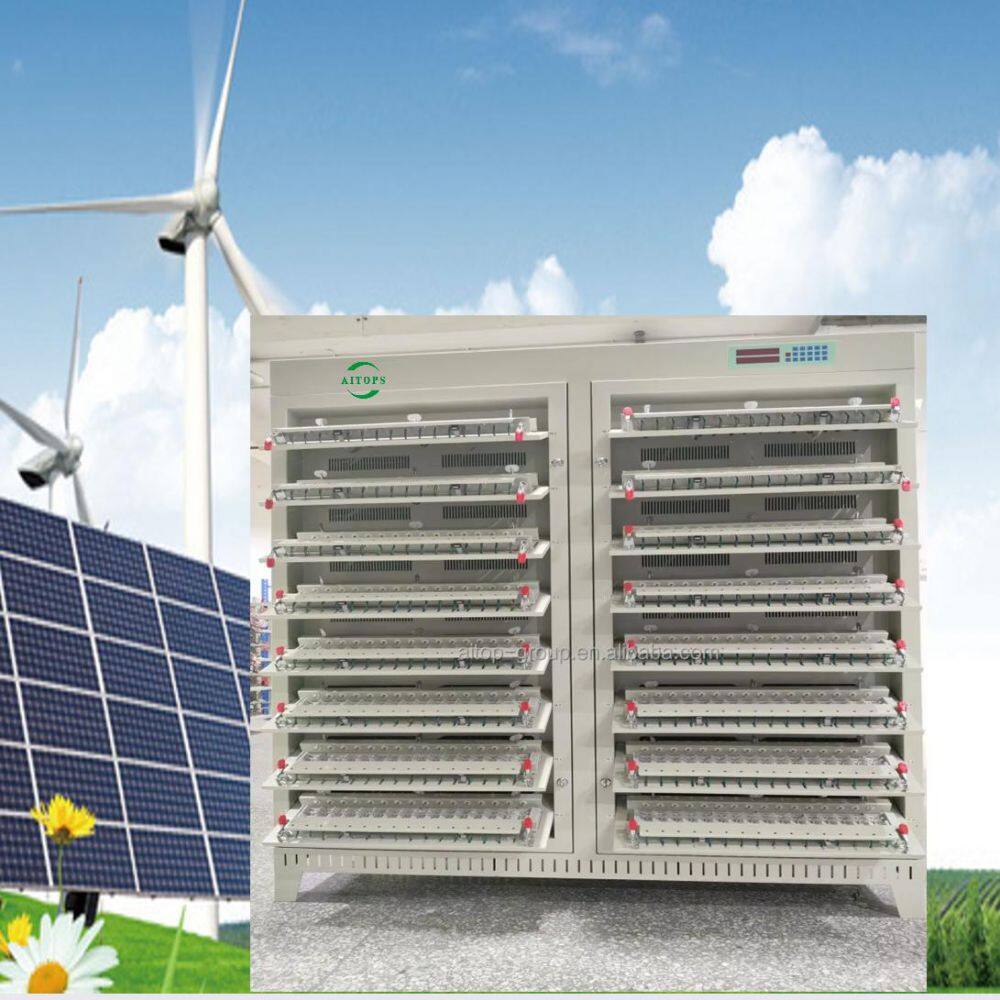

The AITOP 512 5V3A Battery cells charge discharge capacity tester is a special programmable device used to test battery performance. Through AITOP this device, the battery charging and discharging voltage and current can be set, and the battery constant current charging and discharging can be carried out according to the set charging and discharging parameters. In addition, it can also perform battery grouping and capacity verification according to the capacity, and charge and discharge the battery according to the set number of cycles. These features help to quickly and accurately evaluate the capacity and performance of the battery, thereby helping users choose the right battery product or optimize the battery design. At the same time, the divider can also determine whether the battery needs to be replaced to improve the efficiency and life of the battery. In the field of battery production, research and development, and battery recycling step utilization, the container has been widely used.



Main performance of the equipment
1. AITOP Each device can perform constant current and constant voltage charging
and constant current discharge tests on 512 batteries that meet the voltage
range.
2. It adopts the invention patented constant current-constant voltage power
supply, which has no impact when switching from constant current to
constant voltage, which is especially suitable for the charging requirements
of lithium-ion batteries.
3. The AITOP equipment adopts an AVR single-chip computer as the control center,
and cooperates with the peripheral sampling circuit, which can be controlled
by the upper-level computer. When connected to the computer, the
complete charge and discharge curves of all channels can be saved, or it
can be separated from the upper-level computer and operated through the
control panel. Constant current and constant voltage charging, constant
current discharge test, sorting by time, etc.
4. Each battery completely has an independent constant current and
constant voltage source, which is self-contained and does not affect each
other.
5. Real-time detection of each battery voltage, when charging, first constant
current charging, when the battery voltage reaches the set value, it will
smoothly switch to constant voltage charging, when the set time or current
termination conditions are met, the charging ends. In constant current
discharge, when the battery voltage is lower than the set value, the
discharge ends and the corresponding battery indicator lights up.
6. With power failure protection function, it can continue to run after the
original work flow is connected.
7. The power tube adopts 50N06, which is suitable for batteries that require
lower discharge voltage, such as lithium iron phosphate batteries.
8. The upper computer can set 32 step parameters and 256 cycles, and
each upper computer can be connected to 1-20 sets of single-chip systems
(recommended less than 10 sets).
9. Supporting software functions.
a) Graphical operation interface is used to display the voltage, current, time,
capacity and other data of each battery, and the corresponding working
status and abnormal conditions are displayed in various colors;
b) Any segment battery capacity indication (up to 100 segments);
c) The data points can be recorded according to the changing conditions of
voltage, current, and time to form a complete charging and discharging
curve data. The time interval of the curve data points is less than 4 seconds
d) Various conditions (capacity, time, open circuit voltage, discharge
platform, etc.) for battery sorting function;
e) Automatic calculation of constant current charging ratio, capacity loss,
discharge efficiency, average voltage, median voltage and other data;
f) Operator authority setting, hierarchical operation;
g) It can display charge and discharge curve diagram and cycle diagram;
This machine have 3A/5A/6A for optional.
Please check table below specification of the machines.
SPECIFICATIONS
   Model
AITOP-512/3
AITOP-512/5/6
Channels Number
512 channels
 512 channels
Production capacity
512 cells/hour
 512 cells/hour
Constant current range
0-3A
 0-5A/6A
Application
18650/21700/26650/32650/32700/32140 all cylindrical cells
Power supply
AC380V/50/60HZ
Equipment power
7.5KW/13KW
Control System
PLC/Computer
Current measurement
accuracy
  ±0.05%FS
Voltage measurement
range
0-5V
Function setting
Optional Quick Set Parameter Mode
Power supply
Three-phase four-wire system, AC380V±5%, 50HZ
Machine Size
1600L*600W*1840Hmm

Machine Weight
400kg

Operation:

1. Setting the parameters of cells on the computer.
2. Put the cells into the material fixtures.
3. Press the start button, it automatically complete all testing and grading actions.

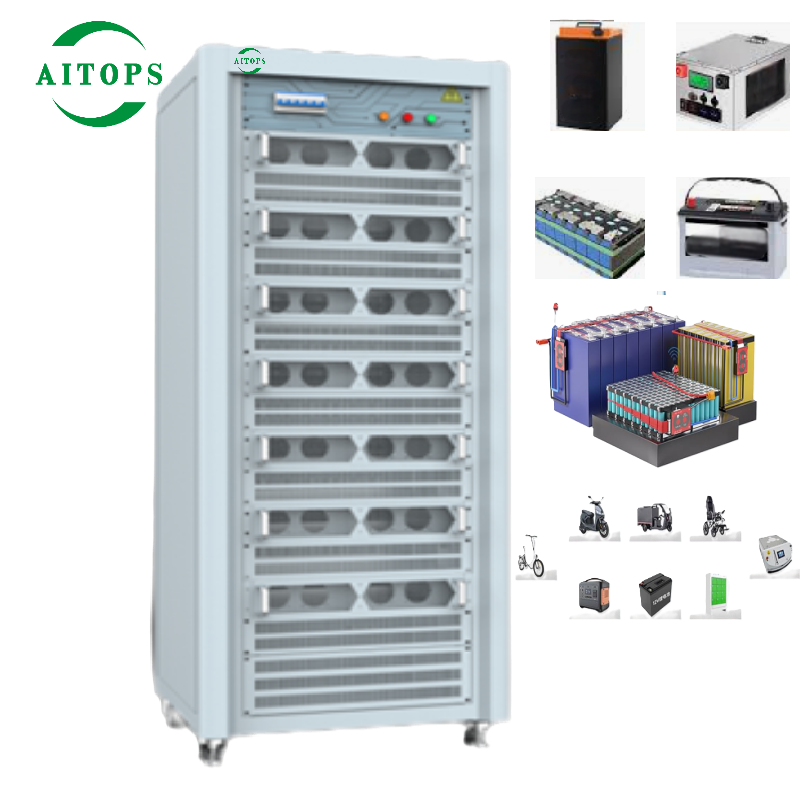

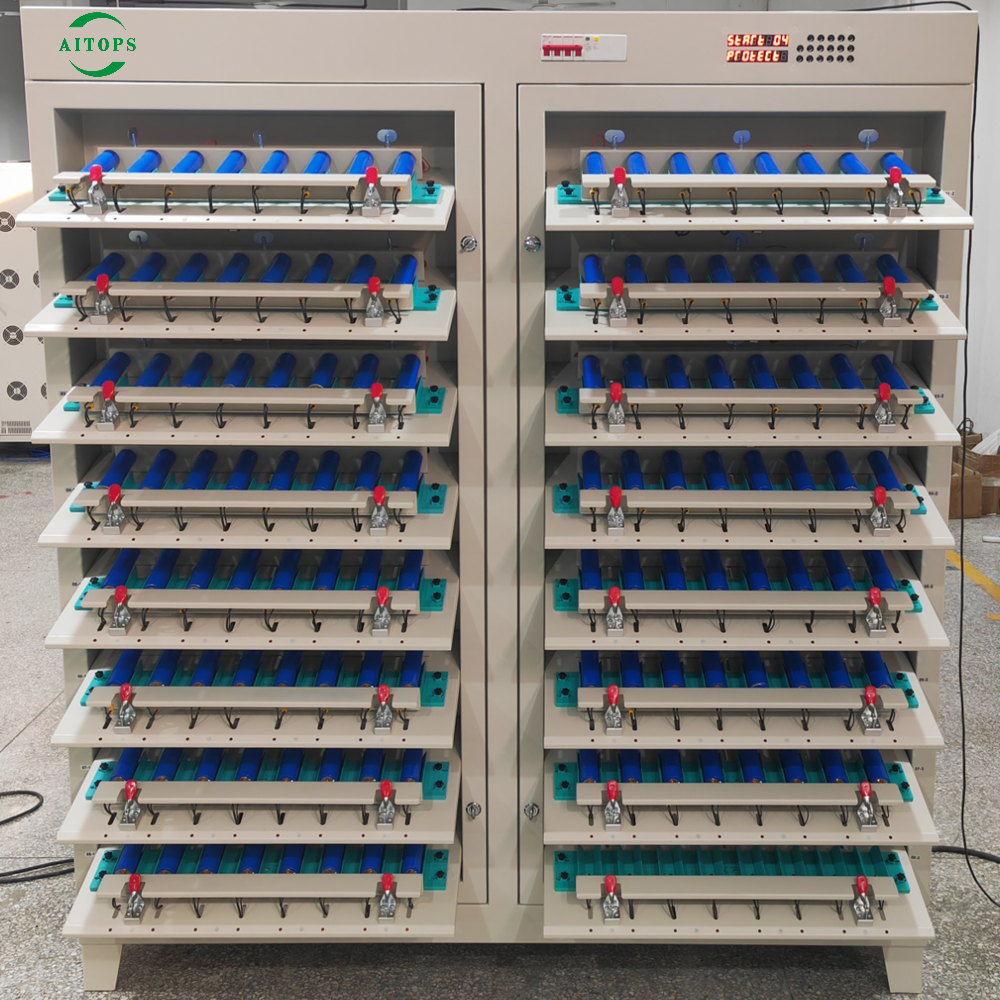

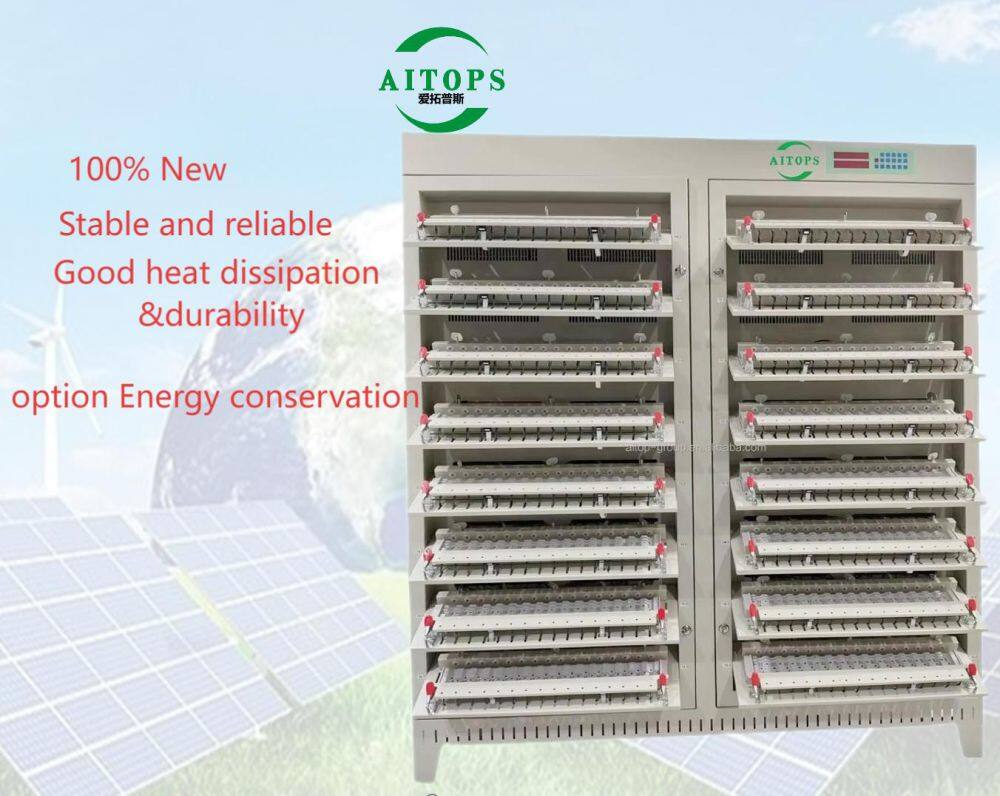

详情1tester 2 zhututester1主5v10a 256ch 33140 4680 218650 capacity testerCE 4个分容分选，老化1710381618796 - 副本主图4 Battery aging tester266b52e2af01fcbffe61dae2f12969f1 - 副本展会图(1)2 - 副本合作客户1

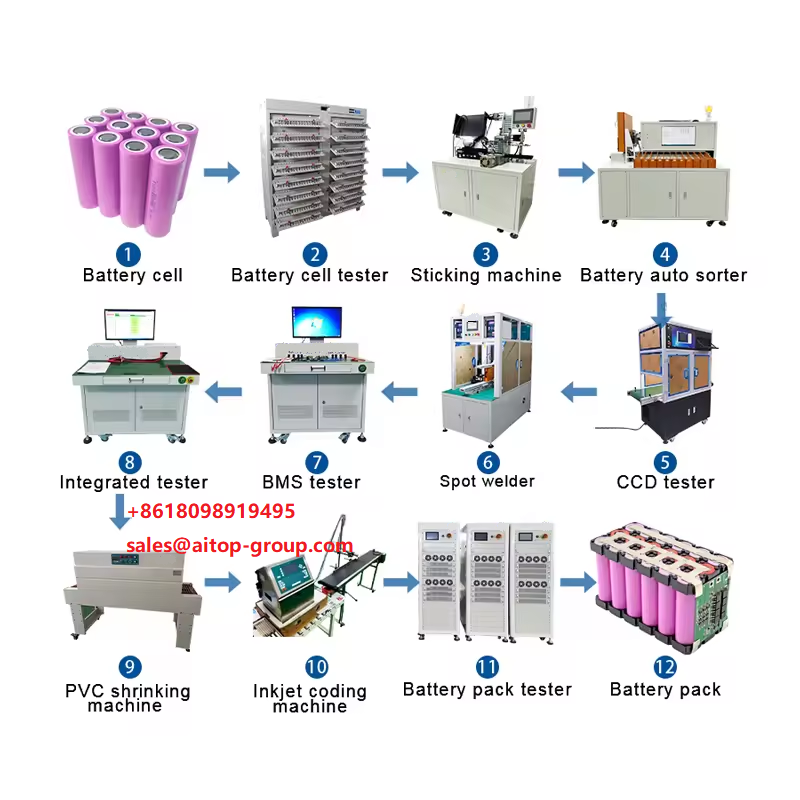

 Shenzhen Aitop Intelligent Equipment Co.,Ltd products including:

1. IR tester

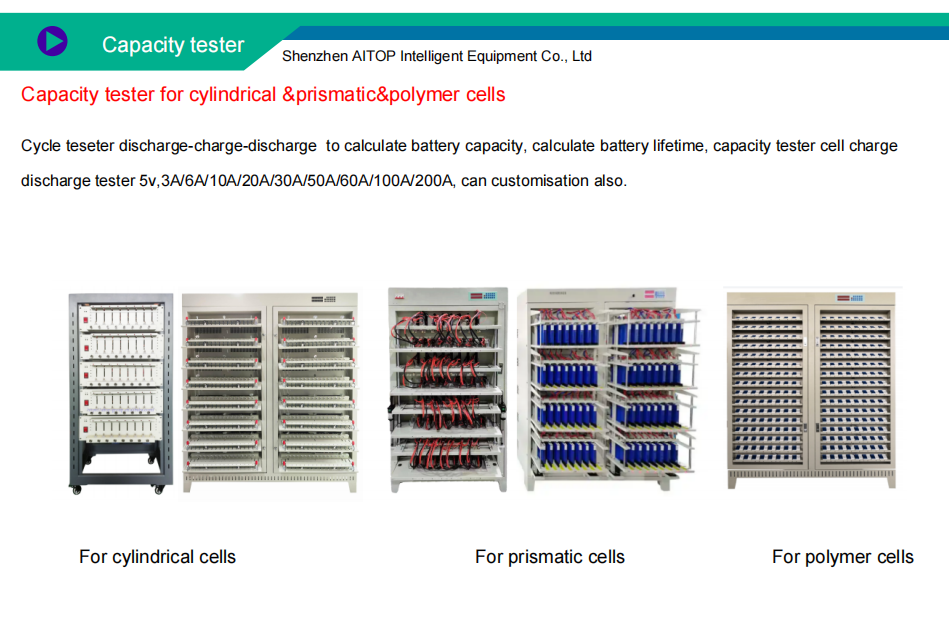

2. Capacity tester for cylindrical &prismatic&polymer cells

capacity tester & Formation test clyindrical battery charge and discharge one machine can do testing for 18650.21700.32650.26650.32135.33140 these can common use

3. BMS tester 16 series 20s 24s 32s,48Series

4. Sorting machine for common use

5. Insulation paper sticker machine

6. Manual spot welding machine

7. Automatic spot welding machine

8. Battery pack charging discharging aging machine

,battery pack function tester

9.PVC shrinking machine

10. Nickel plate&PVC cutting machine

11.Laser welding machine

12.Wire bonding machine and etc, It's good time for Energy storage battery project start!! Built you dream，new energy light up the world！！ AITOP machines Support For the first installation training, india local engineers can be arranged for on-site service in india,

The machine has a one-year warranty and free online maintenance for life.

any requirements there pls feel free to contact us by email:sales@aitop-group.com
