Automatic spot welding machine for UAV Drone Battery Pack Assembly Line 、UAV Unmanned Aerial Vehicle Drone Battery Pack Assembly Line This UAV (Unmanned Aerial Vehicle) drone battery pack assembly line is specifically designed for the manufacturing of battery packs used in drones or unmanned aerial vehicles. Lithium battery pack assembly line is widely used in power tools, smart homes, electric vehicles, photovoltaic energy storage, intelligent lighting, mobile power, small appliances and new energy vehicles.
Pneumatic AC Spot Welding Machine Customize 32140 33140 Battery Pack Assembly Equipments
(Single Welding Point or Double Welding Point)
AC Pedal Manual Spot Welding Machine
Automatic Spot Welding Machine
Single Side Automatic Spot Welding Machine
Double Sides Spot Welding Machine
Product Description
1. Lithium ion Battery Cell tester Battery Tester is mainly used to detect whether the parameters such as cell capacity, magnification and cycle times meet the use requirements.
2. Insulation Paper Sticking Machine The positive electrode of the battery is pasted with insulating highland barley paper to protect the battery.
3. 32140 Battery Sorting Machine The lithium battery sorter can be set to multiple gears through the upper and lower limits of internal resistance. The resistance is adjustable, and the adjustment mode is diversified and fast. It is equipped with imported voltage internal resistance tester, integrated PC, high-end drive, all electric motor configuration; Process detection signal comprehensive and bid farewell to a single industrial machine.
4. ccd visual inspection machine It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.

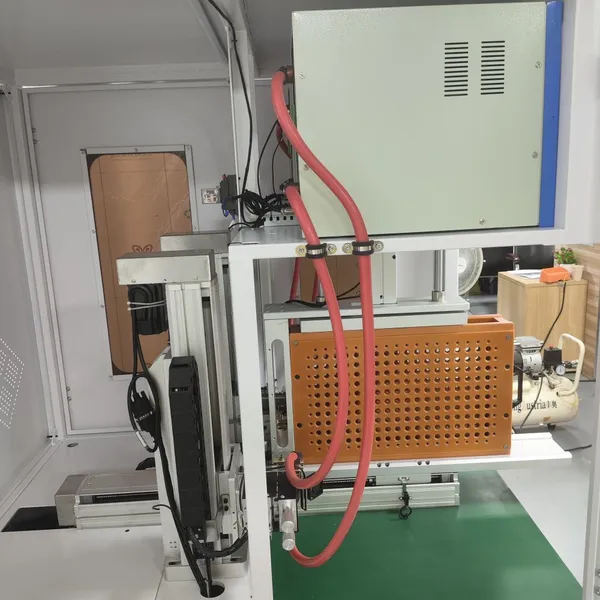

5. Transistor single side spot welder This equipment is mainly used for welding the battery and nickel strip in the cylindrical battery assembly. The welding pulse width is adjustable, the welding spatter is small, and the welding spot is not discolored. It has the function of two-stage current detection and comparison, sound and light alarm for abnormal current, effectively preventing the occurrence of false welding and false welding. It has the function of fault self diagnosis, displaying the corresponding fault points and facilitating maintenance.
6. BMS Tester The multifunctional protection board tester is mainly used to test whether the functional indexes of the power battery protection board are within the parameter range, so as to provide a set of testing standards for the staff.
7. Battery Integrated Tester The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over-current test, short circuit protection test, charging test and charging protection test.
8.Heat Shrink Wrap Machine PVC Heat Shrinking Machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration.
9. Expiry date and batch number printing machine It is sprayed on the outer surface of the battery with the information of the battery, including the manufacturer, model. Production date, voltage, capacity. Energy, production batch number, etc.
10. Battery pack charge discharge machine The aging cabinet is mainly used to test the charge and discharge cycles of finished lithium battery packs. Test items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process.
Which is the necessary materials and machine for assembly drone battery pack from AITOP group

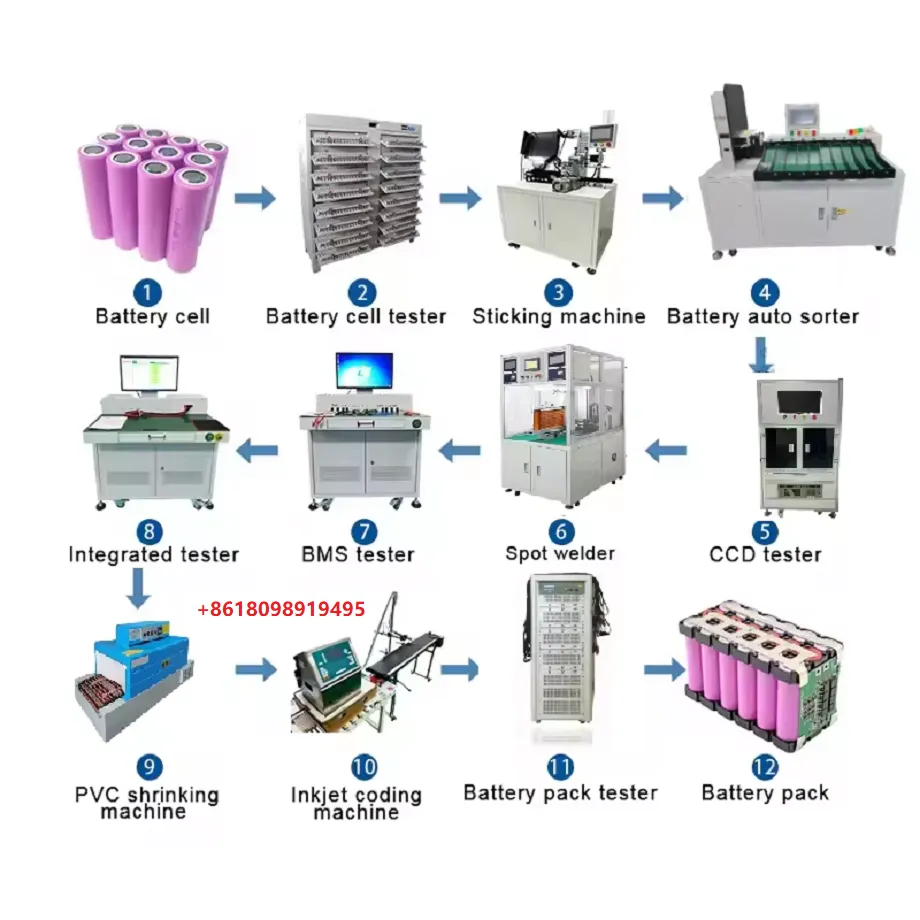

The main equipment of cylindrical lithium ion battery pack assembly line include battery formation and grading system, battery insulation paper sticking machine, battery sorter, CCD tester, battery pack spot welder, bms tester, comprehensive tester, heat shrink wrap machine, inkjet batch coding machine, battery pack tester.

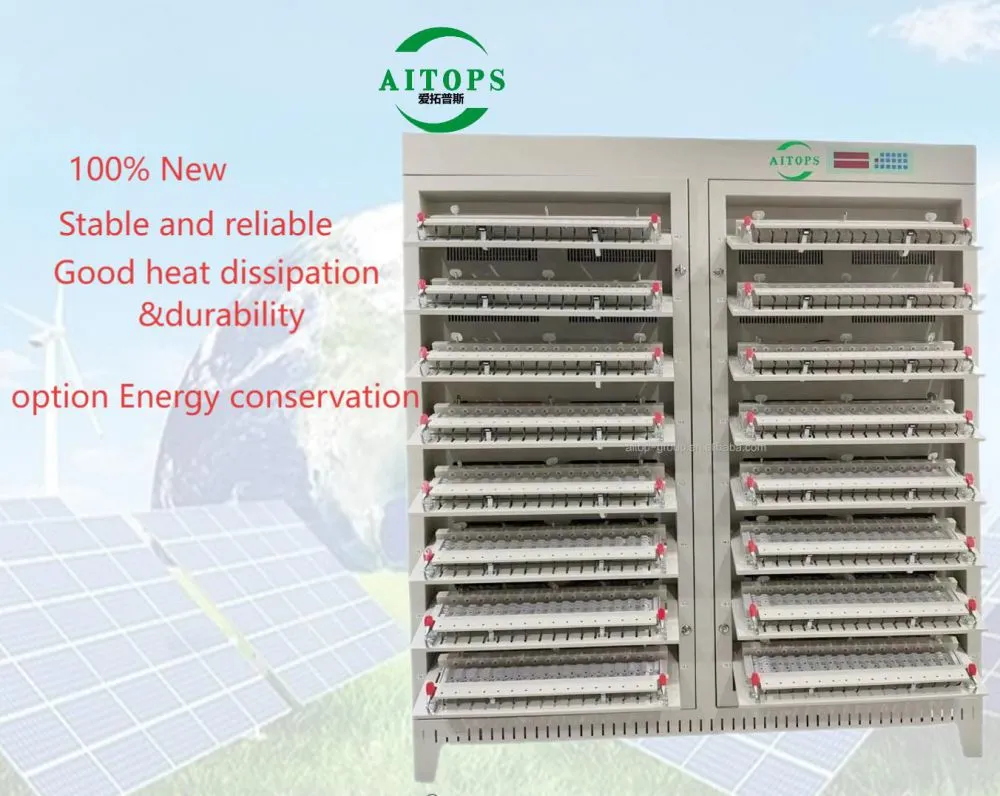

1. Lithium ion Battery Cell Tester
Battery Tester is mainly used to detect whether the parameters such as cell capacity, magnification and cycle times meet the use requirements.
2. Insulation Paper Sticking Machine
Applies insulating highland barley paper to the positive electrode of the battery, providing reliable protection.

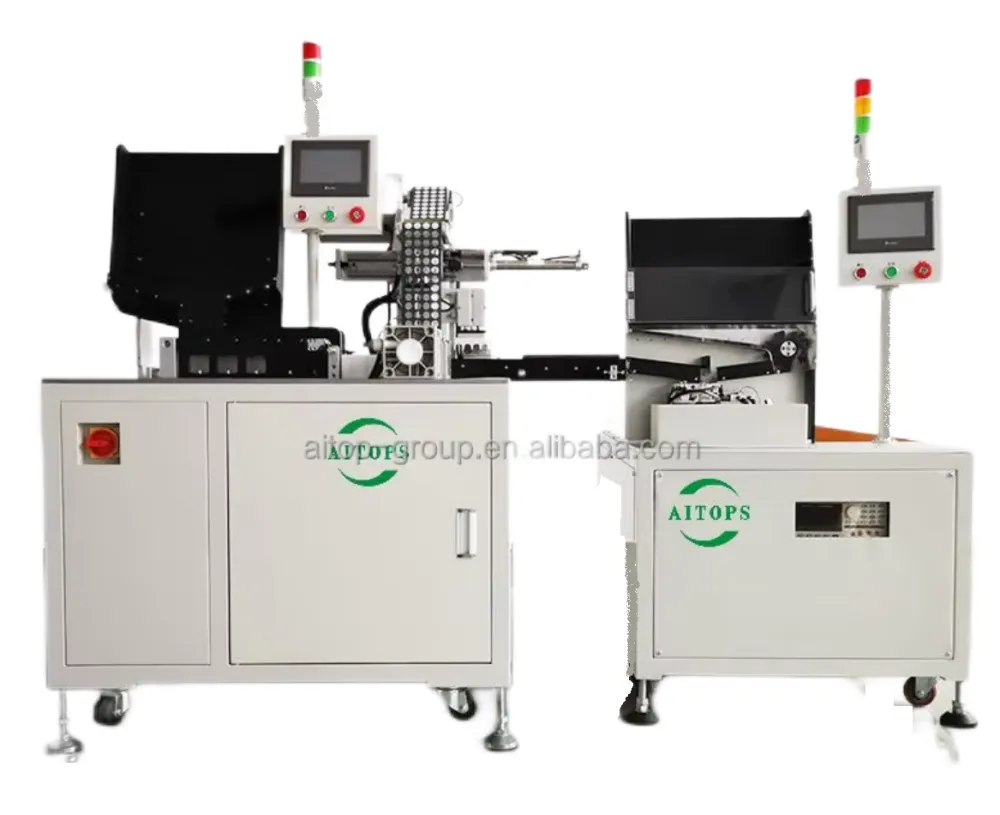

3. Battery Sorting Machine
Capable of multi-stage sorting based on adjustable internal resistance thresholds, with fast and versatile adjustment modes. Equipped with an imported voltage internal resistance tester, integrated PC, high-end drive system, and full-electric motor configuration. Supports comprehensive process signal detection, moving beyond conventional single-function industrial machines.
4. CCD Visual Inspection Machine
Delivers high efficiency and accuracy in inspecting battery orientation in series/parallel connections and identifying spot-welding defects.

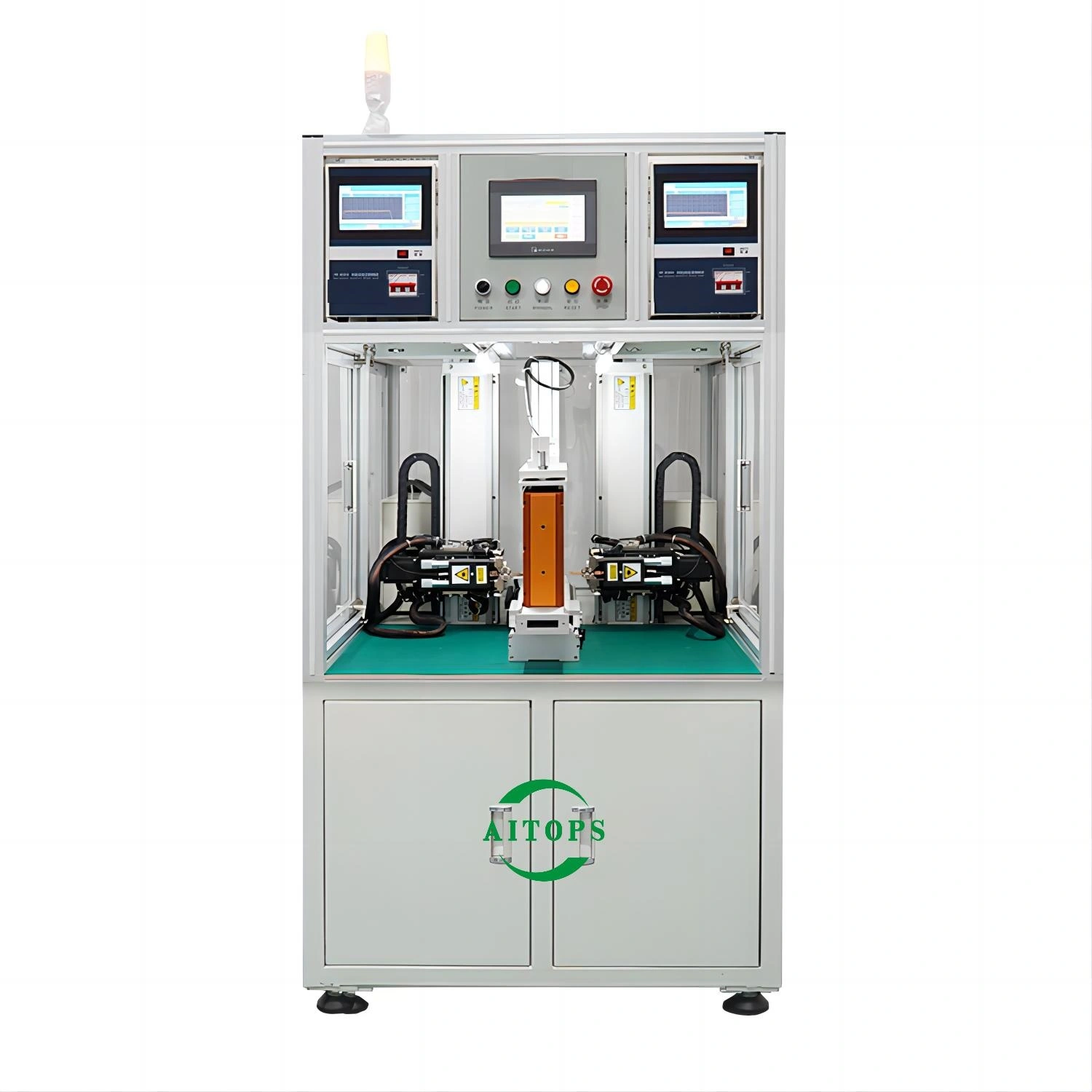

5. Spot Welding Machine
Primarily used for welding batteries and nickel strips in cylindrical battery assembly. Features adjustable pulse width, minimal spatter, and discoloration-free weld spots. Includes two-stage current detection and comparison, audible and visual alarms for abnormal current, effectively preventing false or poor welding. Also equipped with self-diagnostic functions that display fault points for easy maintenance.
6. BMS Tester
A multifunctional protection board tester designed to verify whether the functional parameters of power battery protection boards fall within specified ranges, providing a standardized testing reference for operators.
7. Battery Integrated Tester
Key test items include: open-circuit voltage, AC internal resistance, discharge test, discharge over-current test, short-circuit protection test, charge test, and charge protection test.

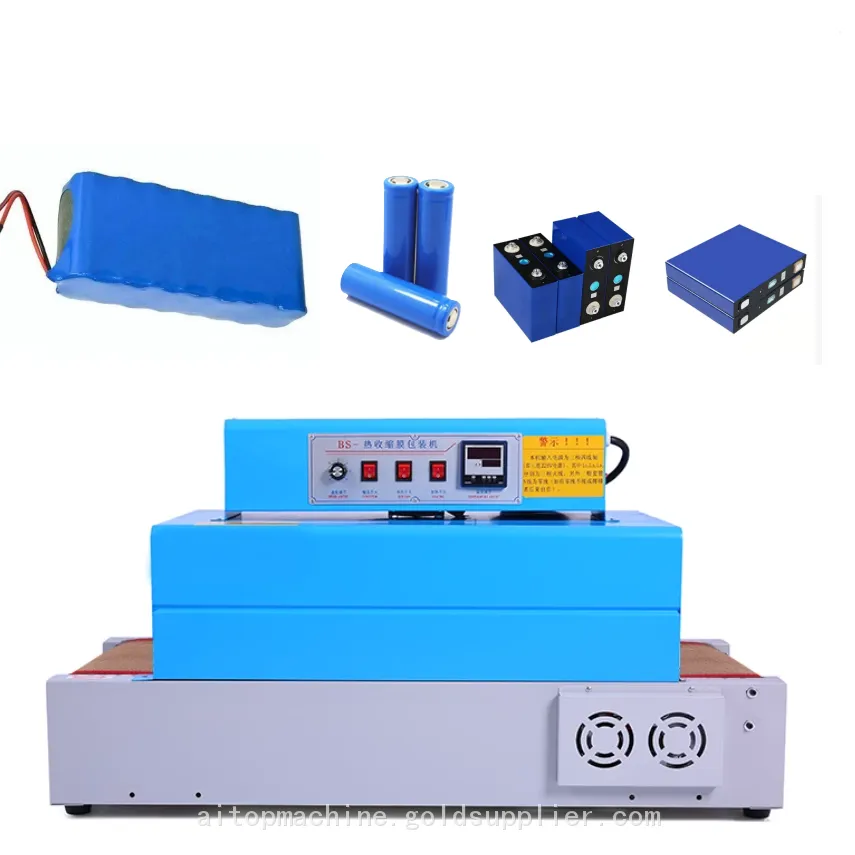

8.PVC Shrinking Machine /Heat Shrink Wrap Machine/
PVC Heat Shrinking Machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration.

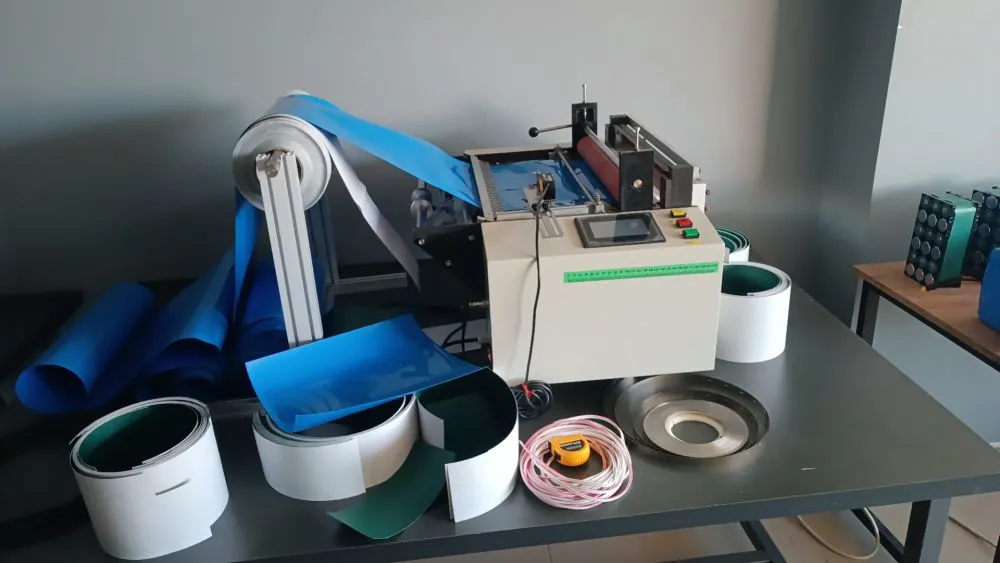

9. nickel cutter & pvc cutter & Insulation paper cutter, barley paper cutter, epoxy board Cutting machine
100m,200mm,300mm,400mm,600m, 800mm,1200mm withd
10. Battery Pack Charge Discharge Machine
The aging cabinet is mainly used to test the charge and discharge cycles of finished lithium battery packs. Test items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling.
Techinical Parameters:
| SPECIFICATION | |||
| Model | TOP-500 | ||
| Power Supply | AC 220V, 50Hz | ||
| Power | 200w | ||
| Efficiency | 4000 pcs/h | ||
| Cells applied | 18650 battery cells | ||
| Programming interface | LCD screen | ||
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
