Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing

Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing thumbnail-1
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing thumbnail-2
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing thumbnail-3
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing thumbnail-4
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing thumbnail-5
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing photo-1
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing photo-2
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing photo-3
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing photo-4
Aitop Cell Tester Energy Saving 5V 60A 64CH Prismatic, Pouch & Cylindrical With Cycle Testing photo-5
US$ 9900 - 100000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
AITOP
Model Number:
AITOP-5V60A
Contact Supplier Request Quote Chat Now
Shenzhen AITOP Intelligent Equipment Co. LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AITOP
Model Number AITOP-5V60A
Product Description

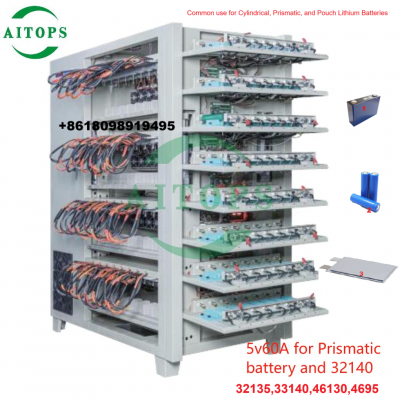

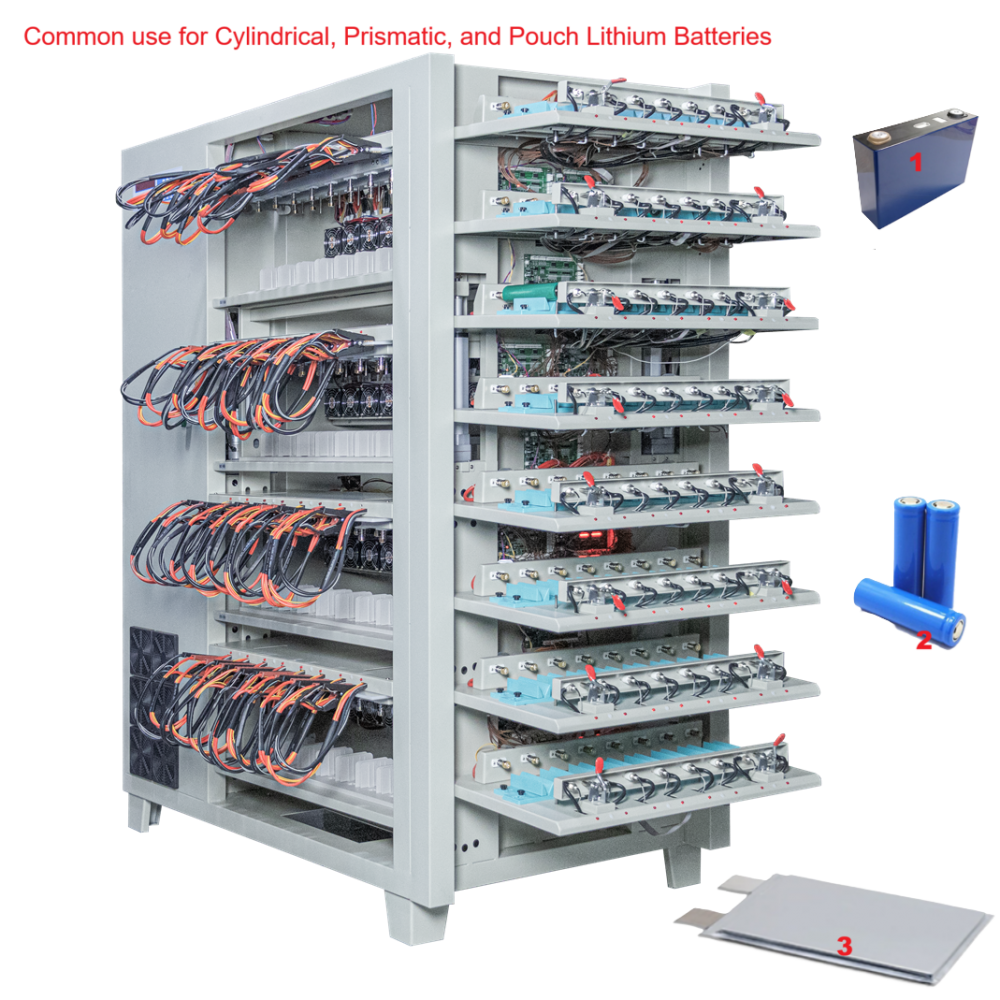

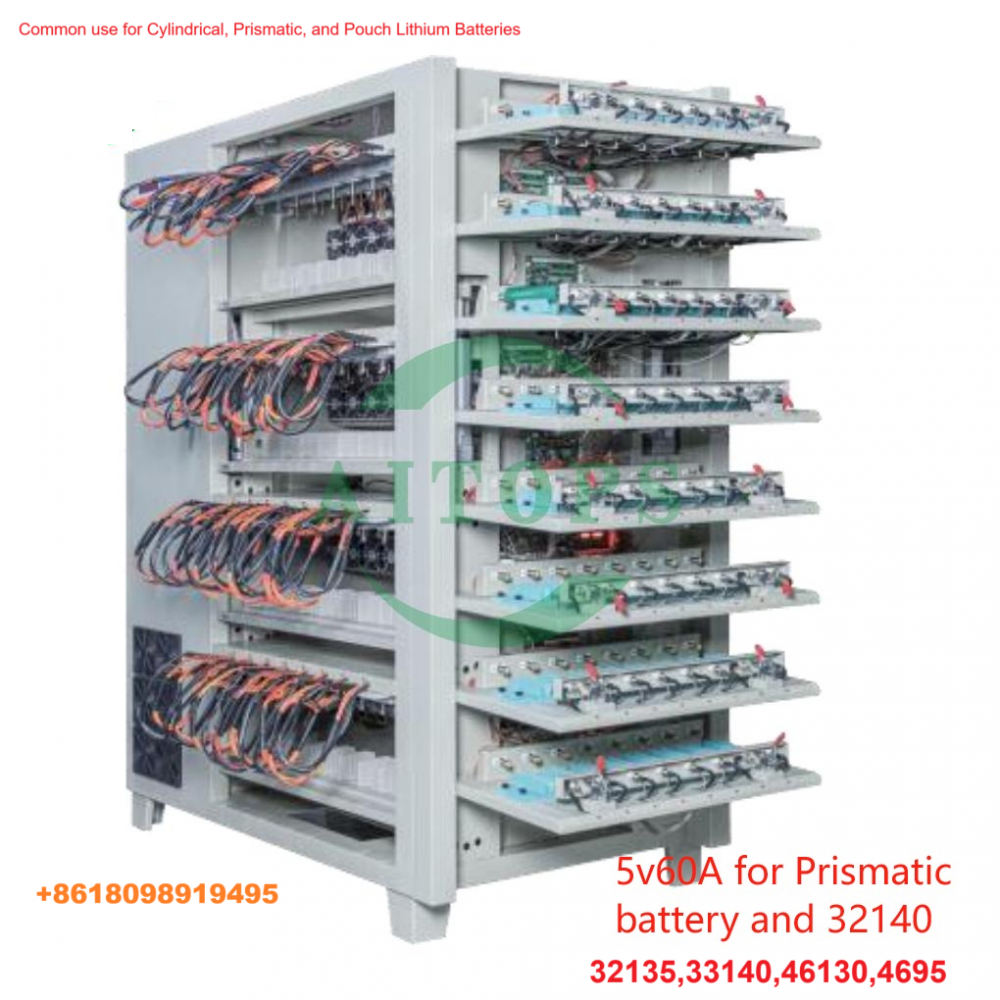

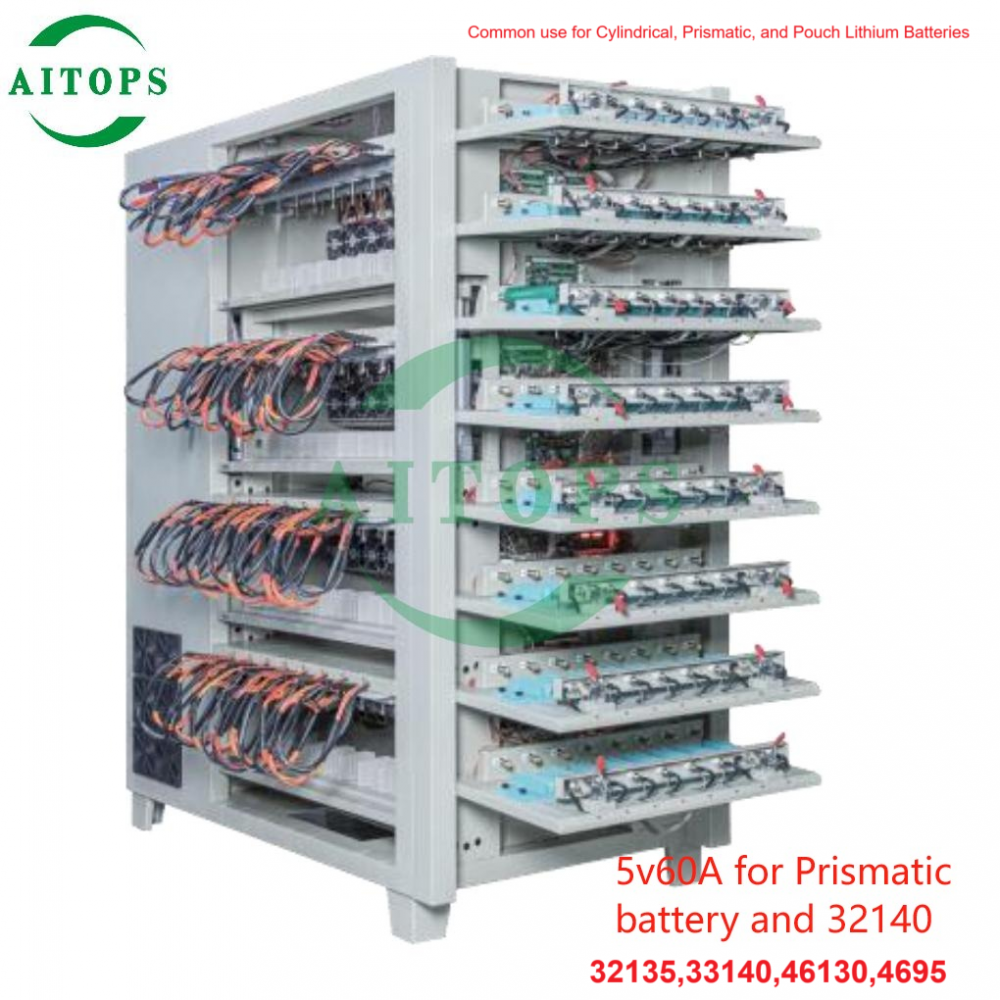

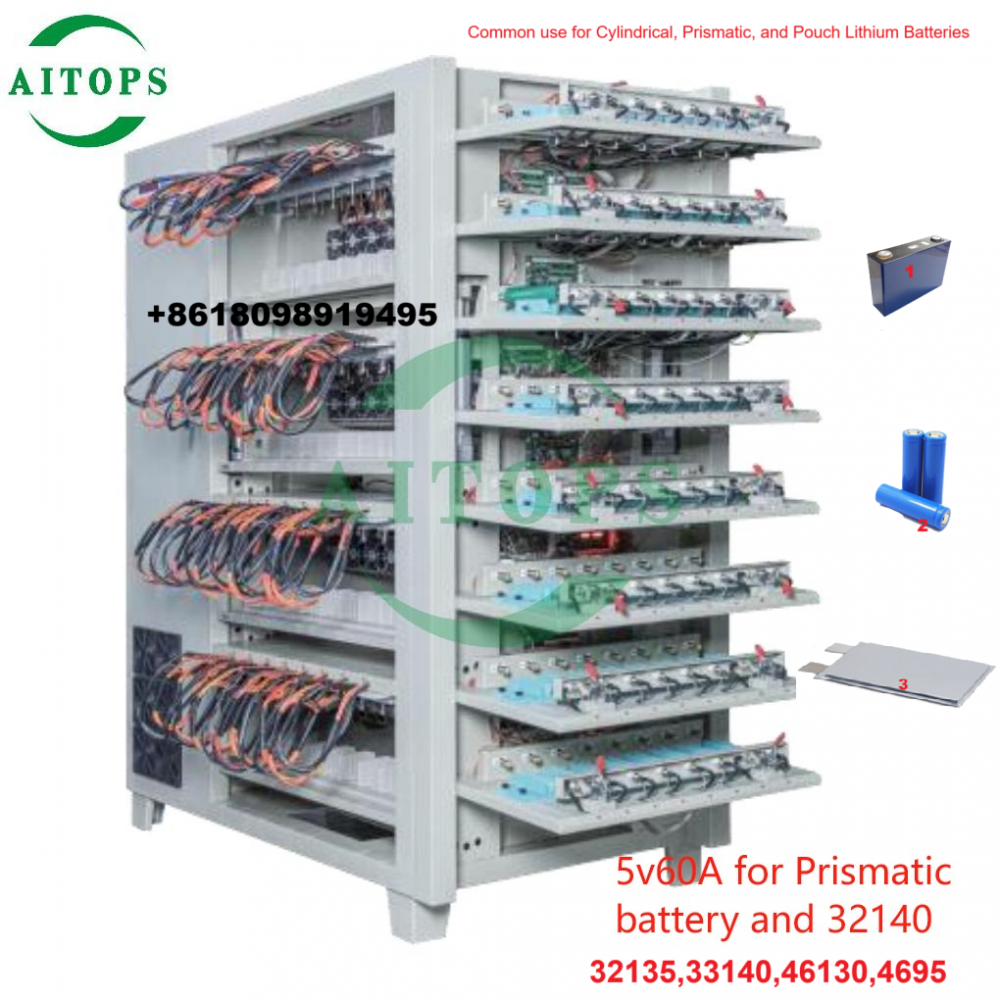

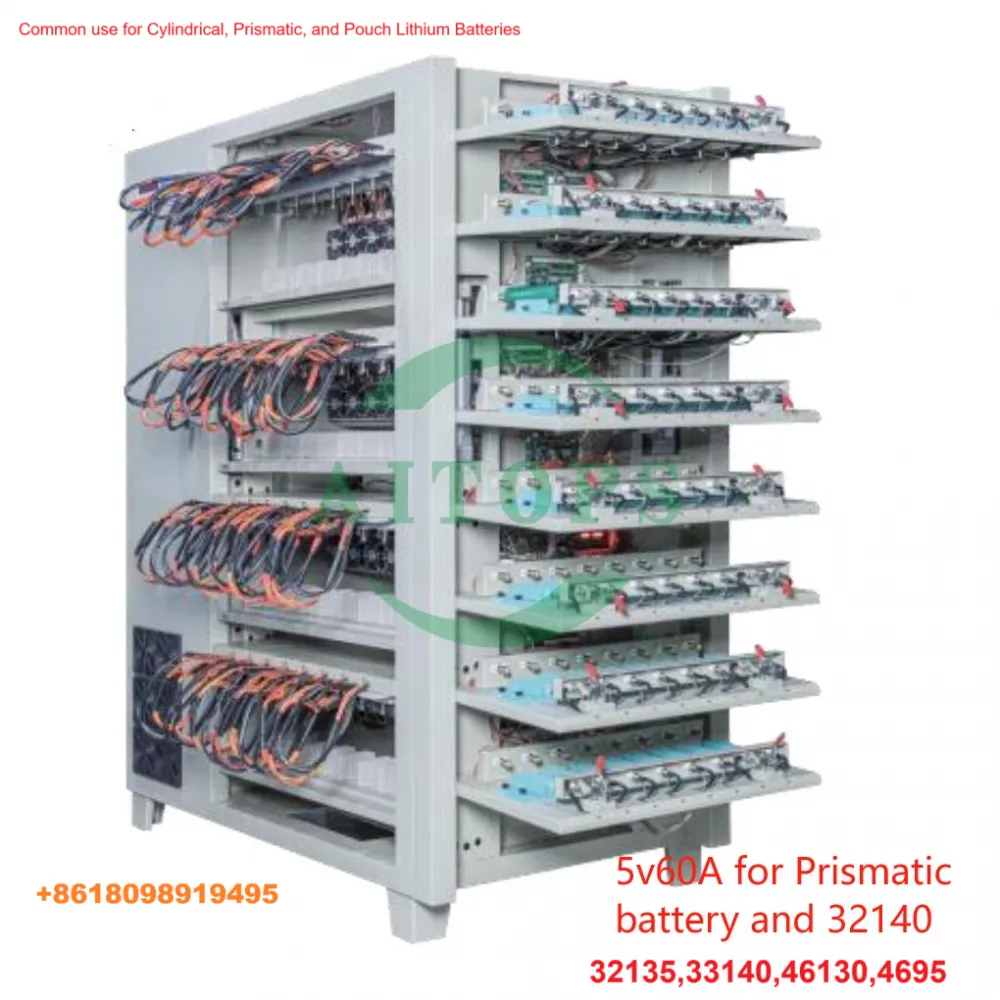

5V 60A 64CH (Prismatic, Pouch & Cylindrical OPTION Temperature) Prismatic Battery Cells Charging Discharging Life Cycle Testing

AITOP =8618098919495 - 副本17429858376161742985837616 - 副本 (2)AITOP =86180989194951742985837616 - 副本
Power Supply Three phase five wire AC380V,10%,50Hz
Accuracy +(0.05% reading +0.05% full degree)
This equipment is mainly for the battery formation/capacitance of the voltage, capacity and other parameters of the test, according to the test results of the battery Level classification and data analysis and uploading and sharing and other work.➢ Device features• Single point independence, independent constant current and constant voltage source, stable without shock. It can realize functions such as start, stop, pause, continue and protection.• The equipment is controlled by STM32 single-chip microcomputer and works by connecting to a computer. All test data and curves can be saved. It can also be directly operated through the equipment keyboard panel to set the process to complete the test and perform sorting.• Detect and display the status of each battery in real time. If there is any abnormality, the work of this channel will be stopped and the indicator light will be on

The test instrument can test the battery charge,discharge,short circuit protection,internal resistance,battery pressure drop,identification resistance,thermistor,capacity and so on,it takes only one second for the test

This tester can charge discharge and find life cycles of Cylindrical as well as Prismatic and Pouch Lithium Cells. The machine has 8 channels so 8 cells can be tested in isolation . Each channel has its own program .


Measuring range Range Resolving power accuracy
Voltage measurement 0-10V 10mV 10V±1%
Current measurement 0-2A 1mA 2A±2%
Internal resistance measurement 0-1000mΩ 1mΩ 100mΩ±2%
Capacity measurement 0-2000mAH 1mAH 2AH±2%
Resistance measurement 0.1-999.9KΩ 0.1KΩ 10KΩ±2%

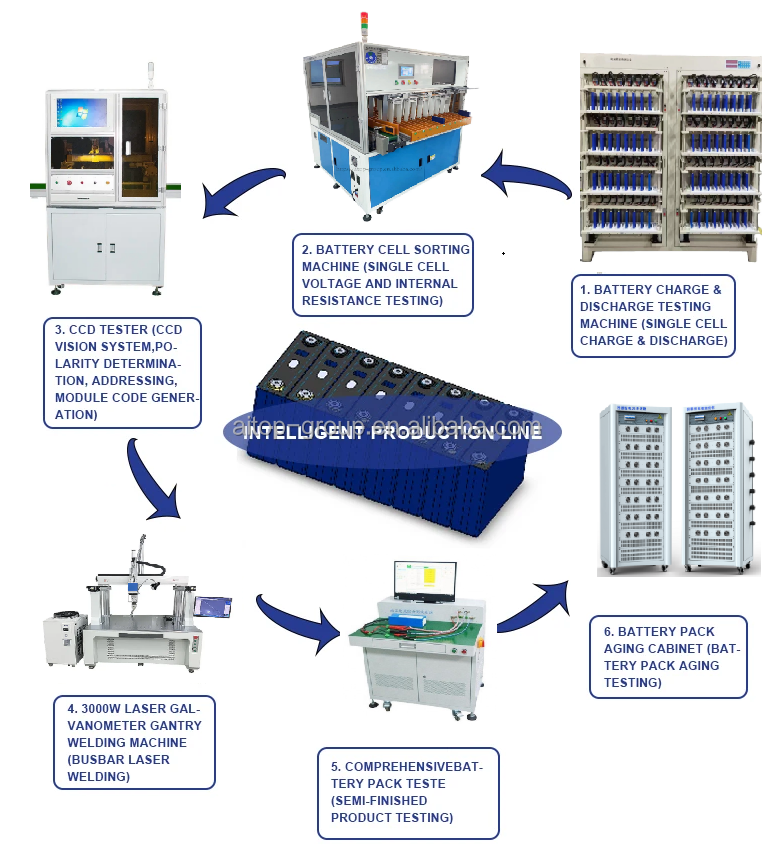

Cylindrical Battery Pack Assembly Machine

Item No.

Product Name

Description

1

Internal Resistance Tester

1. Voltage test V1: range : 0-4.999V

2. Voltage test V2: range : 0-29.99V

3. Resistance test R1: range : 0.1-200 mΩ

4. Resistance test R2: range :1-2000 mΩ
2 5/10 Channel Automatic Battery sorting Sorter machine

1.Sorting Speed:80PPM

2.Suitable for:all types of cylindrical cell

3

Insulation Paper Sticking Machine

1.Productivity:4000pcs/h; single 4pcs

2.Suitable:one machine for one type cylindrical cell

4

Manual AC Pneumatic Spot Welder

1.Welding Thickness:0.03-0.2mm

2.Maximum power output of transformer:15 KVA

5

Manual DC Pneumatic Spot Welder

1. Welding Thickness:0.03-0.25mm

2. Maximum Output Short Circuit Current:5000A

6

Automatic 5000A/8000A Single Side Spot Welding Machine

1. Spot Welding Speed:0.35s/point; 2800pcs / hour

2. X-Y-axis Travel:400*500mm

(can be customized according to request)

7

Automatic 5000A/8000A Double Sides Spot Welding Machine

1. Spot Welding Speed:0.35s/spot, 5500pcs/h

2.Y-Z-axis Travel:400*500mm

(can be customized according to request)

8

Automatic 5000A/8000A Single Side Rotary Welding Head Spot Welding Machine

1. Welding Material:

pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm

2. Maximum Spot Welding

Speed:0.35S/point;2800pcs/h

3. Maximum Stroke Size Range:

X:500mm,Y:400 mm,Z:35mm,

R:180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

9

Automatic 5000A/8000A Double Sides Rotary Welding Head Spot Welding Machine

1.Rotary Welding Head:R:180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

2. Welding Travel:

Y: 500mm; Z; Z2:350mm(or 400mm)

10

Automatic Assembly Line Double Side Spot Welding Machine

Suitable for assembly line battery pack production

11

Battery Pack PVC Covering Machine

1. Transmit Speed:

0-15m/min

2.Shrinking Speed:0-300C

3.Load-bearing:30kg

12

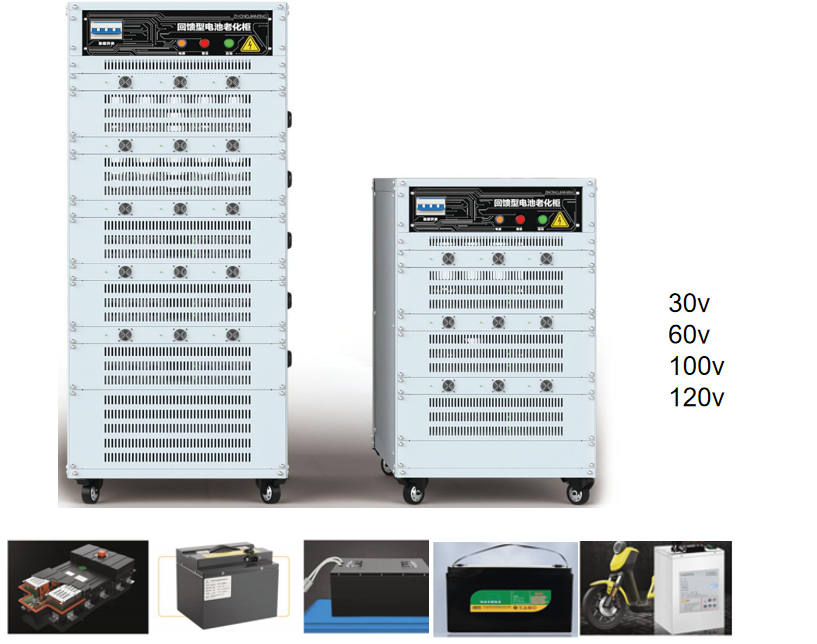

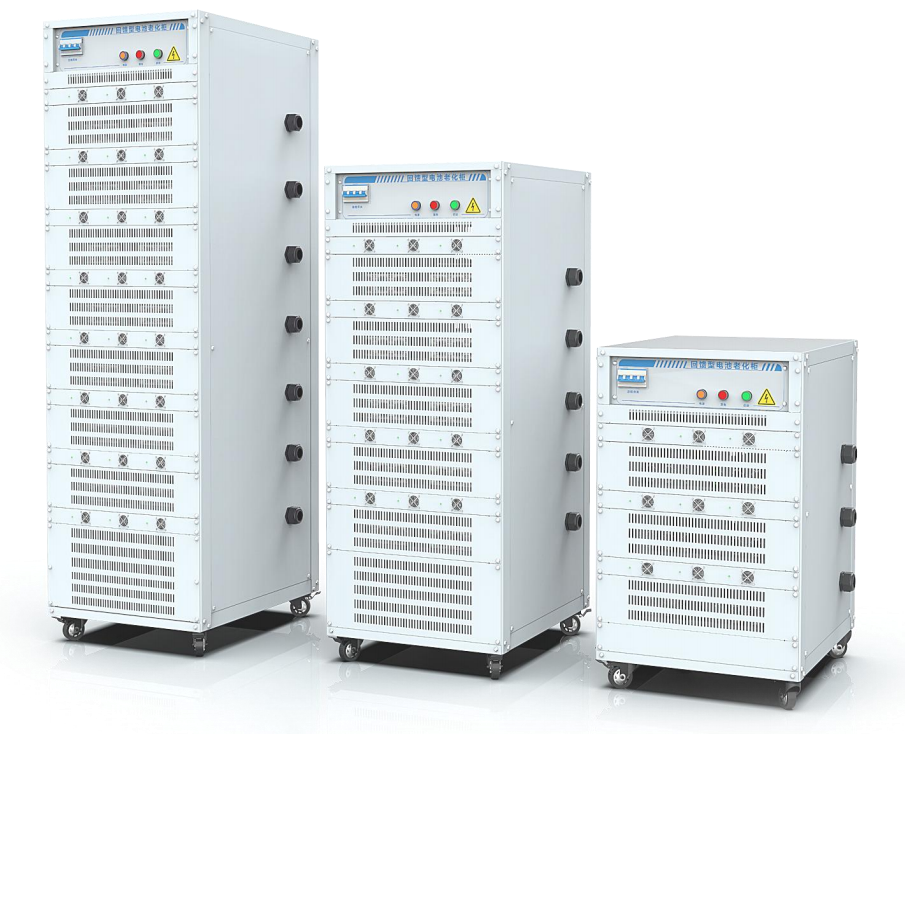

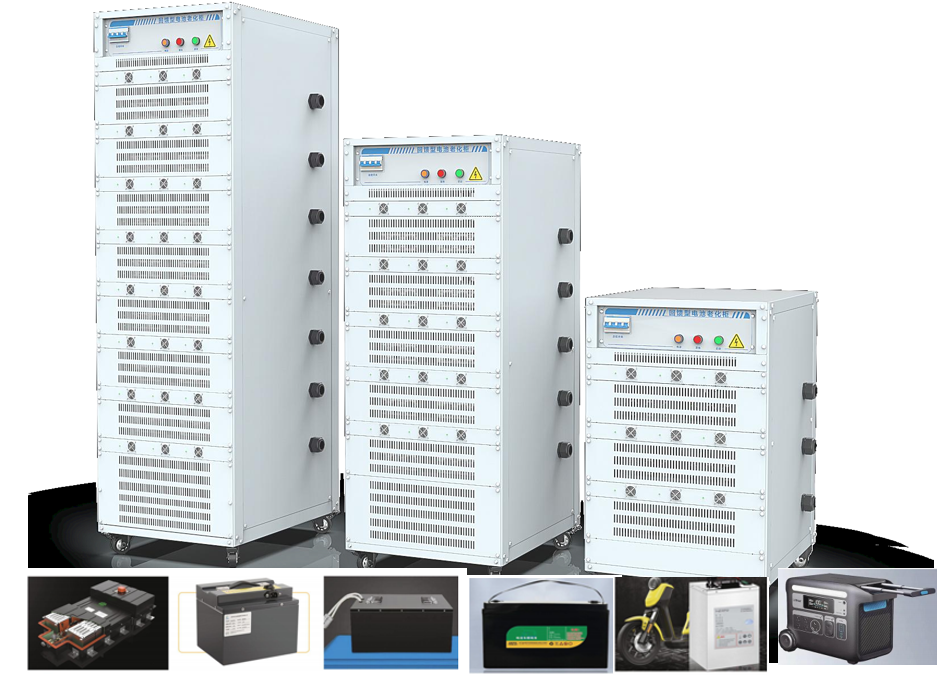

30V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:4.5-30V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

13

70V 5A 10A Battery Pack Aging Cabinet

1.Voltage testing range:5-70V

2.Charging range:50-5000mA

3.Discharging range:50-10000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

14

100V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

15

Automatic Inject Printer

1.Printing speed:320m/min

2.Non-contact printing distance:2-15mm

3.Max number of printing dots:34

16

Battery Pack Comprehensive Tester

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

17

BMS Tester

1.Overcharge/Overdischarge Protection Voltage:0.5-5V

2.Overcharge Protection Current:0-50A

3.Over-discharge Protection Current:0-120A

18

256 Channel 5V 10A20a Battery Tester

1.Current:0.05A-10a/20a

2.Voltage:0-5V

3.Channel:256

19

512 Channel 5V 2A 3A 5A 6A Battery Tester

1.Current:0.05A-2A/3A/5A/6A

2.Voltage:0-5V

3.Channel:512

20

256 5v6a 10a /512 Channel 3a5V 5A 6A Lithium Battery Tester With Energy Regenerative Function

1.Current:0.05A-5A/6A

2.Voltage:0-5V

3.Channel:256/512

4.Lithium Battery Tester with Energy Regenerative Function

21

PVC Heat Shrink Wrapping Machine

1.Film speed:50~70PCS/MIN

2.Film precision:±0.1MM



Battery Analyzer Capacity Tester

AITOP 5v3a6a10a20a30a50a60a100a Capacity Tester  8ch 5v100a Battery Capacity Tester battery charge discharge tester

One-year warranty and lifetime maintenance are our guarantee of quality .

Our products including:

1.IR tester

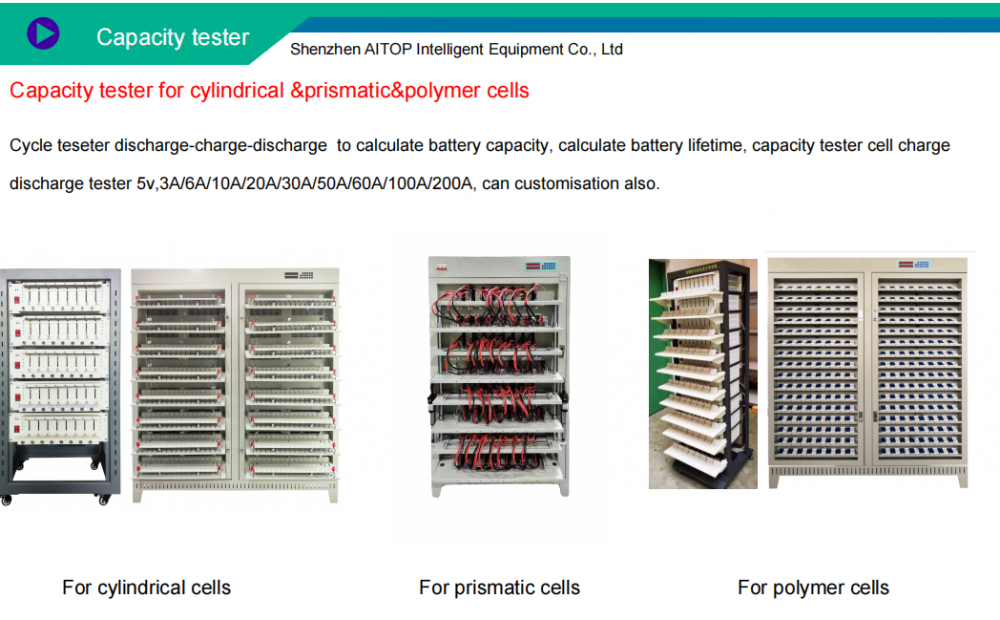

2.Capacity tester for cylindrical &prismatic&polymer cells

3.BMS tester

4.Sorting machine for common use

5.Insulation paper sticker machine

6.Manual spot welding machine

7.Automatic spot welding machine

8.Battery pack integrated tester

9.Battery pack charging discharging aging machine

10.PVC shrinking machine

11. Nickel plate&PVC cutting machine

12.Laser welding machine

13.Wire bonding machine and etc.

All of our products are good price.

If you have any interesting,please feel free to contact with us

TOP Battery machine factory contact number

Shenzhen AITOP Intelligent Equipment Co., Ltd.

Email :sales(@)

wehcat/whatsapp /Phone Number:/+8618098919495


Performance characteristics

full charge and discharge curve of all channels, and can also be separated from the upper

computer and complete the operation through the control panel. Constant current constant voltage

charge, constant current discharge test, time sorting and other work.ETC







Contact us :

Shenzhen AITOP Intelligent Equipment Co. LTD

 Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/

008618098989643/+8618820281861

Email:sales(@)


Packing and shipping

*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days



Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided







Looking forward to establish good business relationship with you in the new future,any question,please

Contact us :

Shenzhen AITOP Intelligent Equipment Co. LTD

 Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/

008618098989643/+8618098919495

Email:sales(@)
