MICROTEMP® 93 °C Thermal Fuses From Therm-O-Disc

FOB Price

Negotiable / Piece

2000 Pieces(Min. Order)

Port Shanghai Hongkong
Payment TermsT/T
Delivery Detail1 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Temperature Fuse	Shape	Tablet
Breaking Capacity	High	Standard	Other, CCC UL VDE JET KC
Fusing Speed	F	Fusing Device	Discoloration
Usage	Low Voltage	Specification	G4A00 Tf093C
Trademark	MICROTEMP T-O-D	Origin	China

Product Description

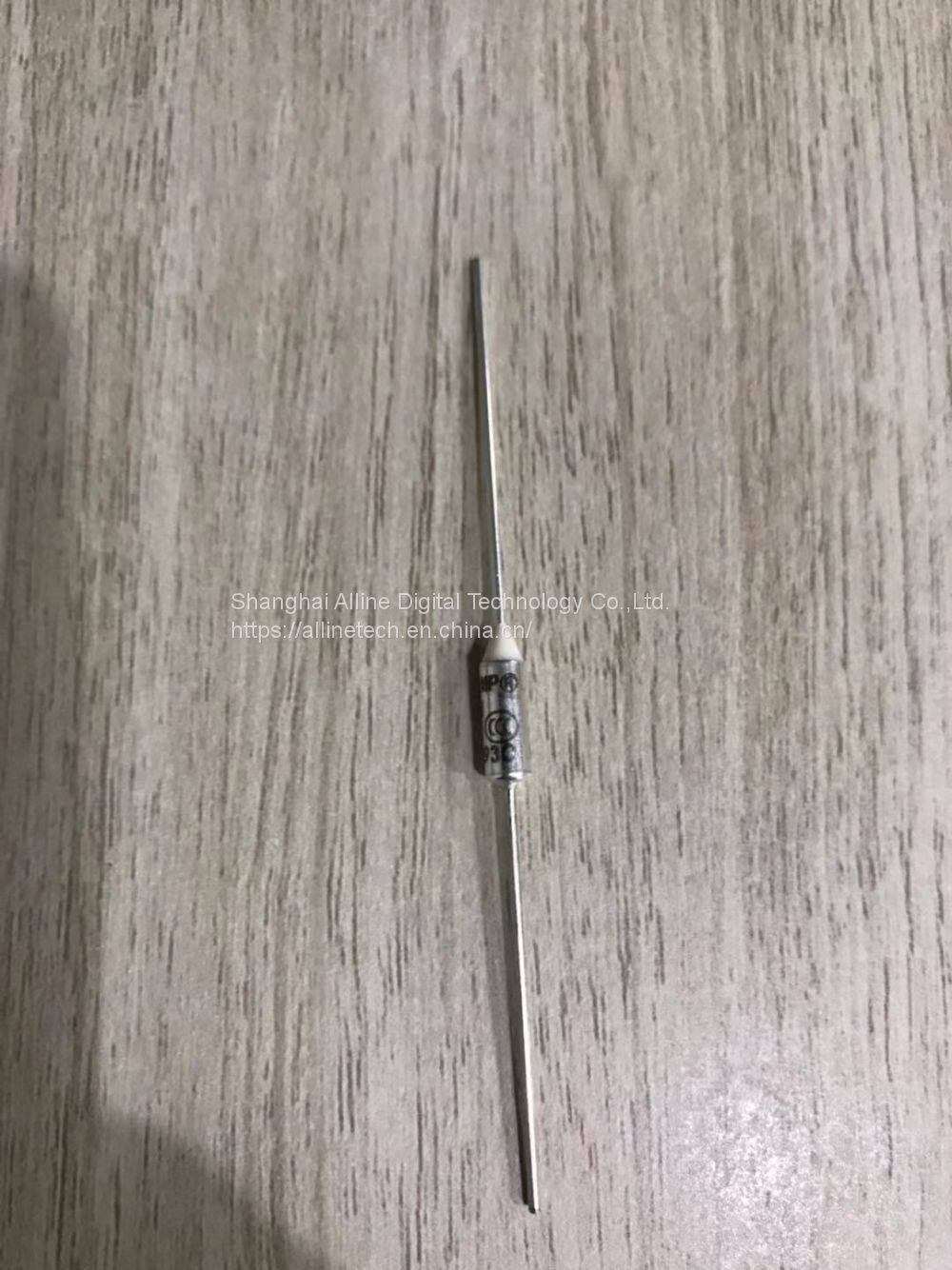

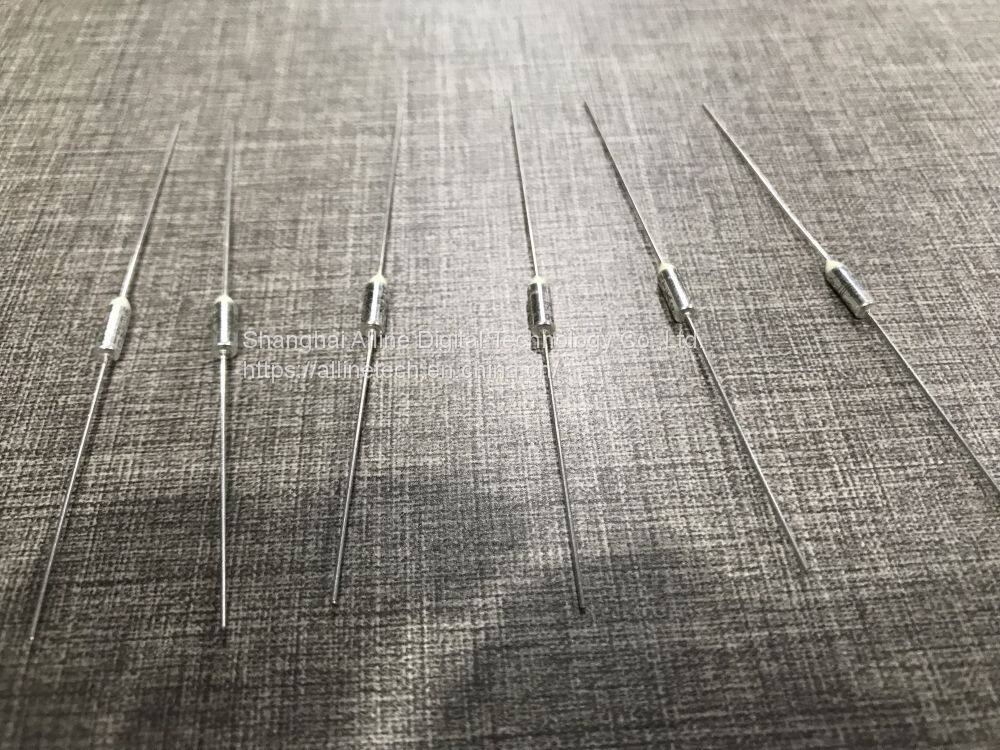

Sensience/Thermodisc thermal fuse, thermal cutoffs, thermal protection

The MICROTEMP® G4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.

Standard Type: G4A00093C / G4A01093C / G4A50093C / G4A51093C

E4A00093C / E4A01093C / E4A50093C / E4A51093C

Electrical Ratings & Agency Recognition:

UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC

VDE -- 10A/250VAC

CCC -- 10A/250VAC

PSE JET -- 10A/250VAC

KC -- 10A/250VAC

Overall Length: 63.8mm(G4A00093C) / 82.9mm(G4A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 300°C

The MICROTEMP® G5 Thermal Fuse is rated for continuous operating currents up to 20 amps @ 250VAC.

Standard Type: G5A00093C / G5A01093C / G5A50093C / G5A51093C

E5A00093C / E5A01093C / E5A50093C / E5A51093C

Electrical Ratings & Agency Recognition:

UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC

VDE -- 20A/250VAC

CCC -- 20A/250VAC

PSE JET -- 15A/250VAC

KC -- 16A/250VAC

Overall Length: 63.8mm(G5A00093C) / 82.9mm(G5A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 410°C

The MICROTEMP® G7/E7 Thermal Fuse is rated for continuous operating currents up to 5 amps @ 250VAC and 5 amps @ 24VDC .

Standard Type: G7F01093C/ G7F51093C / E7F01093C / E7F51093C

Electrical Ratings & Agency Recognition:

UL/CSA -- 5A/250VAC,5A/24VDC

VDE -- 5A/250VAC

CCC -- 5A/250VAC,5A/24VDC

PSE JET -- 5A/250VAC

KC -- 5A/250VAC

Overall Length: 82.6mm

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 140°C

The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.

Standard Type: G8A00093C / G8A01093C / G8A50093C / G8A51093C

E8A00093C / E8A01093C / E8A50093C / E8A51093C

Electrical Ratings & Agency Recognition:

UL/CSA --20A/277VAC, 25A/250VAC

VDE -- 25A/250VAC

CCC -- 25A/250VAC

PSE JET -- 25A/250VAC

Overall Length: 63.8mm(G8A00093C) / 82.9mm(G8A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 410°C
