Home > Electrical & Electronics > Sensor > Pressure Sensor > Shortbridge Type Load Cell Weight Sensor 30 Ton Capacity Alloy Steel

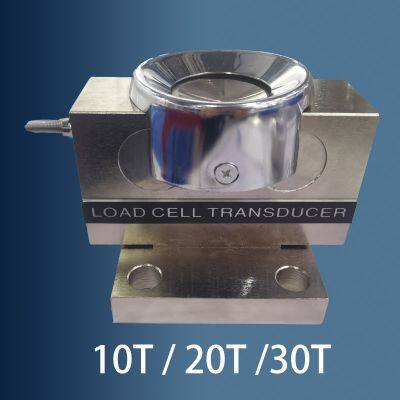

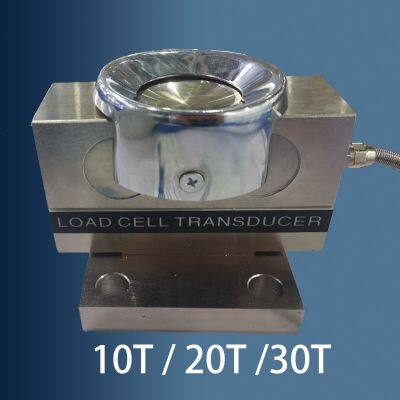

Shortbridge Type Load Cell Weight Sensor 30 Ton Capacity Alloy Steel
US$ 35 - 50
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
jinfenglin
Place of Origin:
China
Model Number:
JFL-19QS
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao,tianjin,shanghai,ningbo
Delivery Detail:
10 days
Related Products
-
JFL-1320C 0.1T-3T Weight Sensor for Small Ground ScaleCNY 40 - 50MOQ: 1 Piece -
Shear Beam Weight Sensor for Small Ground ScaleCNY 40 - 50MOQ: 1 Piece
-
Cantilever Beam Weight Sensor 100kg 200kg 250kg 500kg 1 Ton 2 Ton 3 TonCNY 40 - 50MOQ: 1 Piece
-
JFL-16A-G Weighing Sensor Load Cell for Packaging MachineCNY 300 - 400MOQ: 1 Piece
-
JFL-16IL Alloy Steel Weight Sensor for Automatic IndustriesCNY 350 - 450MOQ: 1 Piece
Brand Name
jinfenglin
Place of Origin
China
Model Number
JFL-19QS
Usage
Other, load cell
Theory
Resistance Sensor
Output
Analog Sensor
l made of alloy steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l suitable for truck scale, railway scale, etc.
Technical parameters | ||
Model: JFL-19QS |
Material: good quality alloy steel |
|
Capacity: 10T-30T |
Output resistance:700±3Ω |
|
Output sensitivity:2.0±10%MV/V |
Input resistance: 750±10Ω |
|
Zero point output:±1%FS |
Comprehensive error:≤±0.03% |
|
Nonlinear: 0.03%FS |
Repeatability: 0.03%FS |
|
Excitation voltage:5-15V |
Working temperature range: -20℃ to +70℃ |
|
Safe overload:150% |
Ultimate overload:200% |
|
Cable: φ5.7x16m, φ5.7x12m |
Insulation resistance:≥5000MΩ |
|
|
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire) | ||
