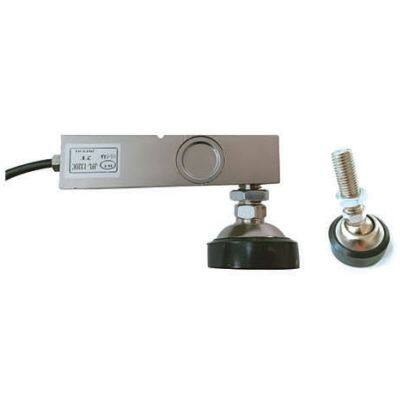

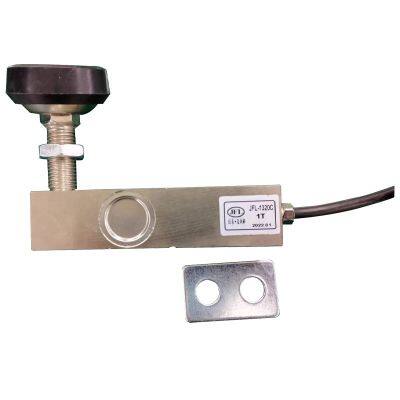

Alloy Steel Weight Sensor Shear Beam Load Cell for Small Ground Scales

Name: Alloy Steel Weight Sensor Shear Beam Load Cell for Small Ground Scales
Brand: jinfenglin
SKU: 172939284
Availability: InStock

CNY 45 - 60 MOQ: 1 Piece

Key Specifications

Brand Name:

jinfenglin

Place of Origin:

China

Model Number:

JFL-1320C

Shandong Jinfenglin Electronic Technology Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao,ningbo,shanghai,yiwu

Delivery Detail:

7 days

Brand Name jinfenglin

Place of Origin China

Model Number JFL-1320C

Usage Other, weight sensor

Theory Resistance Sensor

Output Analog Sensor

1. introductions

l made of alloy steel or stainless steel

l adopting laser welding seal or rubber seal treatment

l nickel plated surface, waterproof, anti-corrosion

l suitable for electronic weighing apparatus such as electronic platform scale, rail scale, weigh bridge scale

2.Specifications

No.	Item		Spec.
1	Model		JFL-1320C
2	Capacity	kg	50,100,200,250,500,1000,2000,3000
3	Output sensitivity	MV/V	2.0±0.004
4	Accuracy grade	---	C3
5	Comprehensive error	---	≤±0.020
6	Creep	%RO/30min	0.02
7	Temperature effect on sensitivity	%RO/℃	0.0016
8	Temperature effect on zero	%RO/℃	0.002
9	Zero balance	%RO/℃	±0.1
10	Input resistance	Ω	365±10
11	Output resistance	MΩ	350±5
12	Insulation resistance	MΩ(50)	5000
13	Recommended excitation voltage	V	5-12
14	Compensated temperature range	℃	-10 to +40
15	Working temperature range	℃	-30 to +80
16	Safe overload capacity	%RO	150
17	Ultimate overload range	%RO	200
18	Wire connection	---	Red input (+) black input (-) green output (+) white output(-)
