Bridge Type Ball Cup Digital Analog Load Cell Weight Sensor C3 Accuracy

Name: Bridge Type Ball Cup Digital Analog Load Cell Weight Sensor C3 Accuracy
Brand: JINFENGLIN
SKU: 172956106
Availability: InStock

US$ 37 - 47 MOQ: 1 Piece

Key Specifications

Brand Name:

JINFENGLIN

Place of Origin:

China

Model Number:

JFL-19

Shandong Jinfenglin Electronic Technology Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao, tianjin,shanghai,ningbo

Delivery Detail:

15 days

Brand Name JINFENGLIN

Place of Origin China

Model Number JFL-19

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

JFL-19 bridge weight sensor

l Bridge type, classic model for truck scales

l Install convenient, high reliability, stable and accurate weighing, long working time, high cost-effectiveness

l Can choose analog model, digital model, anti-lightning model, low temperature resistance model, high temperature resistance model

l suitable for truck scale, platform scale, railway scale, etc.

Technical parameters
Model: JFL-19		Material: good quality alloy steel

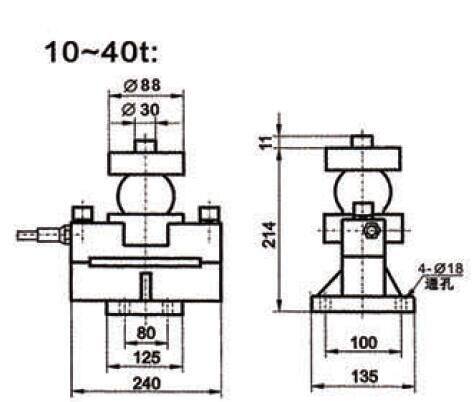

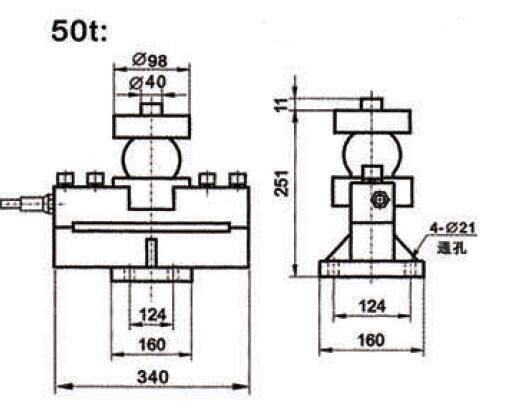

Capacity: 20T-50T		Output resistance:700±3Ω
Output sensitivity:2.0±10%MV/V		Input resistance: 750±10Ω
Zero point output:±1%FS		Comprehensive error:≤±0.03%
Nonlinear: 0.03%FS		Repeatability: 0.03%FS
Excitation voltage:5-15V		Working temperature range: -20℃ to +70℃
Safe overload:150%		Ultimate overload:200%
Cable: φ5.7x16m, φ5.7x12m, φ5.7x18m		Insulation resistance:≥5000MΩ(50V)
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire)
