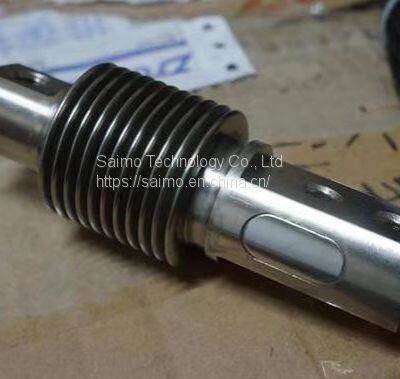

Saimo Load Cell PLR9363-LS/PLR9363-CS/PLR9363-AS photo-2

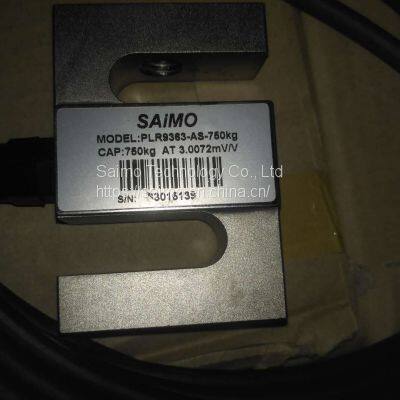

Saimo Load Cell PLR9363-LS/PLR9363-CS/PLR9363-AS photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
saimo
Place of Origin:
China
Model Number:
PLR9363-LS
Contact Supplier Request Quote Chat Now
Saimo Technology Co., Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name saimo
Place of Origin China
Model Number PLR9363-LS

One end fixed, one end loaded, sealed well;;
Automatically adjusted by the force of the heart, simple to install, easy to use, good interchangeability;
It can be used for the production of ultra-thin electronic truck scale, monorail crane scale, hopper scales, etc. .
Range
50,100,200,300,500 kg; 1,2,3,5,10,15,20 t
cantilever weighing sensor technology parameters

Rated load

0.05 to 20t

Comprehensive accuracy

0.02 0.03 (linear + lag + repeatability)

Sensitivity

2.0 mV / V

Creep

± 0.02% F · S / 30min

Zero output

± 1% F · S

Zero temperature effect

± 0.02% F · S / 10 ℃

Output temperature

± 0.02% F · S / 10 ℃

Operating temperature

-20 ° C to + 65 ° C

Input resistance

380 ± 10 Ω

Output impedance

350 ± 3 Ω

Insulation resistance

> 5000 MΩ

Safety overload

150% F · S

For the bridge voltage

Recommended 10VDC

Material

Alloy steel or stainless steel

Wiring

Input (+): Red line input (-): Black line

Output (+): Green line output (-): White line

Signal amplifier wiring

Power: Red Common: Green Output: Yellow
