Xiongxing CNC Gemstone Faceting Machine
Model: Xiongxing Xingxing Gemstone Cutting Surface CNC Machine (Coarse Grinding + Fine Grinding + Polishing)
Number: 810501888 Model: XX-380D Product Overview

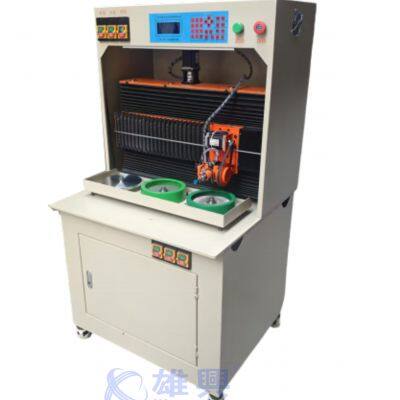

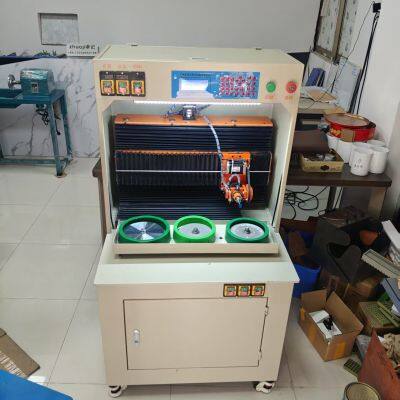

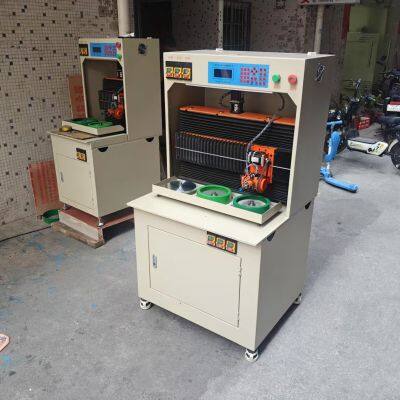

Xingxing XX-380D is a high-performance, automatic CNC gemstone processing machine that integrates coarse grinding, fine grinding, and polishing functions. It is precisely controlled by five-axis stepper motors, capable of efficiently processing over ten types of gemstone shapes, including circular, elliptical, and heart-shaped, ranging from 2mm to 30mm in size. This machine is easy to operate and supports both Chinese and English interfaces. One engineer can operate multiple machines simultaneously, significantly enhancing production efficiency.
1. Core Functions and Advantages
Integrated Processing: Completes all processes from coarse grinding to polishing without the need to change equipment.
· High Efficiency Production: Approximately 2 minutes per piece for gemstone processing.
· Easy Operation: Graphical menu, step-by-step operation, supports one employee to oversee multiple machines.
· High-Precision Five-Axis System: Five stepper motors work together to ensure precise and perfect cutting surfaces.
· Powerful Storage Capacity: Built-in storage space, can save up to 50 gemstone shape parameters, including 15 standard sizes for circles.
· Wide Compatibility: Supports gemstone processing from 2mm to 30mm, compatible with maximum 7-inch (170mm) grinding discs/ polishing discs.
2. Detailed Explanation of Five-Axis Motor Functions
Motor Axis Function Description Analogous to Traditional Equipment
Y1 Motor Positioning Motor: Responsible for driving the rotation of the plate position, switching the gemstone processing surface. Like the rotation function of an octagonal hand or mechanical hand.
Y2 Motor Pressure Motor: Controls the angle and pressure of downward grinding/polishing.
Y3 Motor Horizontal Movement Motor: Left-right movement of the machine head, used for switching between the grinding disc and polishing disc.
Y4 Motor Lifting Motor: Controls the lifting of the machine head, adjusting the processing height. Like the lifting platform of an octagonal hand.
Y5 Motor Travel Motor: Controls the swing amplitude and distance of grinding/polishing.
3. Quick Operation Guide (Example of Batch Processing of Circular Gemstones)
4. 1. Startup and Selection
· After startup, click on the main interface [Menu].
· Select [Gemstone Type Selection] → [Circular].
2. Parameter Settings
· Enter [Parameter View and Modification], confirm or fine-tune the top surface parameters.
· Enter [Polishing Parameters], ensure the first layer parameters are enabled.
3. Start Running
· Return to the main interface, turn on [Run Mode].
· Click [Start] button, the machine is ready to run.
4. Batch Processing Settings
· When prompted, set rules for the Y1 motor (positioning motor).
· Select [Rule Batch Input].
· Input the number of gemstones to be processed (for example: 8 plate positions).
· After confirmation, the machine will start automatic batch processing.
4. Referenced Shapes and Standard Sizes
Shape Standard Size (Unit: mm)
Circular 15 preset sizes (2-30mm range)
Oval/Elliptical 2x3, 4x6, 5x7, 6x7, 8x10, 10x12, 10x14
Pear-shaped 4x6, 5x7, 6x8, 8x10, 9x11
Marquise-shaped 3x5, 4x6, 5x7, 6x8, 7x9
Square 4x4, 5x5, 6x6, 7x7, 8x8
Rectangle 5x7, 10x12
Triangle 4x4, 5x5, 6x6, 7x7, 8x8, 10x10
Heart-shaped 4x4, 5x5, 6x6
Other Supports various personalized custom shapes
5. Technical Parameters
Item Parameter Power supply voltage: 220V
Rated power; 250W
Grinding disc speed 2800 r/min
The diameter of the grinding disc is 6 inches (150mm)
The diameter of the polishing disc is 7 inches (170mm)
The overall dimensions are 80cm (length) x 76cm (width) x 150cm (height)
The equipment weight is 250 kg
The control system supports Chinese and English interfaces
The steps of the faceting processing: divided into 3 process steps
Step 1: Raw material → Cutting → Shaping → Semi-finished product polishing → Follow-up
Step 2: Crown top surface processing:
Apply stone → Press the tabletop → Plate position grinding sand → Plate position polishing → Frontal polishing → Subsequent bottom surface (porch part)
Step 3: Bottom surface (porch part) processing:
→ Flip the bottom surface (porch part) → Leave the edge → Bottom surface (porch part) panel sanding → Bottom surface (porch part) polishing → Remove the stone → Ultrasonic cleaning
Mechanical series:
Cutting machine → Shaping machine/Multi-functional machine → Vibrating polishing machine → Stone applicator → Press tabletop machine → Edge leaving machine → CNC faceting machine → Stone remover → Ultrasonic cleaning machine
Auxiliary machinery:
Blanking machine → Punching hole machine → Pressing machine → Manual faceting machine
