Epoxy crystal surface grinder
ARE YOU LOOKING FOR A NEW CONCRETE GRINDER OR POLISHER?
When you buy concrete grinding tools and equipment, it’s important to make sure you purchase the right products to suit your needs.
Get it wrong and you could end up with a machine that’s not up to the job, causing you to have to spend more time and more money getting your projects done. Or, you end up paying too much for a machine that’s overkill for what you need, wasting your hard earned cash.
To make sure you get the right equipment, we’ve used our experience to develop a range of concrete grinding machines and polishers that are second to none! Check out our range below.

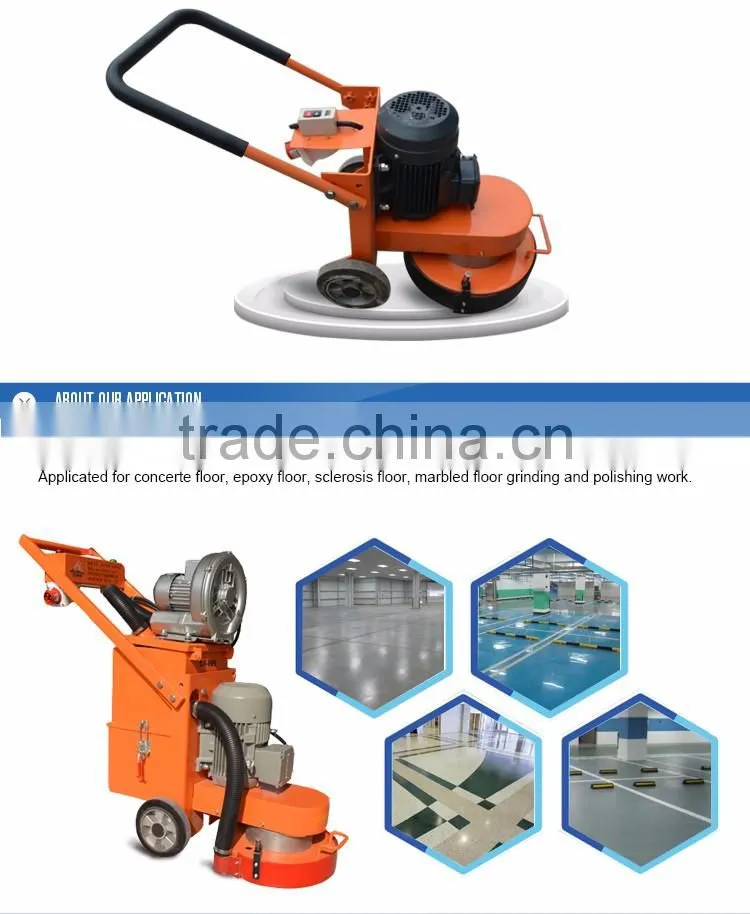

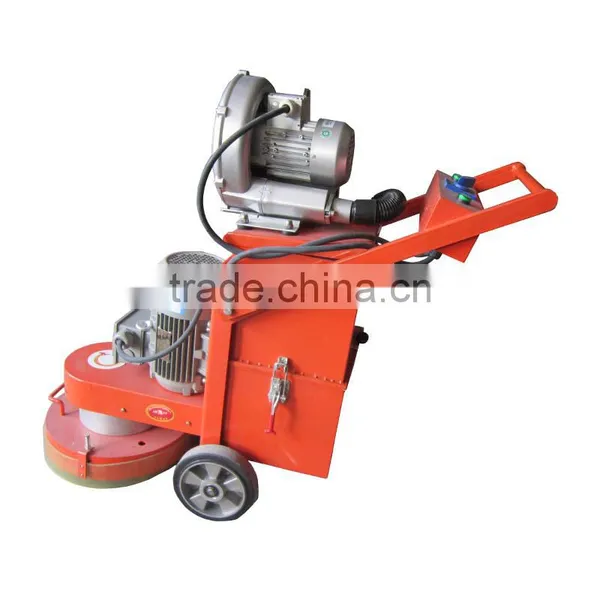

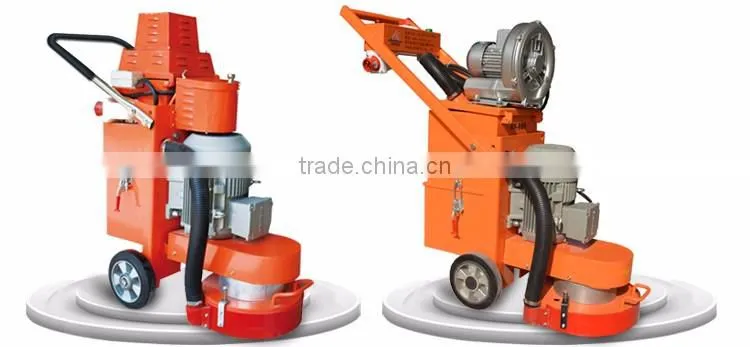

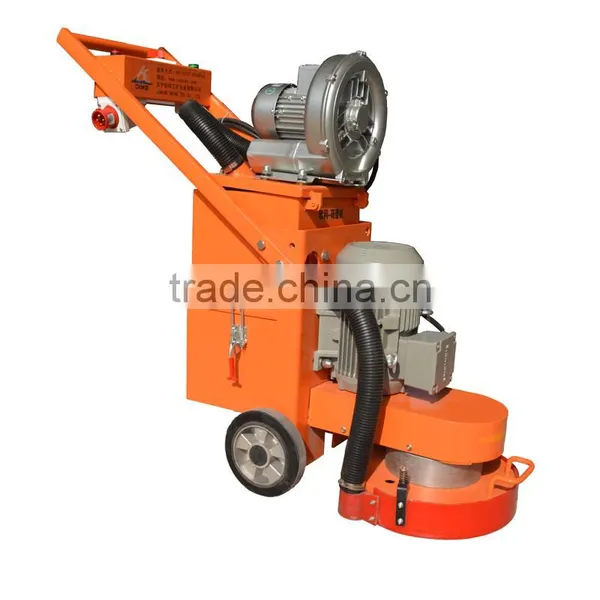

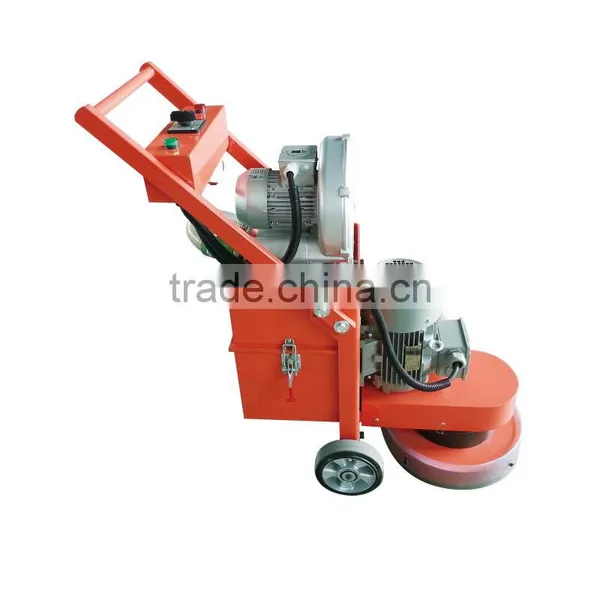

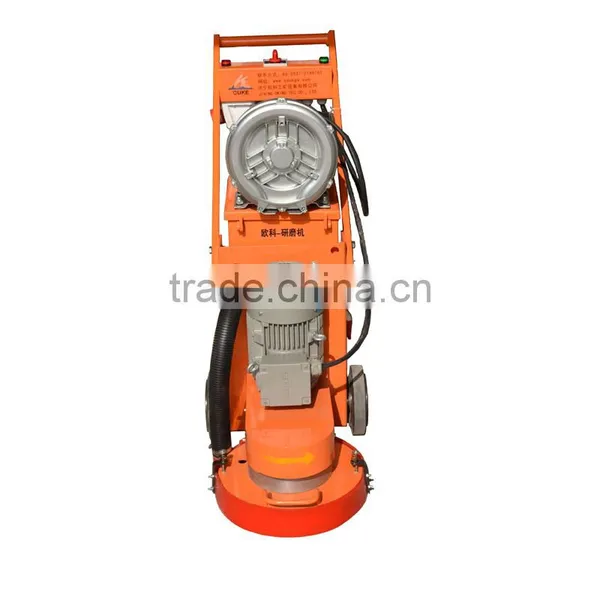

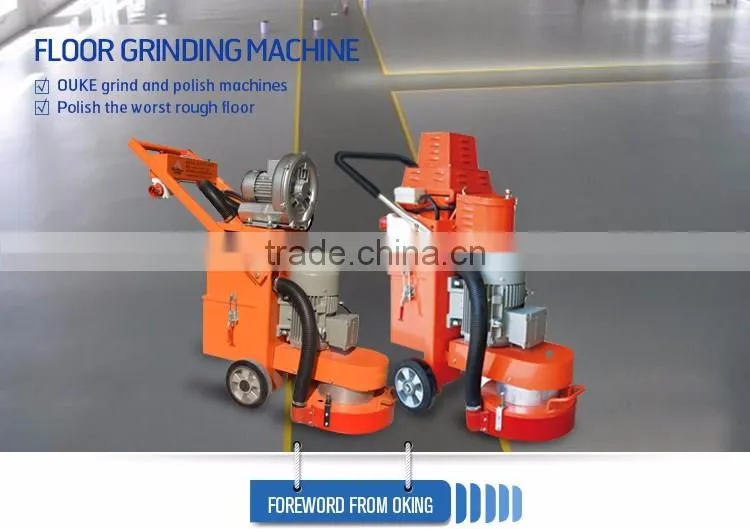

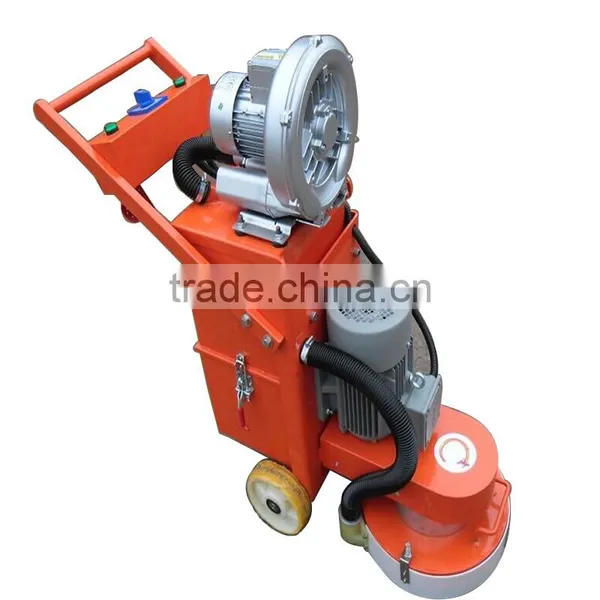

Following introductions are about the most popular two types grinding machines with dust collection.Besides, These two types of grinding machines’ plate can be moved up and down in the range of 1-3 mm, better for grinding the floor more horizontal.
Activity or Features |
Improved |
Baseline |
||
Model OK-300B |
Model OK-380B |
|||
Weight |
114 KGS |
251 LBS |
130 KGS |
286 LBS |
Voltage |
220 V / 380 V |
220 V / 380 V |
380 V |
380 V |
Power |
4 KW |
5.4 HP |
3 KW |
4 HP |
Leveling Depth |
1-3 mm |
0.25-0.76 in |
1-3 mm |
0.25-0.76 in |
Cleaning Path |
300 mm |
76.1 in |
380 mm |
96.4 in |
Dust Collection Power |
1.1 KW |
1.475 HP |
0.75 KW |
1 HP |
Dust Collection Capacity |
17 L |
3.74 Gal |
17 L |
3.74 Gal |
Dust Collection Power |
1.1 KW |
1.475 HP |
0.75 KW |
1 HP |
Production |
4-6 m2/min |
3-5 m2/min |
||
Warranty |
1 Year |
1 Year |
||
Motor Phase |
Three Phase |
Three Phase |
||
Motor Brand |
Siemens 1LE0001-1AB25-1AA4 |
Siemens 1LE0001-1BB23-3AA4 |
||
Dust Collection Motor |
Made in USA |
Made in China |
||
Grinding Plate |
Multi-Function Plate |
Triangle Plate |
||

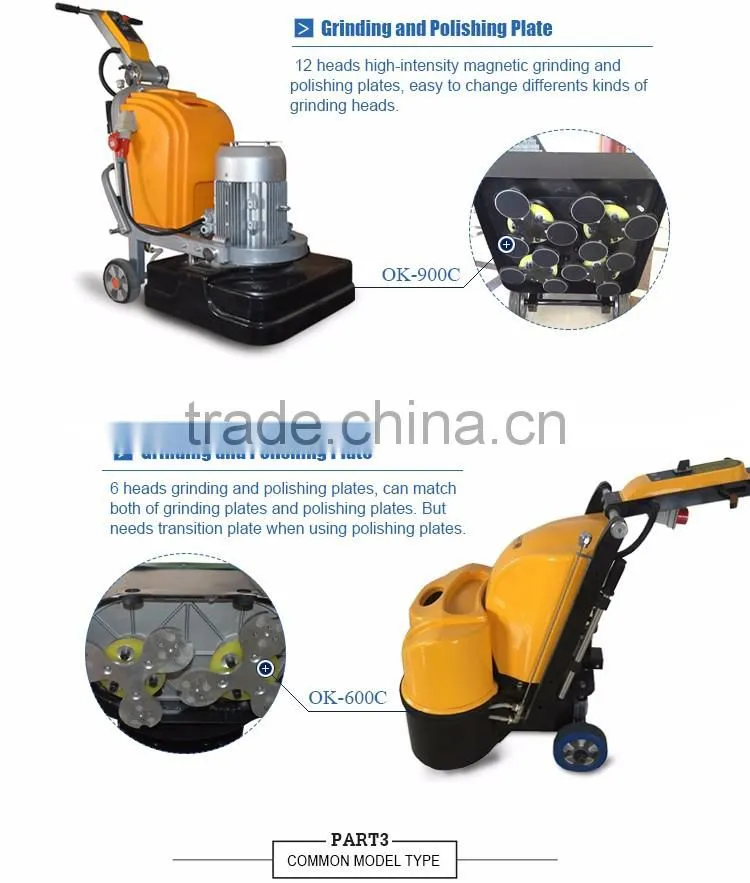

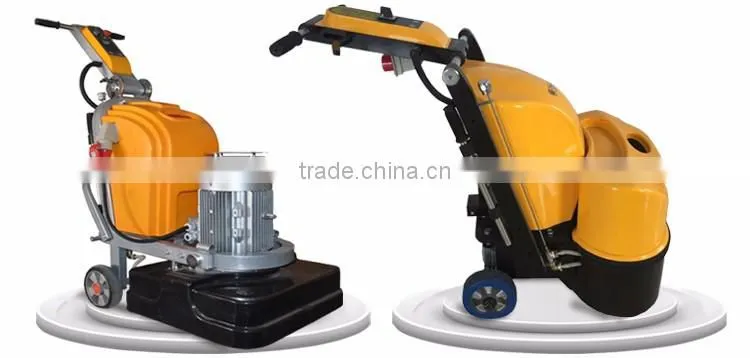

Now we will introduce you another two types of wet grinding machines: Model OK-900C and Model OK-600C. They are provided with a dust suction mouth, external vacuum cleaners, reduce dust phenomenon. Also can polish the ceiling one machine, can make the grinding process is free of dust. they can be installed a variety of grinding heads, suitable for different grinding floors like cement floor grinding, polishing the floor of the old coating and epoxy putty grinding and grinding epoxy mortar layer, improving the flatness of epoxy mortar, the milling tool can also be used.
Activity or Features |
Improved |
Baseline |
||
Model OK-900C |
Model OK-600C |
|||
Weight |
210 KGS |
463 LBS | 165 KGS |
364 LBS |
Voltage |
220 V / 380 V |
220 V / 380 V |
220 V / 380 V |
220 V / 380 V |
Power |
7.5 KW |
10 HP |
5.5 KW |
7.4 HP |
Cleaning Path |
490*490 mm 580*580 mm |
19.3*19.3 in 22.8*22.8 in |
560 mm |
22 in |
Water Tank Capacity |
35 L |
9.25 Gal |
35 L |
9.25Gal |
Warranty |
1 Year |
1 Year |
||
Motor Phase |
Three Phase |
Three Phase |
||
Motor Brand |
Siemens |
Siemens |
||
Grinding Plate |
12 Heads Plate |
6 Heads Plate |
||
|
About motor, OK-600C and OK-900C also adopted Siemens motor. OK-900C adopted bigger power Siemens motor work for 12 heads of grinding or polishing plates. | ||||
There is also another type easy operate machine which without dust collection system and water tank. It is used with water together,with a hole which can put the water pipe into the hole.For this type of machine, you can choose for 300 mm grinding plate or 380 mm grinding plat, and also can choose Siemens motor or Made in China Motor. Any requirements you need can contact with us.

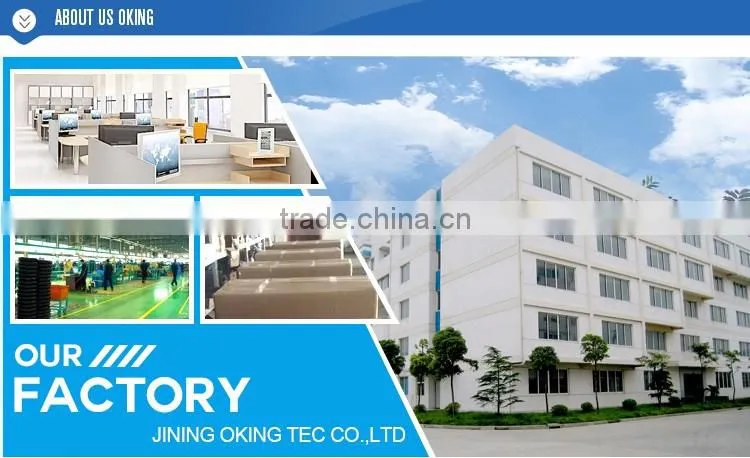

Jining oking tec co.,ltd has advanced management, strong technical force and perfect production and testing equipment. We have attained ISO9001:2008 Quality System Certification, and our mining rubber products have got "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS" .We always pursues outstanding product quality.
Our products are widely used in bulk material handling industries including mine power generation tallurgy chemical and other fields
We will always adhere to the principle of "trustworthy and innovative, pursuing excellence" and continue doing our best as before to provide high standard products and satisfactory services for customers
We welcome customers from domestic and abroad to co-operate with us for mutual benefits and common development.
