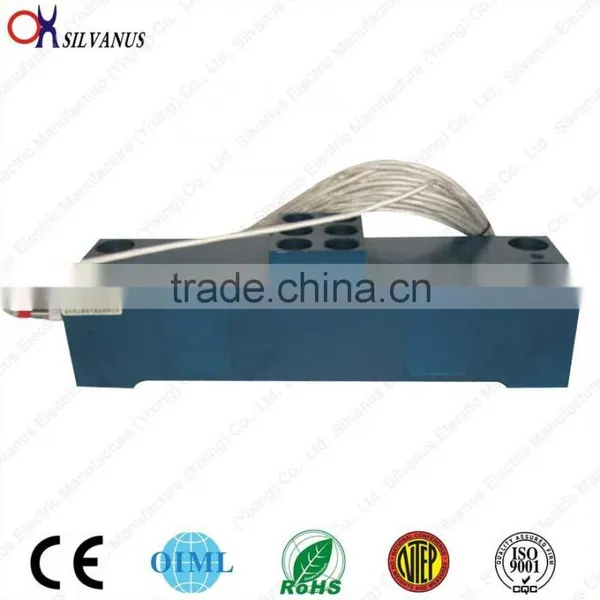

Bridge type load cell/Weighing Sensor

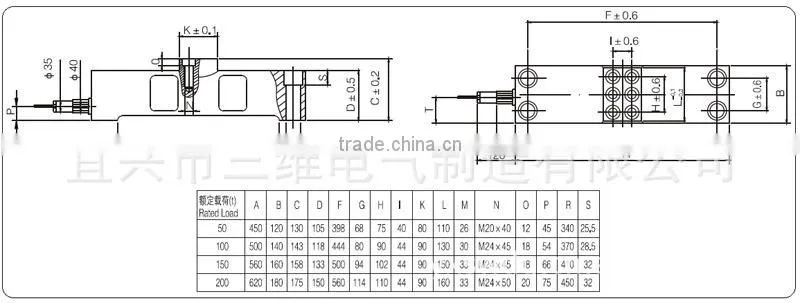

Bridge type load cell Dimensions(mm)
Bridge type load cell Specifications
Emax(Max. capacity) |
t |
50~200 |
Sensitivity |
mV/V |
1.0±0.002 |
Accuracy class |
D1 |
|
Maximum number of verification intervals |
nmax |
1000 |
Minimum load cell verification interval |
Vmin |
Emax/3000 |
Combined error |
%F.S |
≤±0.05 |
Creep |
%F.S/30min |
≤±0.05 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.05 |
Temperature effect on zero |
%F.S/10°C |
≤±0.04 |
Zero balance |
%F.S |
±1.0 |
Input resistance |
Ω |
730±10Ω |
Output resistance |
Ω |
703±5Ω |
Service temperature range |
°C |
-30...+70 |
Safe overload |
%F.S |
150 |
Ultimate overload |
%F.S |
300 |
Recommended excitation voltage |
V |
5…15 |
Insulation resistance |
MΩ/50V |
>5000 |
Protection class |
IP67 |
|
Load cell material |
Alloy steel |
|
Cable length |
m |
12m |
Cable outer caliber |
mm |
Φ5 |
Bridge type load cell Features
Planar load bearing bridge , reasonable structure
Simple and reliable load bearing ,easy to use ,simple to install scale ,traveling crane scale and other weighing systems in steel industry.
Widely used in consecutive-casting bale scale , middle bag scale ,steel ladle
Bridge type load cell Application
truck scales,rail scales,bin and hopper scales,etc.
