Home > Electrical & Electronics > Sensor > Pressure Sensor > Shear Beam Load Cell

Shear Beam Load Cell

Name: Shear Beam Load Cell
Brand: GOLDSHINE
SKU: 128764067
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

SQB-with foot

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number SQB-with foot

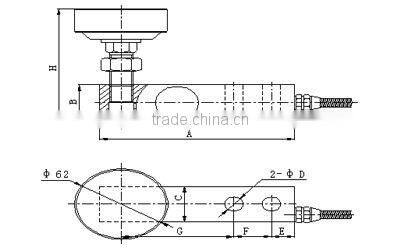

Unit: mm

Cap/Size	A	B	C	D	E	F	G	H
0.1~3t	131	31.8	31.8	13	12.7	25.4	76.2	74~84
3~5t	171.5	38.1	38.1	20	19.1	38.1	95.3	82~92

Product Characteristics:

SQB-with foot series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.

Technical Parameter:

Rated Load:	0.1/0.2/0.3/0.5/1/2/3/5t
Sensitivity:	(2.0±0.1%) mV/V ,(3.0±0.1%) mV/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel/ Stainless Steel
Cable:	Length=L:6m
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)-)
