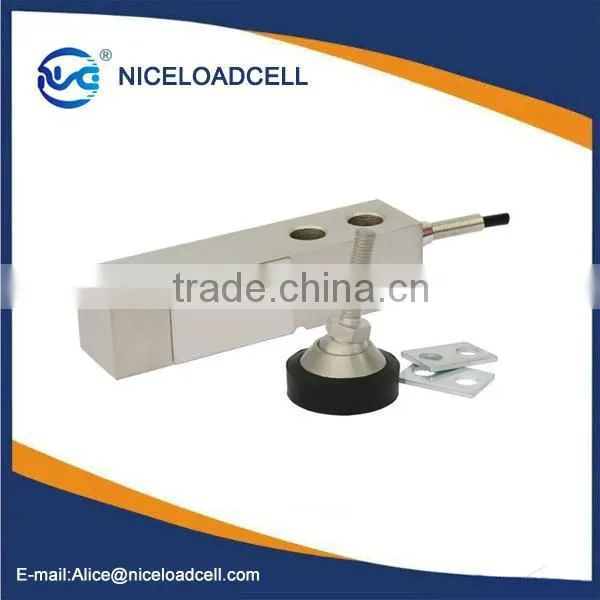

Single Shear Beam Load Cell
US$ 35 - 40
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CZS
Model Number:
CZS803
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Shear Beam Load CellUS$ 50 - 60MOQ: 10 Sets -
Single Shear Beam Load CellUS$ 35 - 40MOQ: 10 Sets
-
5T Stainless Steel Shear Beam Load CellsUS$ 5 - 10MOQ: 10 Pieces
-
2Tshear Beam Materil Aluminum Alloy Load CellUS$ 5 - 10MOQ: 10 Pieces
-
Single Point Shear Beam Load Cell PriceNegotiableMOQ: 1
Place of Origin
Guangdong, China
Brand Name
CZS
Model Number
CZS803
Rated load:500kg~10000kg
Main features:Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Parameters:
| Precision | C2/C3 |
| Zero balance(%F.S) | ±1.0%FS |
| Rated output(mv/v) | 2.0±0.004mV/V |
| Creep(%F.S/30min) | ±0.024/±0.016 |
| Excitation voltage(V) | 9~12(DC) |
| Input resistance(Ω) | 350±3Ω |
| Output resistance | 350±3Ω |
| Ultimate overload (%F.S) | 150% |
| Insulation resistance(MΩ) | ≥5000(100VDC) |
| Temp. effect on span(%F.S/10℃) | ±0.02/±0.014 |
| Comprehensive error(%F.S) | 0.03±0.017%FS |
| Use temp. range(℃ ) | -10~+40 |
| Creep(%F.S/30min) | ±0.02/±0.017 |
| Safe overload (%F.S) | 120% |
| Defend grade | IP66 |
Installation size (mm):

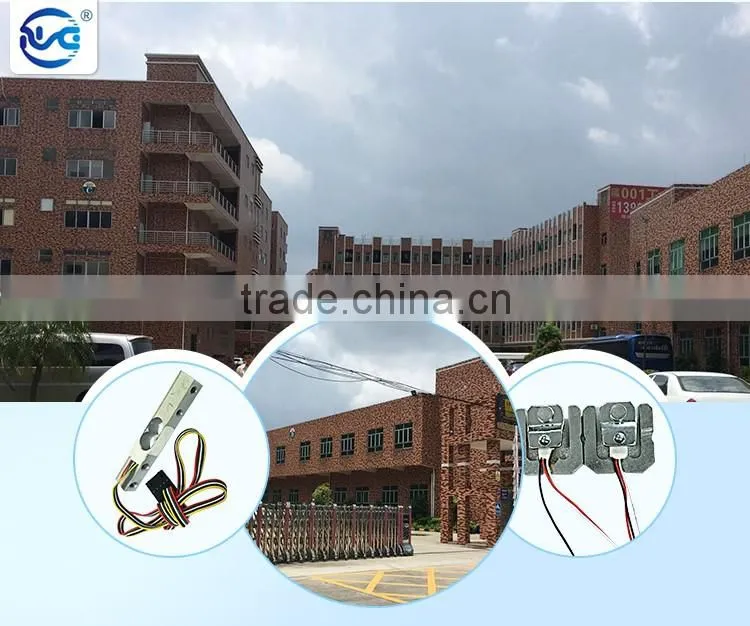

Factory
