Help CenterSingle Shear Beam Load Cell
Related Products
Specifications
Load cell1.Single shear beam load cell,
2.Material: alloy steel & stainless steel
3.For electronic scale ,platform scale
Load cell; single shear beam load cell, stainless steel load cell;
Widely used for electronic platform scales ,truck scale and other weighing equipment.
Capacity (KG): 500,1000,2000,3000,5000,10000,20000
Glue-sealing, nickel plated
Waterproof and anti-corrosion, suitable for multiform environments
It uses 4-core shielded cable, specifications:¢5x5000mm
Specifications:
Accuracy grade:C2/C3
Comprehensive error (%F.S) : ±0.03 / ±0.02
Sensitivity (mv/v) : 3.0±0.3
Creep (%F.S/30min) : ±0.023 / ±0.016
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 350±3
Output Resistance (Ω): 350±3
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.029 / ±0.019
Temperature Effect on Span (%F.S/10): ±0.017 / ±0.011
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+55
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 150
Limit overload (%F.S) : 200
Protection Grade: IP66

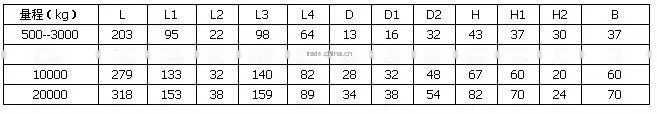

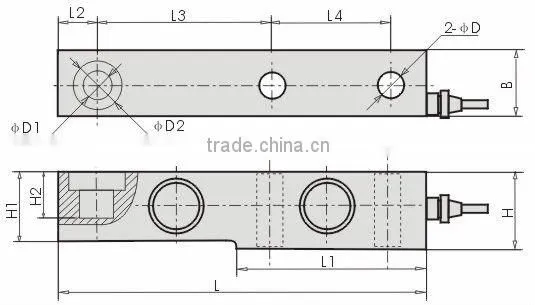

Installation size diagram:
Wire connecting method:
red input +
while output -
black input -
green output +
Power diagram:
