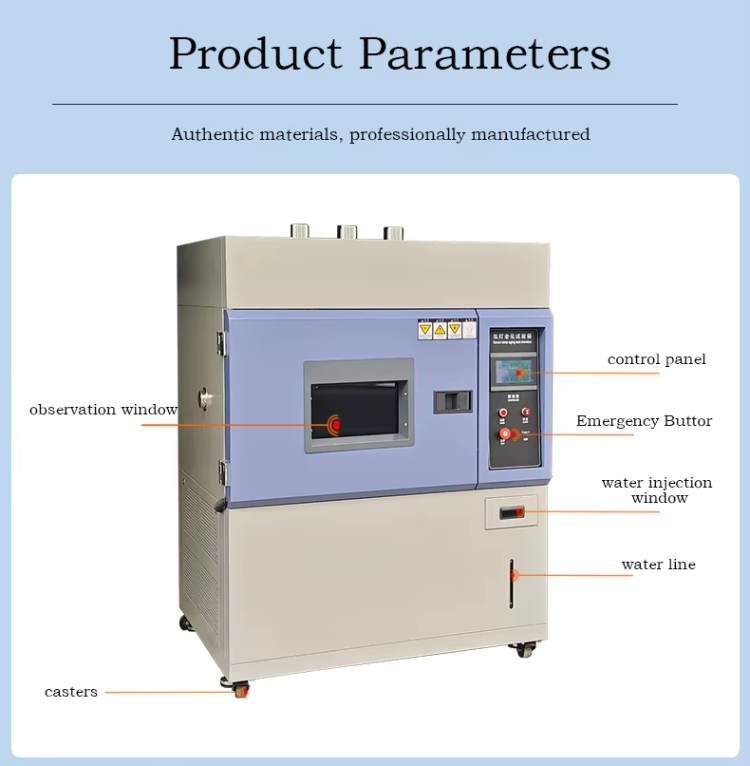

SPECIFICATION
| nternal Dimension | 750*500*600mm | 800*800*800 mm | 1000*1000*1000mm |
| External Dimensian | 1300*1000*1700mm | 1450*1350*2150mm | 1650*1550*2350mm |
| nternal Chamber Matenal | Stainless Steel 304,Anli-rust,Easy Ta Clean | ||
| External Chamber Materia | Paint Spray | ||
| Chamber Humidity Range | 30%-50%RH(Light Cycle)30%~95%RH (Dark Cycle) | ||
| Humidity Uniformity | ≤±5%RH | ||
| Chamber Temperature | 20℃~80℃,Adjustable(double ntrol,38℃ or40℃±3℃ | ||
| Elack Panel Temperature | 30℃-95℃,Adjustable(double ntrol,65℃ or63℃±3℃) | ||
| Temperature Uniformity | ≤±2℃ | ||
| Filtef | Window filter,Daylight filter,Extend UV Filter | ||
| Light Source | Air Cooled Long Arc Xenon Lamp | ||
| rradiance Strength |
550~1120W/m²@290~800nm,Adjustable 0.3~1.3w/m'at double temperature control and 0.51w/m @340nm |
||
| Control System |
LCD Programmable Controller,Auto Display Irradiance Capacity:100 Groups Program,99 Cycles |
||
| llumination Time | 1~999 Hours,Adjustable | ||
| Water Spray System |
Water Spray Time 999 Minutes Settable Interval Spray Time,1-240 Minutes Settable.cycle settable |
||
| Power trigge | 3kW,AC220V,25±3A | ||
| Water Spray Nozzle | Diameter:0.8mm | ||
| Sample Holder | Stainless Steel 304 | ||
|
Distance From Sample Holder To Lamp |
250-300mm | ||
| Xenon Lamp Lifetime | 1200hours | ||
| Xenon Lamp Power | 2.5kW*3pcs=7.5kW | ||
| Power Supply | Three Phase,AC380V 50Hz | ||
| lrradiation | Automatic caloulus accumulates irradiation and stops,canbe customize | ||

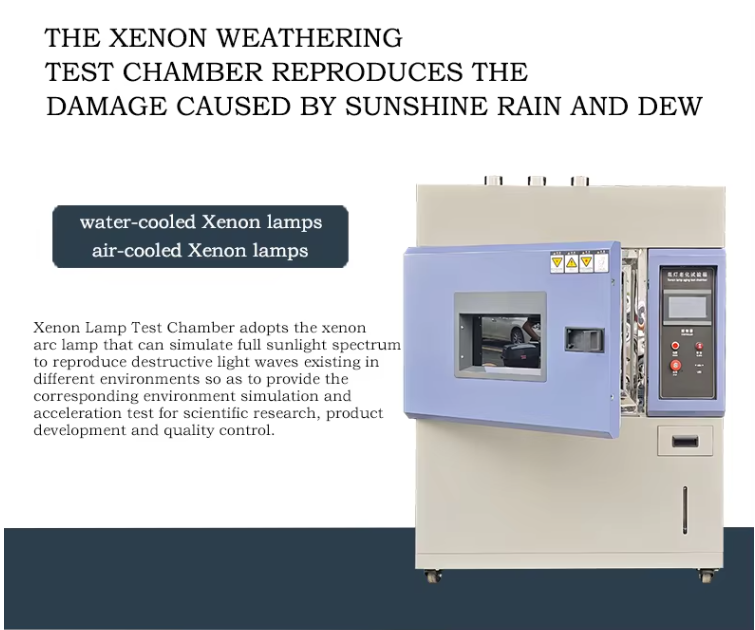

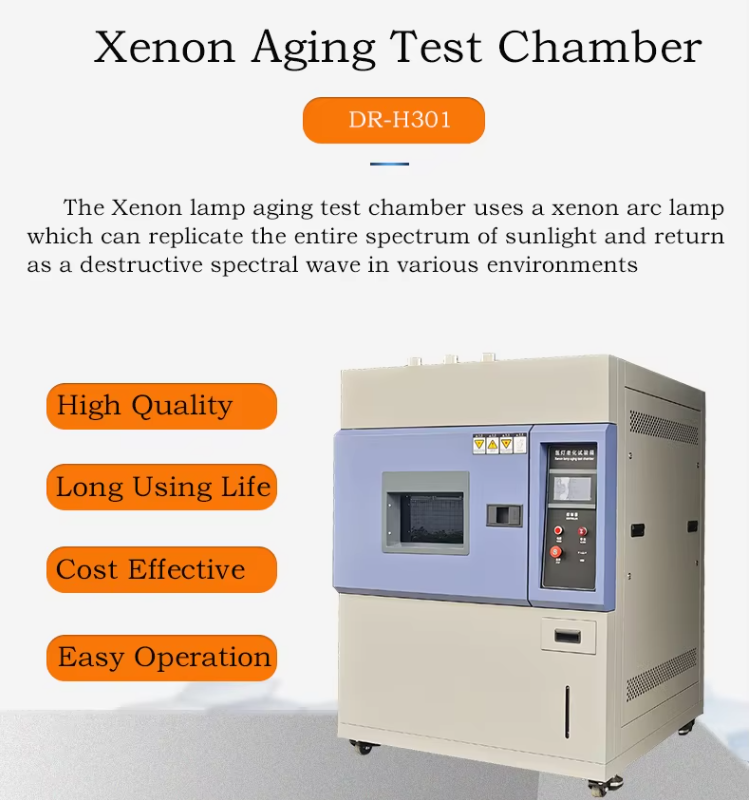

Customizable Xenon Test Chamber for Outdoor Product Testing
Engineer Durability, Optimize Performance, and Validate Products for Real-World Conditions
Develop superior outdoor products that withstand the challenges of nature with our Customizable Xenon Test Chamber**. Specifically designed for industries like automotive, construction, and outdoor goods manufacturing, this advanced testing solution replicates harsh environmental conditions—including UV exposure, extreme temperatures, and high humidity—to ensure your products perform reliably in the field. With fully customizable testing configurations and CE certification, this chamber helps R&D teams accelerate innovation, stay ahead of competitors, and meet compliance standards worldwide.**
1. Why Customization Matters for Outdoor Product Testing
Testing outdoor materials and products is more complex than it seems. Each product faces unique stress factors depending on its application and location. Off-the-shelf testing chambers often fail to address this challenge—leading to inconsistent results, wasted R&D time, and increased costs.
Key Challenges in Outdoor Product Testing
Environmental Variability: Outdoor conditions differ regionally—UV exposure in Florida isn't the same as in Stockholm.
Material-Specific Testing: Outdoor plastics, coatings, textiles, and elastomers each have different failure modes (e.g., cracking, discoloration, UV fading).
Costly Iterations: Inadequate testing results in prototypes failing in real-world use, leading to higher costs and delayed market entry.
Our Customizable Xenon Test Chamber solves these issues by allowing users to simulate highly localized environmental stress scenarios and create tailored test protocols that deliver precise, actionable results.
2. Applications and Benefits of Xenon Test Chambers for Outdoor Product Testing
A. Applications Across Industries
1. Automotive Testing
Test paint systems, bumper materials, and dashboard surfaces for UV durability, thermal expansion, and humidity resistance.
Validate real-world exposure to ensure consistent gloss retention and colorfastness meet Audi, BMW, or Mercedes-Benz quality expectations.
2. Coatings for Outdoor Structures
Assess anti-corrosion coatings on steel frames, polymer coatings on facades, or road markings for resistance to UV degradation, chalking, and cracking under sunlight and moisture conditions.
3. Outdoor Consumer Goods Testing
Simulate years of sun damage or weathering on outdoor furniture, signage, or textiles in just weeks to measure material resistance to aging for products like umbrellas, picnic equipment, and bags.
4. Construction Materials Testing
Measure how well sealants, adhesives, and roofing membranes respond to constant thermal cycling, moisture exposure, or UV rays to ensure compliance with ISO 16705 standards for durability.
B. Benefits of Our Test Chamber
Accelerate Testing Time: Achieve realistic aging results in weeks instead of months.
Ensure Compliance: Meet international testing standards like ISO 4892-2, ASTM G155, and SAE J2412.
Save on R&D Costs: Eliminate prototype failures by identifying weak points early.
Support Material-Specific Customization: From plastics in high-heat environments to textiles in humid rainforests, replicate unique conditions for every project.
3. Features That Set Our Xenon Test Chamber Apart
A. Fully Customizable Test Configurations
Light Spectrum Control: Adjust levels to replicate specific UV bands (UVA, UVB) or full solar simulations, depending on geographic exposure needs.
Load-Driven Programming: Customize test protocols for dynamic cycles—e.g., alternating UV exposure, thermal shocks, and moist conditions.
Multi-Sample Testing: Simultaneously test up to 12 samples to speed iterations and reduce R&D costs.
B. Realistic Environmental Simulations
Temperature Range: From -40°C to 85°C, for evaluating performance under extreme climates.
Example: Test how a polypropylene garden chair degrades under constant 50°C exposure in a subtropical summer.
Humidity Control: Simulate varying atmospheric moisture loads, from dry desert climates to humid rainforest environments (10%-95% RH).
Rain Spray Module: Recreate wet-dry cycles through programmable water application. Ideal for exterior paint testing, roofing membranes, and fabrics.
C. Built-in Sensors and Accurate Outputs
Integrated Xenon Sensors: Deliver real-time data on UV output, light intensity, and exposure levels with unparalleled consistency.
Material-Specific Outputs: Measure gloss retention, ΔE color shifts (per ISO 11664-4), tensile stress, and elongation simultaneously.
D. Full Compliance with Global Standards
Fully CE certified to meet EMC and mechanical safety standards (EN 1010-1, EN 61000-6-2).
Compatible with international test protocols:
ISO 4892-2 (Plastics)
ASTM G155 (Nonmetallic materials)
SAE J2412 (Automotive coatings)
E. Modular Design for Future-Proof Testing
Expandable humidity control and programmable spectral filters allow upgrades without overhauling your machine.
4. Real-World Case Studies
Case Study 1: Outdoor Furniture Testing - UV Resistance
Challenge: A furniture company experienced widespread complaints about discoloration and cracking in outdoor plastic chairs after prolonged exposure to sunlight.
Solution: Using customizable xenon test cycles, the team replicated 5,000 hours of UV exposure with programmable thermal cycling (40°C-65°C).
Key Results:
Identified early failure modes in existing formulations.
Modified material mix, increasing product lifespan by 40% and lowering warranty claims by 25%.
Case Study 2: Anti-Corrosion Coating Validation
Challenge: A coatings company developing anti-corrosion spray for exposed pipes struggled to prove durability against UV exposure and thermal expansion.
Solution: Simulated 1,000 hours of accelerated aging in high-UV, 40°C temperature, and 85% RH conditions, using integrated multi-sensor feedback for material strain analysis.
Key Results:
Reduced coating cracks by 60% via formula adjustments.
Achieved compliance with ISO 12944-6 standards, paving the way for international expansion.
Case Study 3: Textile Durability for Outdoor Gear
Challenge: A backpack manufacturer sought to ensure their products retained strength and color vibrancy after exposure to rain and heat.
Solution: Integrated the chamber’s rain spray module with UV cycles to test moisture cycles, UV fading, and thermal stress (85°C day/35°C night).
Key Results:
Reduced fading in high-visibility strips (30% improvement in ΔE readings).
Enhanced customer satisfaction through improved design durability and performance.
