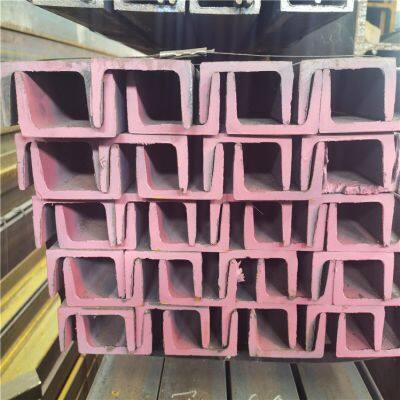

The C8×11.5 is a widely used American Standard C-Channel, known for its versatility and structural efficiency. Below is a detailed introduction to its specifications, material, mechanical properties, and applications.
1. Basic Parameters
| Parameter Name | Value |
|---|---|
| Model | C8×11.5 |
| Depth (h) | 8.00 inches (203.2 mm) |
| Flange Width (b) | 2.26 inches (57.4 mm) |
| Web Thickness (tw) | 0.22 inches (5.6 mm) |
| Flange Thickness (tf) | 0.39 inches (9.9 mm) |
| Weight | 11.5 lb/ft (17.1 kg/m) |
2. Material and Standards
Material: Typically made of ASTM A36 (carbon structural steel) or ASTM A572 (high-strength low-alloy steel).
Standards: Complies with ASTM A6/A6M standards.
3. Mechanical Properties
| Performance Indicator | Value |
|---|---|
| Yield Strength (Fy) | 36 ksi (250 MPa) |
| Tensile Strength (Fu) | 58-80 ksi (400-550 MPa) |
| Elongation | ≥ 21% |
4. Advantages and Features
Lightweight and Strong: With a weight of 11.5 lb/ft, it offers excellent strength-to-weight ratio.
Easy to Fabricate: The C-shape design allows for easy cutting, welding, and assembly.
Versatile Applications: Suitable for a wide range of structural and architectural uses.
Cost-Effective: Provides structural efficiency while minimizing material costs.
5. Applications
The C8×11.5 channel steel is widely used in:
Building Structures: Purlins, girts, and framing for residential, commercial, and industrial buildings.
Bridges: Secondary supports and bracing.
Industrial Facilities: Platforms, mezzanines, and equipment supports.
Infrastructure Projects: Signage, fencing, and lightweight structural frameworks.
6. Summary
The C8×11.5 is a high-quality American Standard C-Channel that combines strength, lightweight design, and ease of fabrication. Its versatility and cost-effectiveness make it a popular choice for various structural and architectural applications. For detailed technical parameters or procurement advice, feel free to contact us!
