Product Description of American Standard Channel C10×15.3
Product Name

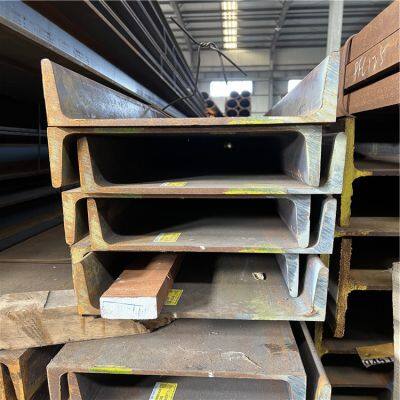

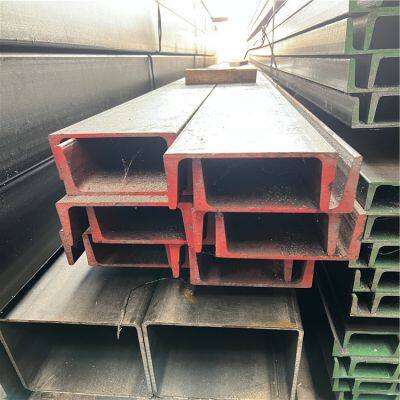

American Standard Channel (U-shaped Steel) C10×15.3 (ASTM Standard)
Specification Breakdown
Model: C10×15.3
C: Represents the channel's U-shaped cross-section.
10: Nominal depth (web height) of 10 inches (approx. 254 mm).
15.3: Theoretical weight of 15.3 lb/ft (approx. 22.77 kg/m).
Cross-Section Parameters (Typical values; refer to manufacturer data for specifics)
| Parameter | Imperial Units | Metric Units (Approx.) |
|---|---|---|
| Depth (h) | 10 in | 254 mm |
| Flange Width (b) | 2.6 in | 66 mm |
| Web Thickness (tw) | 0.436 in | 11.07 mm |
| Flange Thickness (tf) | 0.650 in | 16.51 mm |
| Cross-Sectional Area (A) | 4.48 in² | 2890 mm² |
| Moment of Inertia (Ix) | Approx. 78.9 in⁴ | Approx. 3.28×10⁶ mm⁴ |
Material & Standards
Material: Typically ASTM A36 structural steel; customizable (e.g., A572 Grade 50).
Standard: Complies with ASTM A36/A36M, suitable for welded, riveted, or bolted structural components.
Mechanical Properties (ASTM A36):
Yield Strength: ≥36 ksi (250 MPa)
Tensile Strength: 58–80 ksi (400–550 MPa)
Surface Treatment
Hot-rolled: Default delivery state with black oxide scale.
Optional: Sandblasting, galvanizing, or painting (specify requirements).
Applications
Building structures (beams, columns, braces)
Industrial equipment frames, machinery bases
Bridges, vehicle chassis
Warehouse shelving, platform supports
