Home > Instruments & Meters > Test Instrument > Test Machine > Model JBW Series Computer Screen Display Pendulum Impact Tester

Model JBW Series Computer Screen Display Pendulum Impact Tester

Model JBW Series Computer Screen Display Pendulum Impact Tester photo-1

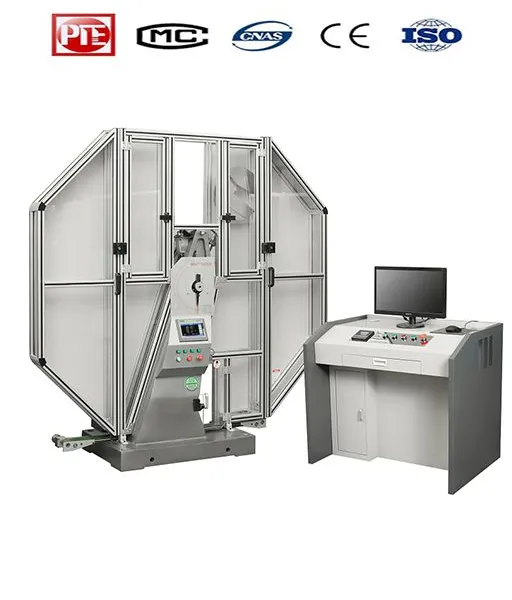

Model JBW Series Computer Screen Display Pendulum Impact Tester photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application & Features:

JBW Series Computer control Pendulum Impact Testing Machine were strictly designed according to national standard GB/T3038-2002 “ Inspection for pendulum Impact Testing Machine” and GB/T229-1994 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148-1983，ASTM E23 and EN10045. It is mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of clear zero and return automatically, capture the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the result can be displayed, stored and printed out. Hand box and computer program controlled alternative operating method.

Specifications:

Specifications	JBW-300	JBW-500	JBW-750C
Impact energy (J)	150, 300	250, 500	300, 450, 600, 750
Impact velocity (m/s)	5.2	5.4	5.24
Raised angle	150º
Standard span (mm)	40
Round angle of jaws (mm)	R1-1.5
Round angle of striking edge (mm)	R2-2.5
Size of specimen (mm)	10 x 10 x 55
Power supply	3phs, 380V, 50Hz or 220V, 60Hz
Dimensions (mm)	2124 x 600 x 1340	2144 x 736 x 1390	2450 x 1200 x 2455
Net Weight (kg)	450	650	2300
Display	Computer screen
