Home > Instruments & Meters > Test Instrument > Test Machine > Model LDW Series Digital Display Touch Screen Electromechanical Universal Testing Machine

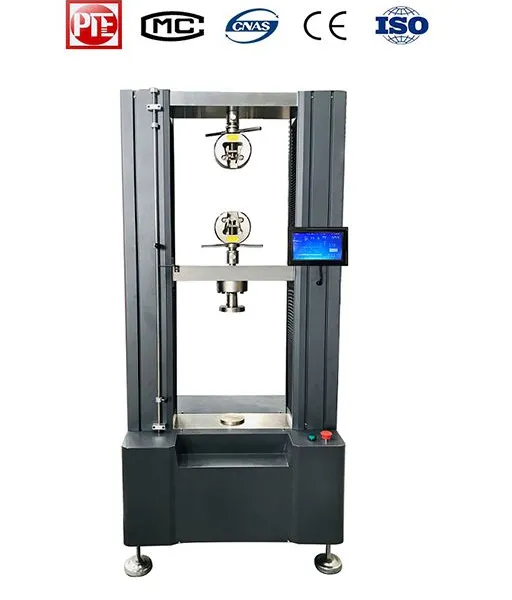

Model LDW Series Digital Display Touch Screen Electromechanical Universal Testing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application:

This kind of machine is widely used in metallurgy, machinery, building engineering and materials, automobile, and shipping industry, college, university, and quality assessment department, which can test the mechanical performance of metal, plastic, rubber, spring, all kinds of rope materials and other materials. It can meet global standards, such as ASTM, DIN, BS, JIS, GB, etc. It uses touch screen LCD controller to control machine.

LDW Series Main Specifications:

Model	LDW-300	LDW-200	LDW-100	LDW-50	LDW-20	LDW-10
Max. Load	300KN	200KN	100KN	50KN	20KN	10KN
Load accuracy	≤±1%
Load range	2%-100% of full scale
Test speed	0.1-250mm/min		0.1-500mm/min	0.1-500mm/min
Speed accuracy	≤±1%
Disp. resolution	0.01mm
Effective test width	570mm		500mm	440mm
Effective tensile space	600mm			600mm
Effective comp. space	700mm			700mm
Dimension	1130×650×2550mm		840×565×1750mm	830×565×1660mm
Power supply	380V, 3ph, 4/3KW		220V, 1ph, 1.5KW	220V, 1ph, 1KW
Weight	1800KG		720KG	460KG
Grips	Wedge type, plate type and other grips as consumer’s demand
Load frame type	Double column
