Home > Instruments & Meters > Test Instrument > Test Machine > Model JBS Series Digital Display Pendulum Impact Tester

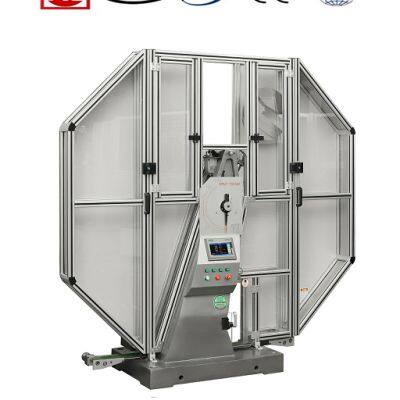

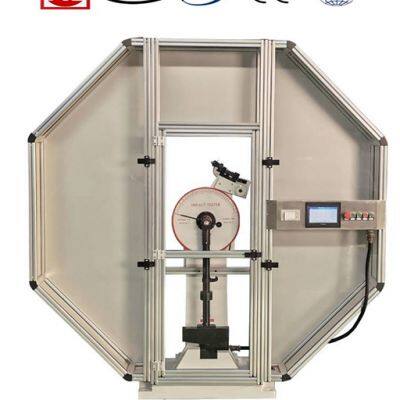

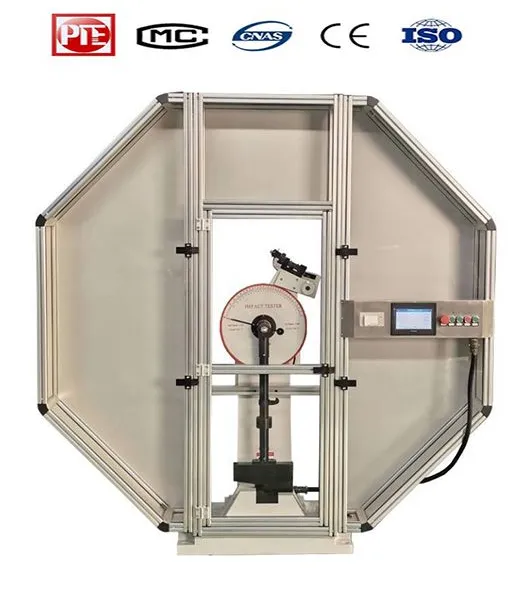

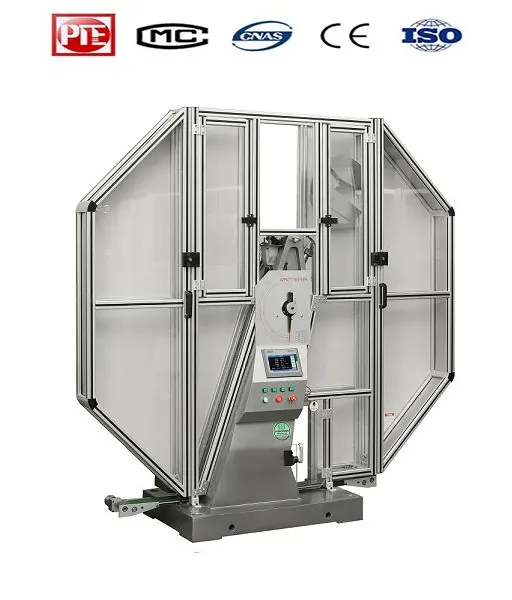

Model JBS Series Digital Display Pendulum Impact Tester

Model JBS Series Digital Display Pendulum Impact Tester thumbnail-3

Model JBS Series Digital Display Pendulum Impact Tester photo-1

Model JBS Series Digital Display Pendulum Impact Tester photo-2

Model JBS Series Digital Display Pendulum Impact Tester photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application:

This product was strictly designed according to national standard GB/T3038 “Inspection for pendulum Impact Testing Machine” and GB/229 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148, EN100045 and ASTM E23. It is mainly used to determine the anti-impact capability of metal materials under dynamic load. It is the ideal testing equipment for many metal material manufactories, quality inspection departments and universities. The result will display on both digital display and dial gauge, with PLC control, its reliability is very good, JBS Series can use pendulum’s residual impact energy to achieve the raising again of pendulum, so it’s applicable for batch testing tasks.

Specifications:

Specifications	JBS-300	JBS-500	JBS-750C
Impact energy (J)	150, 300	250, 500	300, 450, 600, 750
Impact velocity (m/s)	5.2	5.4	5.24
Raised angle (º)	150
Standard span (mm)	40
Round angle of jaws (mm)	R1-1.5
Round angle of striking edge (mm)	R2-2.5
Size of specimen (mm)	10 x 10 x 55
Power supply	3phs, 380V, 50Hz,
Dimensions (mm)	2124 x 600 x 1340	2144 x 736 x 1390		2450 x 1200 x 2455
Net Weight (kG)	450	650		1800
Display	LCD Touch screen
