Home > Instruments & Meters > Test Instrument > Test Machine > Model JB Series Pendulum Impact Testing Machine

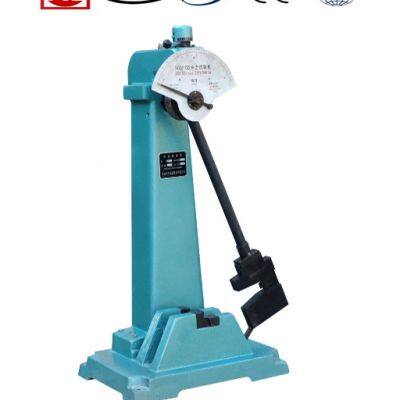

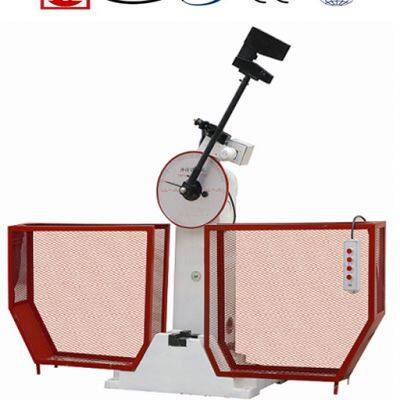

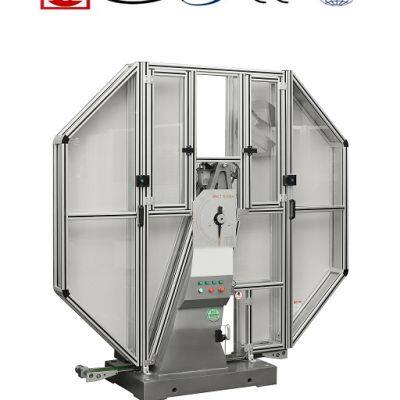

Model JB Series Pendulum Impact Testing Machine

Model JB Series Pendulum Impact Testing Machine thumbnail-3

Model JB Series Pendulum Impact Testing Machine photo-1

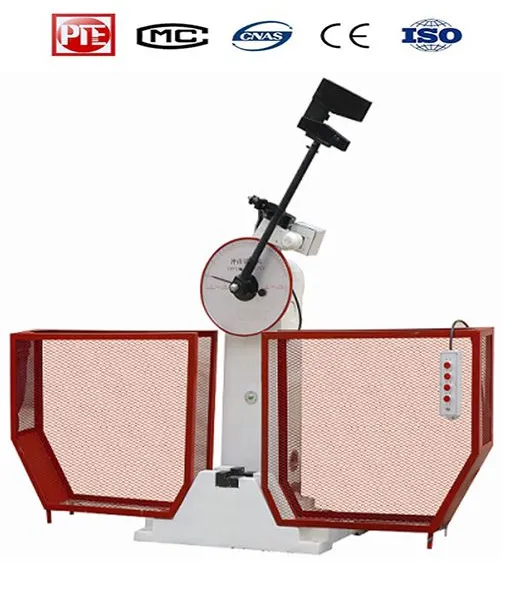

Model JB Series Pendulum Impact Testing Machine photo-2

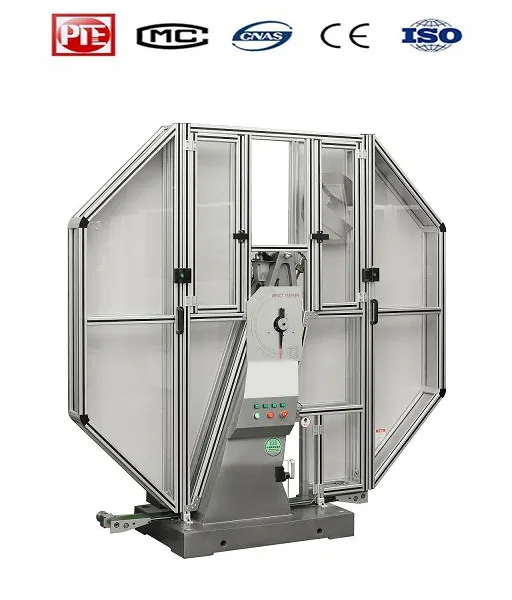

Model JB Series Pendulum Impact Testing Machine photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application:

This kind of machine is used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. It is designed according to national standard GB/T3808 “Charpy Impact Test Method for Metals”

It is also accordance with international standard ISO148, EN10045 and ASTM E23. It has the features of easy operation, high efficiency, safe and reliable. The machine is especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

Specifications:

Specifications	JB-300	JB-300B	JB-500B	JB-750C
Impact energy (J)	150, 300	150, 300	300, 500	300, 450, 600, 750
Impact velocity (m/s)	5	5.2	5.4	5.24
Raised angle (º)	135	150
Standard span (mm)	40	40
Round angle of jaws (mm)	R1-1.5	R1-1.5
Round angle of striking edge (mm)	R2-2.5	R2-2.5
Size of specimen (mm)	10 x 10 x 55	10 x 10 x 55 or special sample
Power supply	Manual, no power	3phs, 380V, 50Hz or 220V,60Hz
Dimensions (mm)	1000 x 630 x 1520	2124 x 600 x 1340	2144 x 736 x 1390	2450 x 1200 x 2455
Net Weight (kg)	320	450	650	1800
