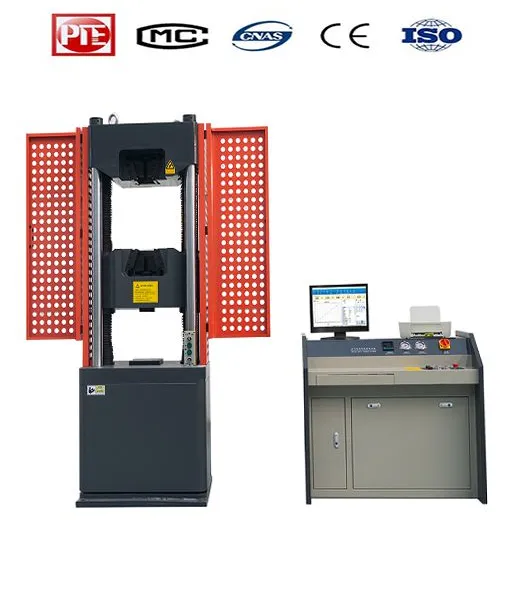

Help CenterModel WAW-F Series Computer Control Servo Hydraulic Universal Testing Machine
Related Products
-
Model WAW-C Series Computer Control Servo Hydraulic Universal Testing MachineNegotiableMOQ: 1 Set -
Model WAW-L Series Computer Control Servo Hydraulic Universal Testing MachineNegotiableMOQ: 1 Set
-
Model WE-C Series Analog Hydraulic Universal Testing MachineNegotiableMOQ: 1 Set
-
Model WE-C-C Series Computer Screen and Analog Double Display Hydraulic Universal Testing MachineNegotiableMOQ: 1 Set
-
Model WEW-E Series Computer Screen Display Hydraulic Universal Testing MachineNegotiableMOQ: 1 Set
Machine Features:
1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;
Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.
2. Displacement measurement: adopts optical encoder with high accuracy and stability;
3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.
4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;
5. Clamp automatically: uses hydraulic grips with reliable holding;
6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;
7. Test report can be acquired according to requirements of customers;
8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;
9. Stable performance with little influence of temperature and voltage;
10. Multiple Servo control mode：Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc
Main specifications:
|
Model
Specifications |
WAW-300F |
WAW-600F |
WAW-1000F |
WAW-200F |
||
Max. Testing Load (kN) |
300 |
600 |
1000 |
2000 |
||
Load resolution |
1/200000 |
|||||
Load Accuracy |
≤±1% from 2% to 100% of full scale |
|||||
Displacement Accuracy |
≤±0.5% |
|||||
Displacement resolution |
0.01mm |
|||||
Strain accuracy |
≤±0.5% |
|||||
Strain resolution |
0.001mm |
|||||
Control Mode |
Servo Control |
|||||
Load frame Type |
4-column and 2-screw structure |
|||||
Stress rate range |
1—60（N/mm2）S-1 |
|||||
Strain rate range |
0.00025/S—0.0025/S |
|||||
Max. tensile space (Including piston Travel) mm |
600 |
700 |
700 |
850 |
||
Max. Compression space (mm) |
550 |
600 |
600 |
750 |
||
Round specimen grip (mm) |
Ф10-32 |
Ф10-40 |
Ф13--55 |
Ф15--70 |
||
Flat Sample Clipping Thickness (mm) |
0-25 |
0-30 |
0-40 |
10-75 |
||
Ram stroke (mm) |
200 |
200 |
250 |
250 |
||
Max. Distance Between Two Fulcrums of Bending Test (mm) |
400 |
480 |
600 |
820 |
||
Lifting Speed of Mobile Beams (mm/min) |
180 |
|||||
Distance Between Two Column (mm) |
520 |
570 |
545 |
705 |
||
Dimensions of the Machine (mm) |
Load Frame |
750x650x2000 |
800x750x2150 |
900x890x2350 |
1300x1210x3150 |
|
Hydraulic power pack |
1050×770×1280 |
1200x600x750 |
1200x600x750 |
1200x600x750 |
||
Approx. Weight (KG) |
2000 |
2500 |
3600 |
8600 |
||
