Home > Instruments & Meters > Test Instrument > Test Machine > Model WEW-F Series Computer Screen Display Hydraulic Universal Testing Machine

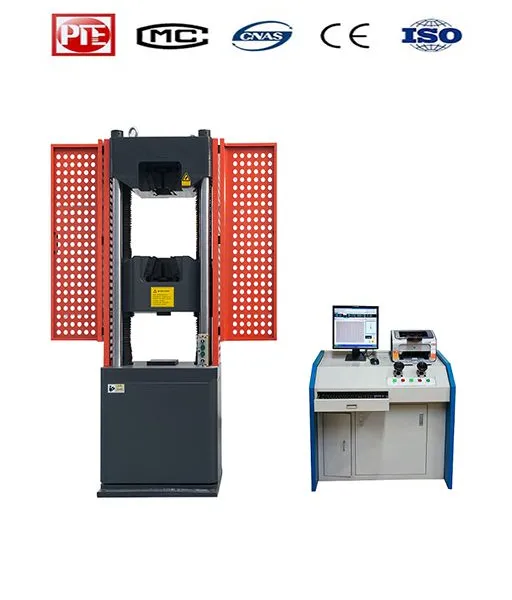

Model WEW-F Series Computer Screen Display Hydraulic Universal Testing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Applications:

WEW-F Series Testing machine are guaranteed to meet ISO15579-2000, ISO679, ISO7438-1985, ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998, ISO75000-1, ISO4012, ISO10065 and other international and national specifications, which are suitable for tension, compression, bending, shear, and other tests by adding different test fixture for metal and non-metal materials. It adopts hydraulic power pack to drive the piston in the oil cylinder to provide testing load. By using load cell and photoelectric encoder, the computer is timely showing the testing parameters like testing load, piston stroke, deformation of specimen and various kinds of testing curves etc. This machine is manual control mode and the computer with strong function software does data processing and issues the test reports.

Main specifications:

Model Specifications		WEW-300F	WEW-600F	WEW-1000F	WEW-200F
Max. Testing Load (kN)		300	600	1000	2000
Load resolution		1/200000
Load Accuracy		≤±1% from 2% to 100% of full scale
Displacement Accuracy		≤±0.5%
Displacement resolution		0.01mm
Strain accuracy		≤±0.5%
Strain resolution		0.001mm
Control Mode		Manual Control
Load frame Type		4-column and 2-screw structure
Max. tensile space (Including piston Travel) mm		600	700	700	850
Max. Compression space (mm)		550	600	600	750
Round specimen grip (mm)		Ф10-32	Ф10-40	Ф13--55	Ф15--70
Flat Sample Clipping Thickness (mm)		0-25	0-30	0-40	10-75
Ram stroke (mm)		200	200	250	250
Max. Distance Between Two Fulcrums of Bending Test (mm)		400	480	600	820
Lifting Speed of Mobile Beams (mm/min)		180
Distance Between Two Column (mm)		520	570	545	705
Dimensions of the Machine (mm)	Load Frame	750x650x2000	800x750x2150	900x890x2350	1300x1210x3150
	Hydraulic power pack	1050×770×1280	1200x600x750	1200x600x750	1200x600x750
Approx. Weight (KG)		2000	2500	3600	8600
