Home > Instruments & Meters > Test Instrument > Test Machine > Model WAW-D Series Computer Control Servo Hydraulic Universal Testing Machine

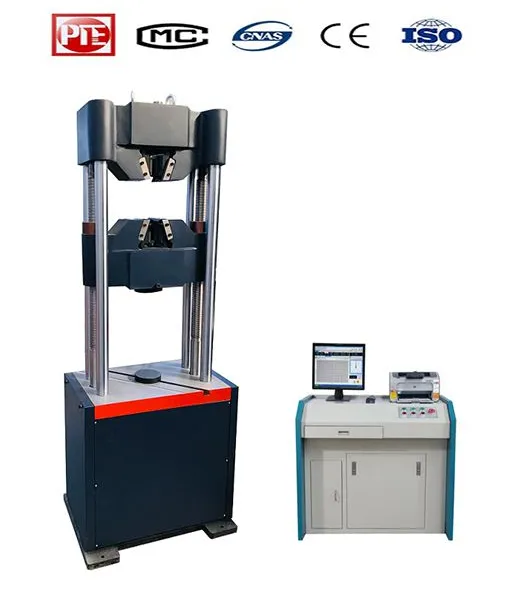

Model WAW-D Series Computer Control Servo Hydraulic Universal Testing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Port of Shipment:

Qingdao

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Northern Europe, Southern Europe

Contact Supplier Request Quote Chat Now

Jinanprecision Testing Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Machine Features:

1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;

Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.

2. Displacement measurement: adopts optical encoder with high accuracy and stability;

3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.

4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;

5. Clamp automatically: uses hydraulic grips with reliable holding;

6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;

7. Test report can be acquired according to requirements of customers;

8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;

9. Stable performance with little influence of temperature and voltage;

10. Multiple Servo control mode：Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc

Main specifications:

Model Specifications		WAW-100D	WAW-300D	WAW-600D	WAW-1000D	WAW-2000D
Max. Testing Load (kN)		100	300	600	1000	2000
Load resolution		1/200000
Load Accuracy		≤±1% from 2% to 100% of full scale
Displacement Accuracy		≤±0.5%
Displacement resolution		0.01mm
Strain accuracy		≤±0.5%
Strain resolution		0.001mm
Control Mode		Servo Control
Load frame Type		4-column and 2-screw structure
Stress rate range		1—60（N/mm²）S^-1
Strain rate range		0.00025/S—0.0025/S
Max. tensile space (Including piston Travel) mm		600	600	700	700	850
Max. Compression space (mm)		550	550	600	600	750
Round specimen grip (mm)		Ф10-32	Ф13-32	Ф13-40	Ф20--60	Ф20--60
Flat Sample Clipping Thickness (mm)		0-15	0-15	0-30	0-40	0-40
Ram stroke (mm)		200	200	250	250	250
Max. Distance Between Two Fulcrums of Bending Test (mm)		400	400	480	550	700
Lifting Speed of Mobile Beams (mm/min)		>200
Distance Between Two Column (mm)		460	500	505	545	705
Dimensions of the Machine (mm)	Load Frame	750×530×1930	750×530×1930	840×600×2130	910×640×2250	1170×800×2750
	Hydraulic power pack	1200x600x750	1050×770×1280	1200x600x750	1200x600x750	1200x600x750
Approx. Weight (KG)		1200	1200	1700	2100	5000
