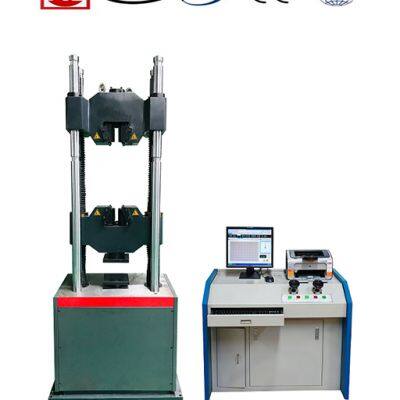

Model WEW-E Series Computer Screen Display Hydraulic Universal Testing Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Applications:

WEW-E Series Testing machine are guaranteed to meet ISO15579-2000, ISO679, ISO7438-1985, ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998, ISO75000-1, ISO4012, ISO10065 and other international and national specifications, which are suitable for tension, compression, bending, shear, and other tests by adding different test fixture for metal and non-metal materials. It adopts hydraulic power pack to drive the piston in the oil cylinder to provide testing load. By using load cell and photoelectric encoder, the computer is timely showing the testing parameters like testing load, piston stroke, deformation of specimen and various kinds of testing curves etc. This machine is manual control mode and the computer with strong function software does data processing and issues the test reports.

Main specifications:

Model Specifications		WEW-500E	WEW-600E	WEW-1000E	WEW-2000E
Max. Testing Load (kN)		500	600	1000	2000
Load resolution		1/200000
Load Accuracy		≤±1% from 2% to 100% of full scale
Displacement Accuracy		≤±0.5%
Displacement resolution		0.001mm
Strain accuracy		≤±0.5%
Strain resolution		0.0001mm
Control Mode		Manual Control
Load frame Type		4-column and 2-screw structure
Max. tensile space (Including piston Travel) mm		750	750	750	1000
Max. Compression space (mm)		620	620	620	850
Round specimen grip (mm)		Ф13-40	Ф13-40	Ф13-60	Ф13--80
Flat Sample Clipping Thickness (mm)		0-15	0-15	0-30	10-50
Ram stroke (mm)		250	250	250	250
Max. Distance Between Two Fulcrums of Bending Test (mm)		600	600	600	720
Lifting Speed of Mobile Beams (mm/min)		>200
Distance Between Two Column (mm)		435	500	565	580
Dimensions of the Machine (mm)	Load Frame	120×560×1940	770×600×2130	900×660×2380	1300×900×3220
	Hydraulic power pack	1050×770×1280	1050×770×1280	1050×770×1280	1050×770×1280
Approx. Weight (KG)		1860	1860	3000	7500
