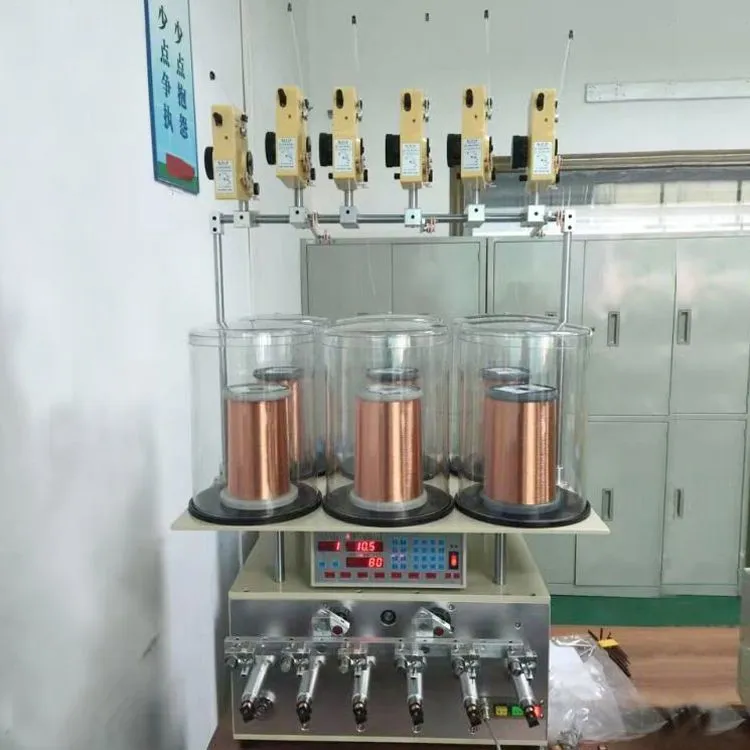

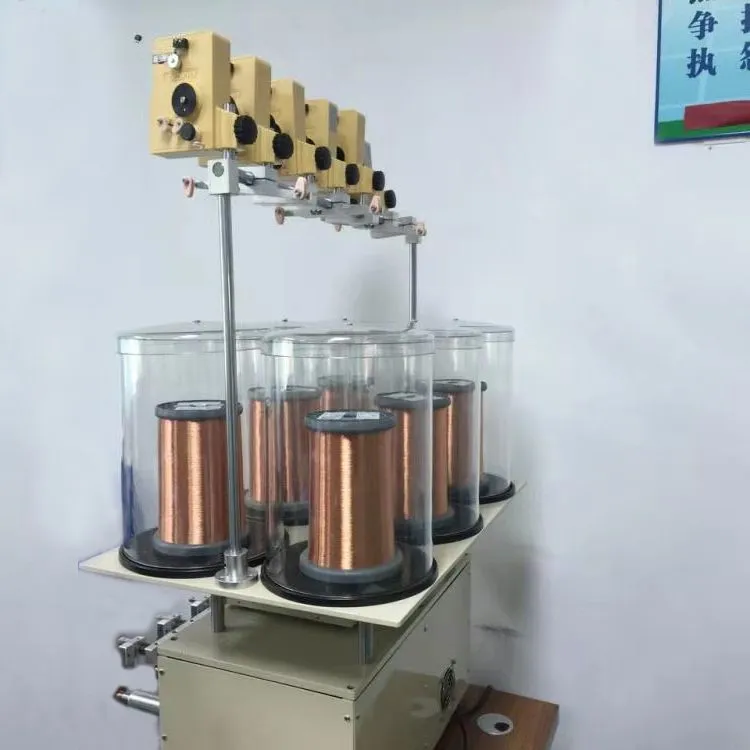

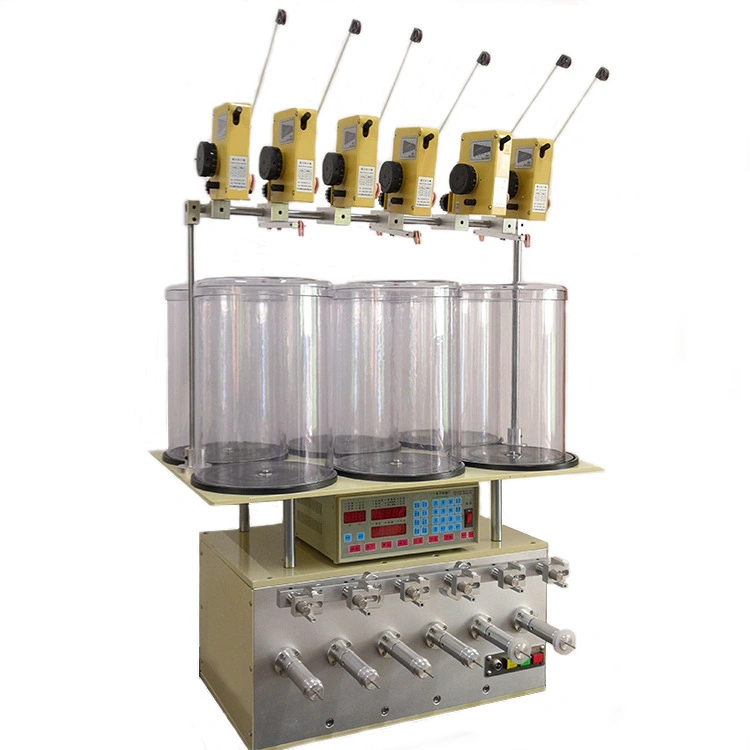

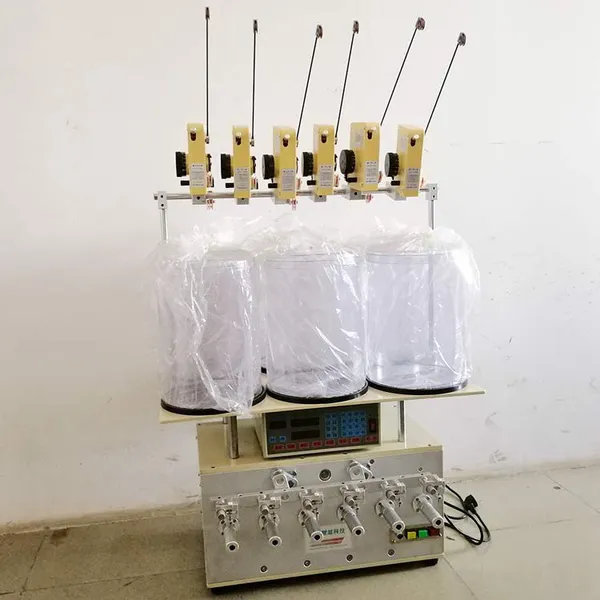

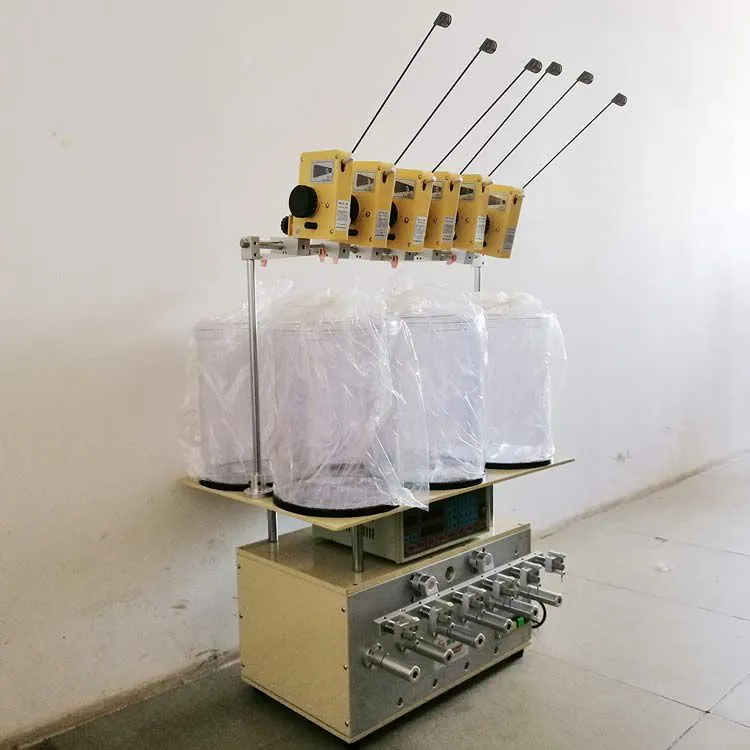

Help CenterHY-R11 Transformer Six-axis CNC Automatic Winding Machine
Related Products
-
HY-R09 Transformer Four-axis CNC Automatic Winding MachineUS$ 1070 - 1206MOQ: 1 Unit -
HY-R08 Thick Wire Transformer High Torque Winding MachineUS$ 1780 - 1955MOQ: 1 Unit
-
HY-R07 Transformer Inductor Medium Torque CNC Single Axis Winding MachineUS$ 934 - 988MOQ: 1 Unit
-
HY-R06 Transformer CNC Single-axis Winding MachineUS$ 397 - 438MOQ: 1 Unit
-
HY-R10 Transformer Inductor Coil CNC Double-axis Winding MachineUS$ 508 - 535MOQ: 1 Unit
Winder function:
Controller with the latest sync with the lotus root cable; high precision; high intelligent mode; self-test function. Including setting error, speeding tracking and speed of more accurate, with speed detection function, can automatically reduce the spindle speed to the most stable state.
Winder use

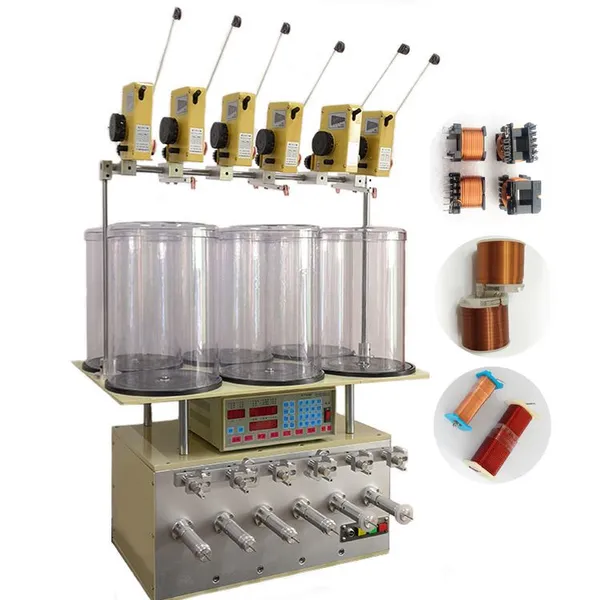

The purpose of a winding machine is to coil around a variety of different sizes (transformer coils, motor windings, inductors, etc.).
Winder advantages:
1. AC inverter, brushless motor, energy saving, easy to operate, maintenance-free.
2. Multi-functional microcomputer design, data easy to set, and shut down to save data.
3. In the middle of the winding can be amended around the cable head position, more convenient for a special coil or high precision coil winding.
4 special function design, can assist from around the point and width position to find.
5. 0 ~ 999 sets of steps to set the capacity, special motor winding frequency and precision stepper motor cable, can be easily set forward and reverse, sparse winding work.
| Applicable diameter | 0.03-0.6mm |
| Maximum revolutions | 9000 rpm |
| Number of spools | 6 |
| Cable width | 0-110mm |
| Winding motor | Brushless 600W |
| Cable motor | Stepper |
| Number of memory groups | 1000 groups |
| Power supply voltage | AC220V / 50HZ |
| Machine Size (mm) | L700 * W470 * H1000 |
| Machine weight | 80kg |
