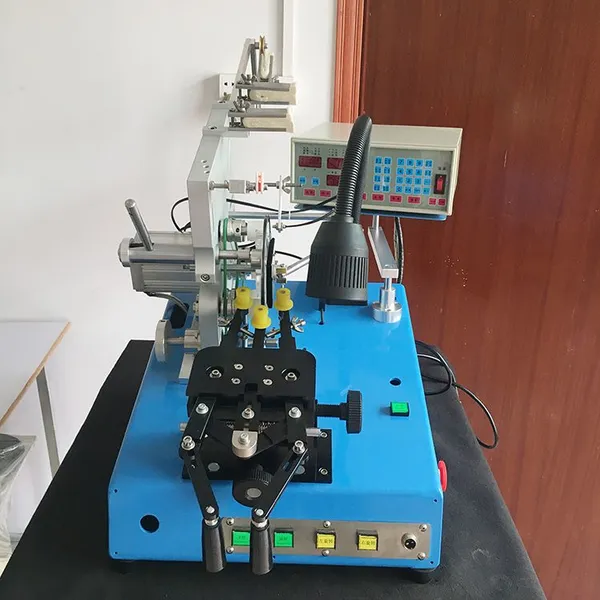

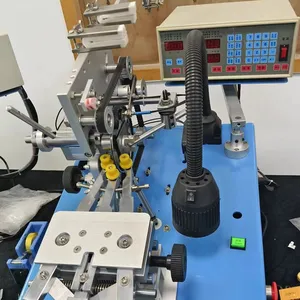

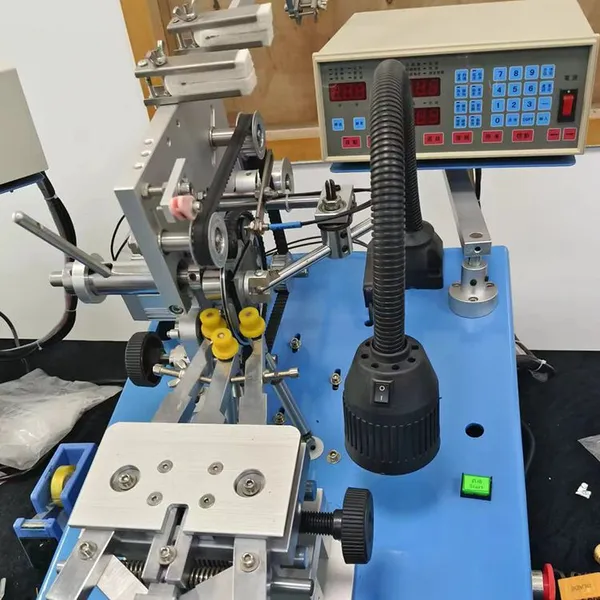

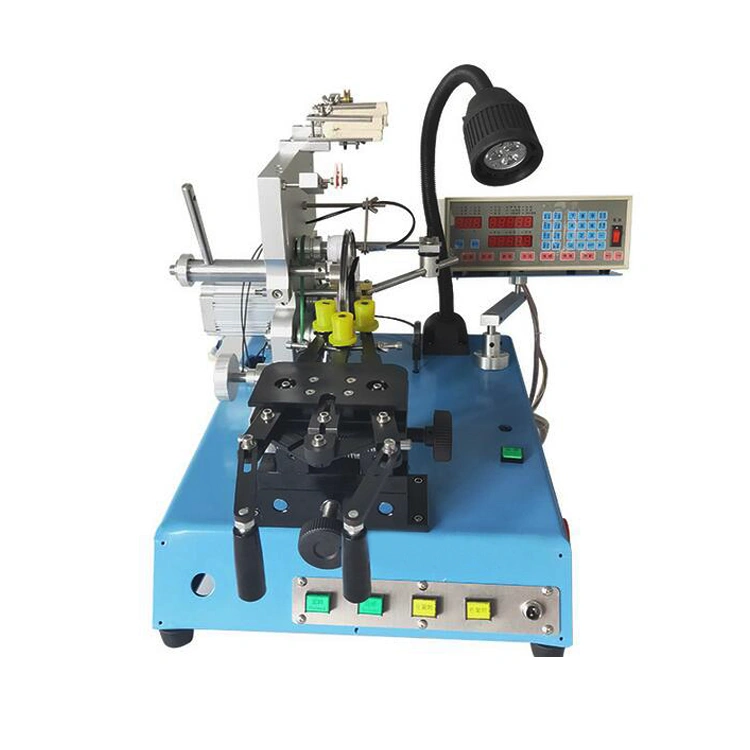

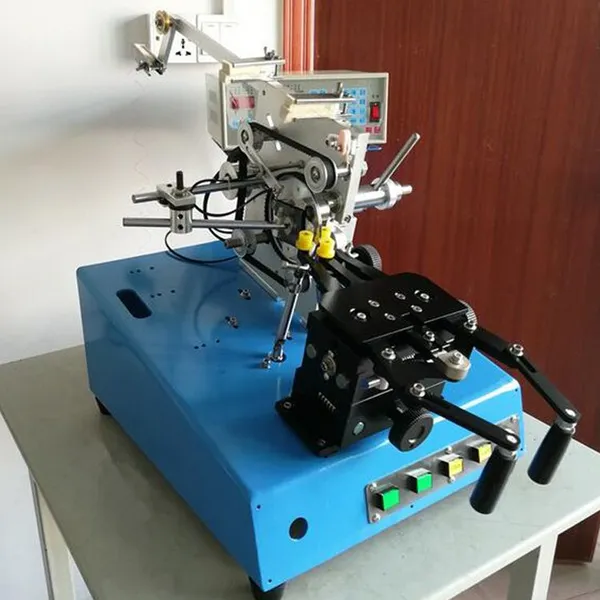

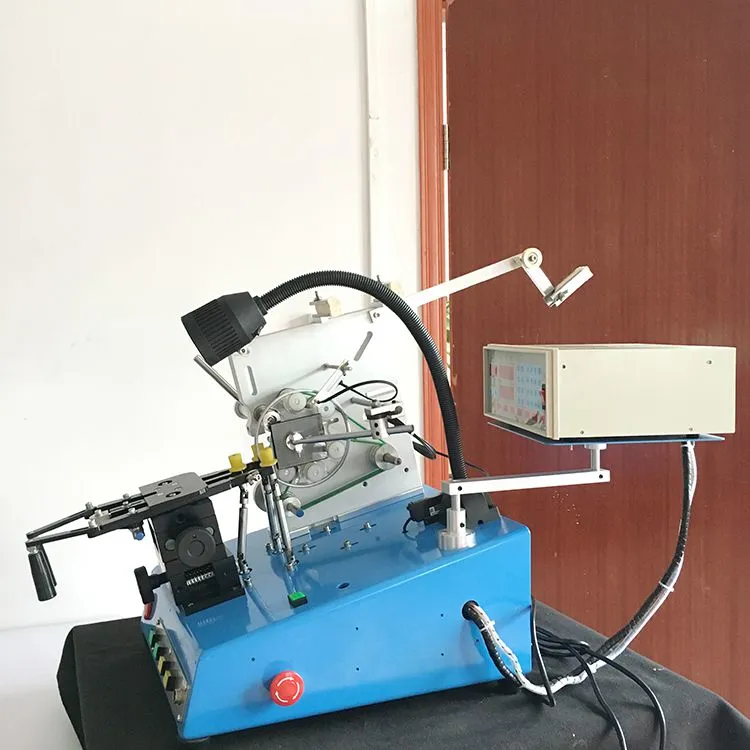

Help CenterHY-R23 Desktop 3-inch to 8-inch Gear-type Magnetic Ring Winding Machine
Related Products
-
HY-R27 Electric Intelligent Magnetic Ring Hook Wire Winding MachineUS$ 3970 - 4380MOQ: 1 Unit -
HY-R28 Pneumatic Magnetic Ring Hook Wire Winding MachineUS$ 1310 - 1378MOQ: 1 Unit
-
HY-H02 Lead-free Pure Titanium Environmentally Friendly Jet Type Large Nozzle Tin FurnaceUS$ 1515 - 1655MOQ: 1 Unit
-
HY-H07 Motor Stator Automatic Spray Soldering Furnace (up and Down Positioning Soldering)US$ 1946 - 2085MOQ: 1 Unit
-
HY-M106 Straight up and Straight Down Automatic Lifting Soldering FurnaceUS$ 418 - 502MOQ: 1 Unit
For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.
| Model specification | HY-R23 side slip ring winding machine |
| Wire diameter size | 0.05-0.35mm |
| Lap range | 50-4000T |
| Storage ring width | 2.0-10mm |
| Motor speed | 0-2800 |
| Number of memory groups | 1000 |
| voltage | 220v/50HZ |
| Chassis size | 900X700X600mm |
| Machine weight | 40Kg (Packing wooden box 66kg) |
| Model specification | HY-R25 Belt type ring winding machine |
| Wire diameter size | 0.15-1.4mm |
| Lap range | 15-1500T |
| Storage ring width | 2.0-10mm |
| Motor speed | 0-2200 |
| Number of memory groups | 1000 |
| voltage | 220v/50HZ |
| Chassis size | 900X700X600mm |
| Machine weight | 40Kg (Packing wooden box 66kg) |
