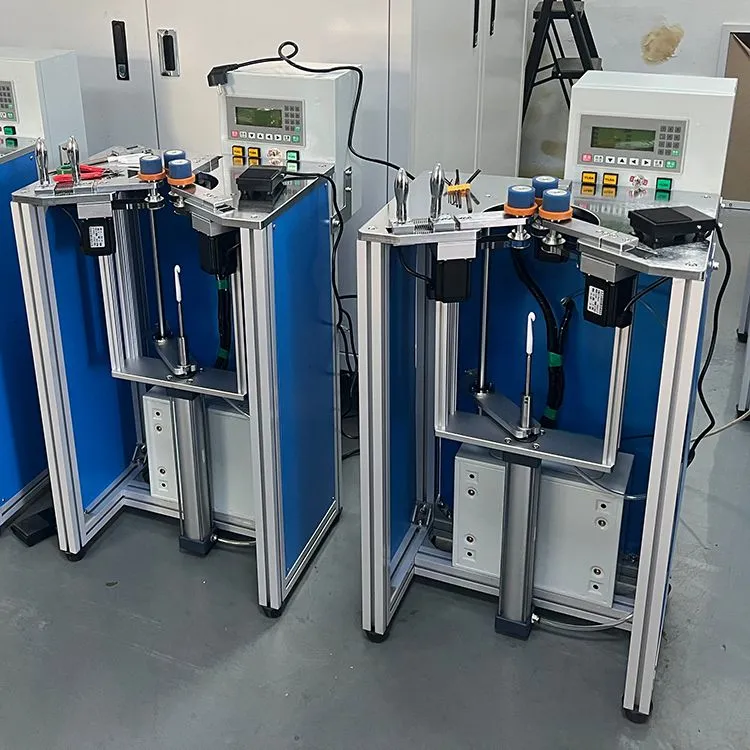

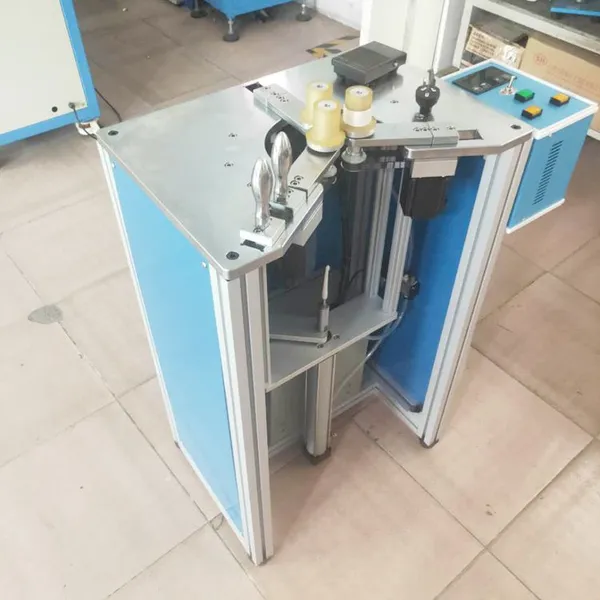

Help CenterHY-R28 Pneumatic Magnetic Ring Hook Wire Winding Machine
Related Products
-
HY-R23 Desktop 3-inch to 8-inch Gear-type Magnetic Ring Winding MachineUS$ 1378 - 1516MOQ: 1 Unit -
HY-R27 Electric Intelligent Magnetic Ring Hook Wire Winding MachineUS$ 3970 - 4380MOQ: 1 Unit
-
HY-H02 Lead-free Pure Titanium Environmentally Friendly Jet Type Large Nozzle Tin FurnaceUS$ 1515 - 1655MOQ: 1 Unit
-
HY-H07 Motor Stator Automatic Spray Soldering Furnace (up and Down Positioning Soldering)US$ 1946 - 2085MOQ: 1 Unit
-
HY-M106 Straight up and Straight Down Automatic Lifting Soldering FurnaceUS$ 418 - 502MOQ: 1 Unit
Advantages of pneumatic crochet winding machine
Use the foot switch to start, convenient and fast and control the crochet hook to move up and down.
The cable uses optical sensors to calculate the number of coils, which is fast and accurate,
and improves production efficiency
Special crochet hook for precision processing, does not hurt the enameled wire.
Pneumatic crochet method is used to complete the inner diameter and the enameled
wire diameter is less limited
Power supply voltage: two-phase 220V
Total power: 200W
Air pressure: 0.5-0.7Mpa
Finished outer diameter: 27mm-80mm
Finished inner diameter: 10mm
It can be wound with 3.0mm wire diameter, and can be double-wired in parallel.
Note: Configure PLC control 3 groups of stepping motors, can be forward and reverse,
electronic counting function, angle function.

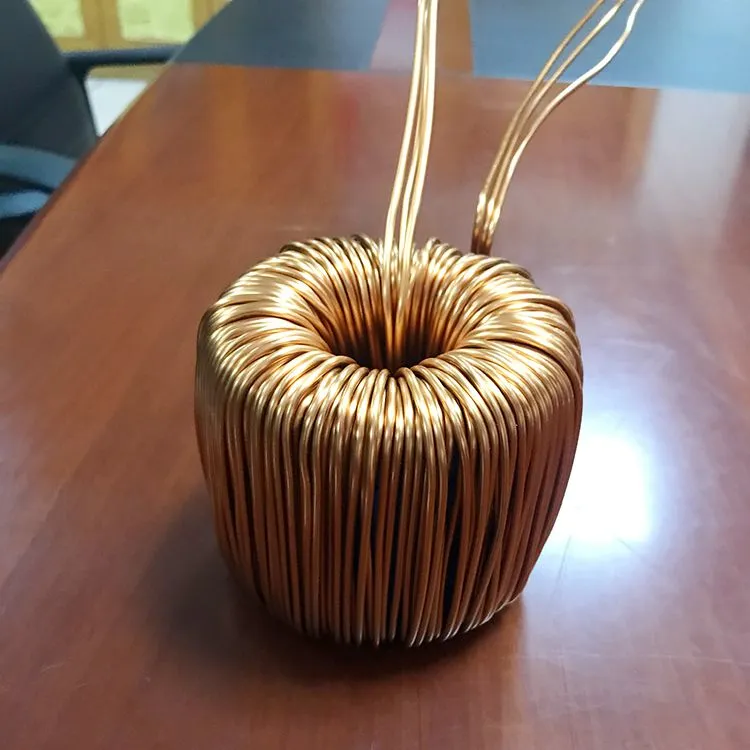

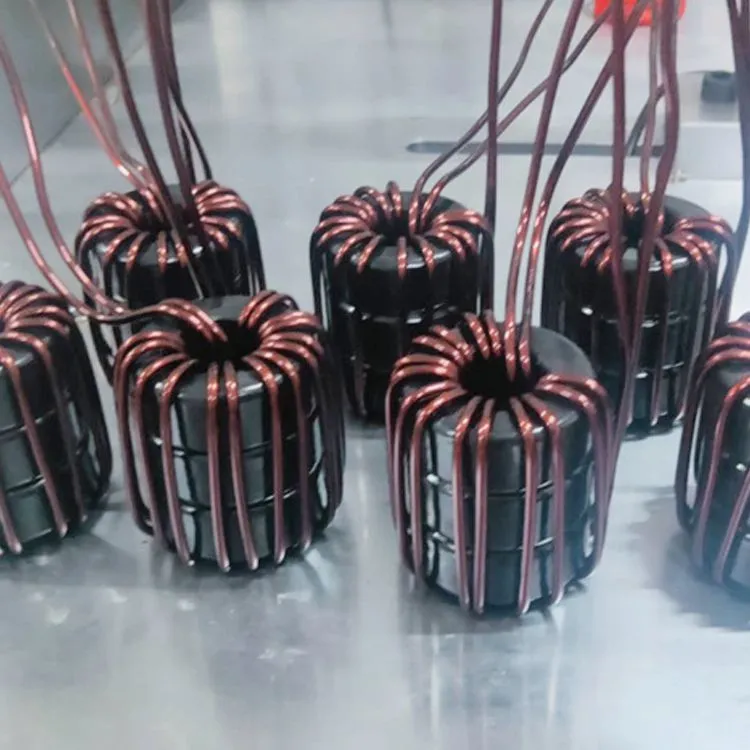

Toroidal winding machine suitable for large and special magnetic rings
| Wire diameter | 0.3-3.0mm |
| power supply | AC220V/50HZ |
| Inner diameter range | Depends on crochet size |
| Start method | Air pressure control |
| Winding method | Pneumatic drive crochet winding |
| Total power | 200W |
| Air pressure | 0.5-0.7Mpa |
| Finished outer diameter | 27mm-80mm |
| Machine Size (mm) | 1000*500*350mm |
| Machine weight | 40kg |
