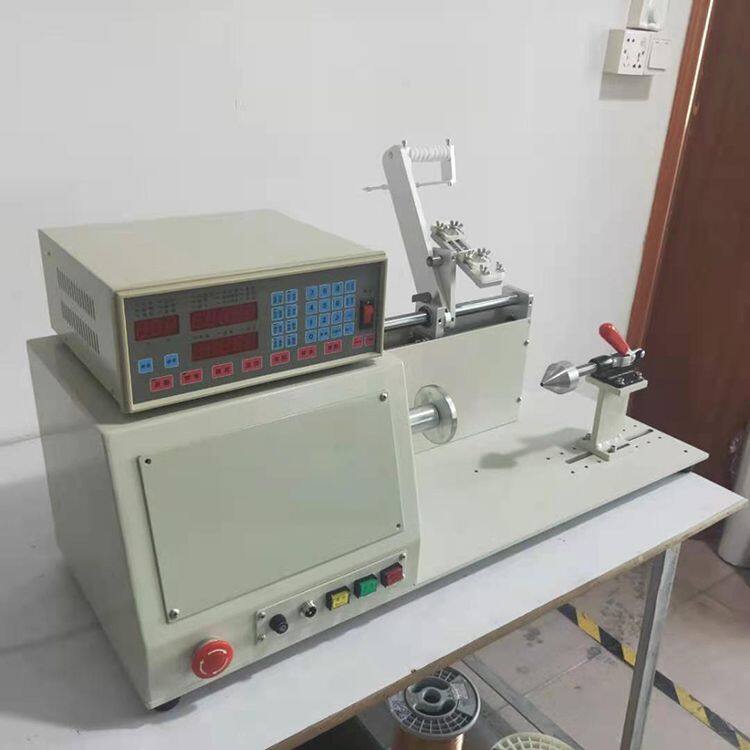

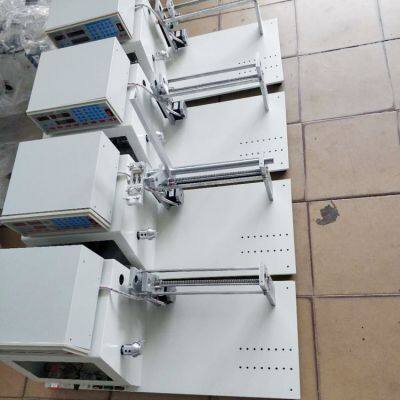

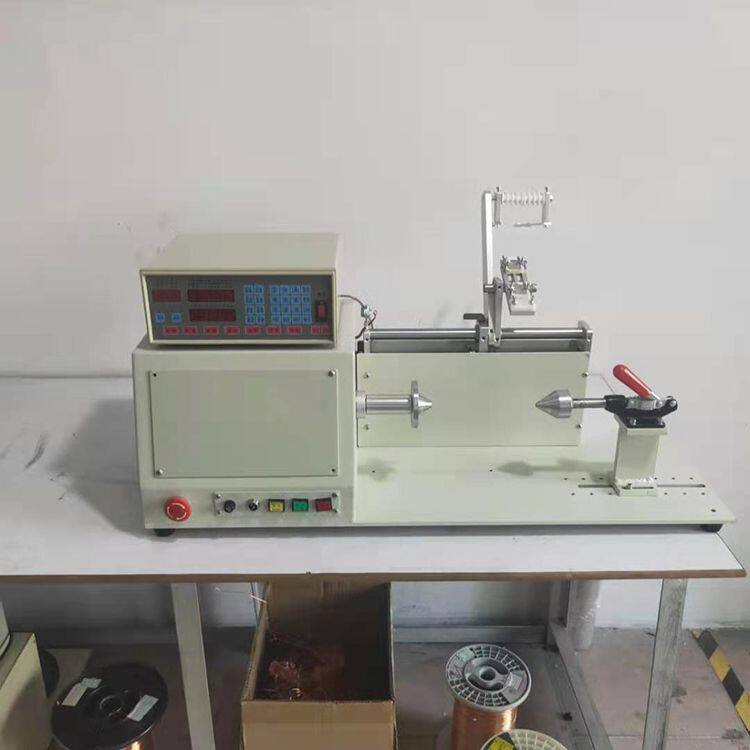

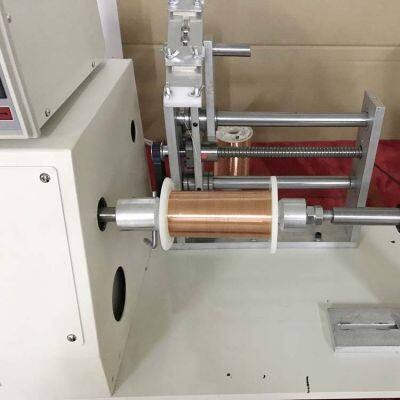

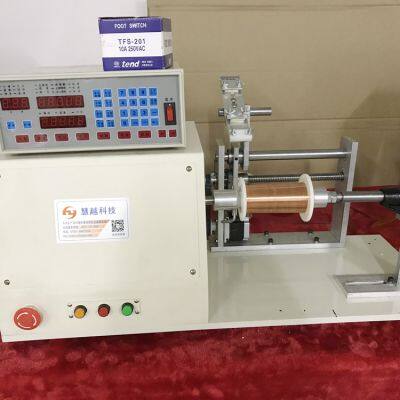

Help CenterHY-R01 Enameled Copper Wire Splitter Winding Machine
Related Products
-
HY-R11 Transformer Six-axis CNC Automatic Winding MachineUS$ 1165 - 1343MOQ: 1 Unit -
HY-R09 Transformer Four-axis CNC Automatic Winding MachineUS$ 1070 - 1206MOQ: 1 Unit
-
HY-R08 Thick Wire Transformer High Torque Winding MachineUS$ 1780 - 1955MOQ: 1 Unit
-
HY-R07 Transformer Inductor Medium Torque CNC Single Axis Winding MachineUS$ 934 - 988MOQ: 1 Unit
-
HY-R06 Transformer CNC Single-axis Winding MachineUS$ 397 - 438MOQ: 1 Unit

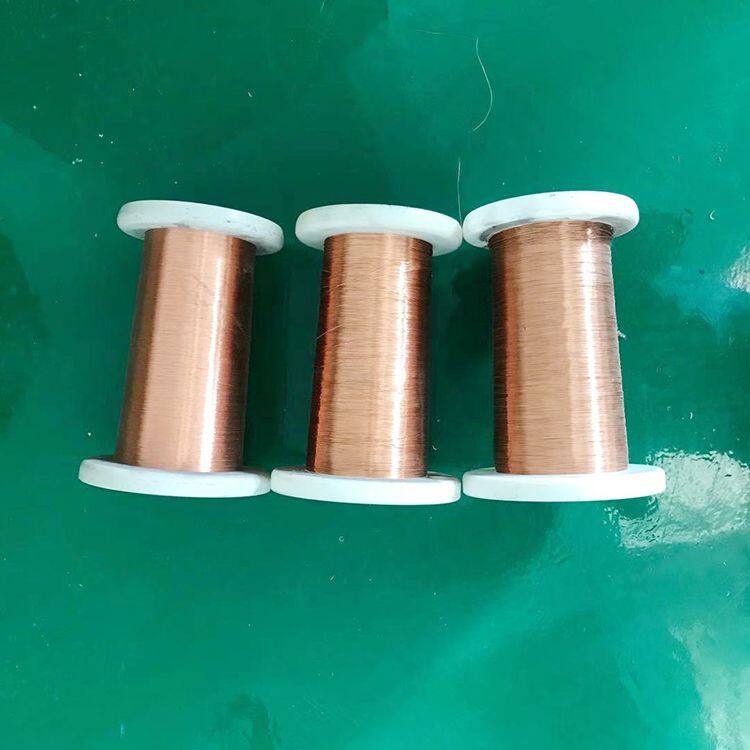

Function: The one-axis enameled wire is divided into several axes enameled wire.
Features:
1. Applicable diameter Φ0.03-1.0mm
2. Do not hurt the enamel film, and quickly completed.
3 speed up to 2000 rev / min.
4. To achieve manual debugging, CNC automatic winding control, without special care.
5. Using microcomputer controller, data easy to set, easy to operate.
6 cable with a stepper motor, current control circuit drive. Cable speed, high precision.
7. Starting point position can be taught input, and can display the current row spool position.
8. Unrestricted storage of different specifications of products, work as long as the tune out of the step where the product, you can directly produce products.
9. Can be set by the product from the starting point, width, line spacing, laps, speed and so on.
Power: AC 220V, 50HZ
Power: 1/2 HP
Size: L1000 * W550 * H1100
Weight: 70kg
Note: Optional installation of tensioner
| Number of axes | Right shaft 1 |
| Wire diameter | 0.04-1.0mm |
| Line spacing | 0~9.999mm |
| Width | 1-280mm |
| Input | AC220V, frequency 50HZ |
| spindle positive and negative speed | 2000-5000RPM (optional) |
| Swivel diameter | 260mm(Max.) |
| Power supply voltage | AC220V / 50HZ |
| Machine Size (mm) | L800 * W400 * H460 |
| Machine weight | 70kg |
