Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > QSFP28-100G-CWDM4 Cisco Compatible, 100GBASE-CWDM4 QSFP28 SMF 1270nm to 1330nm 2km DOM Fiber Optical Transceiver Module

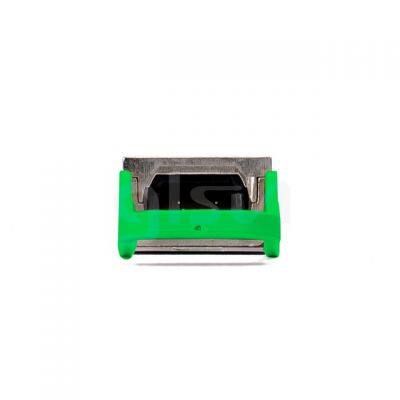

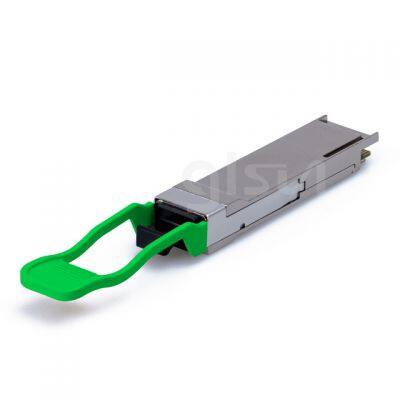

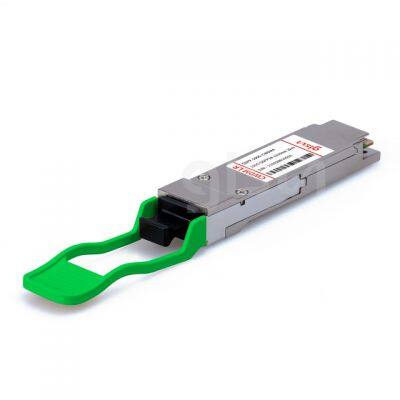

QSFP28-100G-CWDM4 Cisco Compatible, 100GBASE-CWDM4 QSFP28 SMF 1270nm to 1330nm 2km DOM Fiber Optical Transceiver Module
US$ 120 - 140
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glsun
Place of Origin:
China
Model Number:
SUN-QSFP28-100G-CWDM4-T02
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QSFP-100G-LR4-S Cisco Compatible, 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Fiber Optical Transceiver ModuleUS$ 300 - 329MOQ: 1 Piece -
1m Fiber Optic Patch Cable SC UPC to ST UPC OS2 Duplex Single Mode PVC 2.0mmUS$ 2.5 - 2.7MOQ: 1 Piece
-
Fiber Optic Patch Cable ST UPC to ST UPC OS2 Duplex Single Mode PVC 2.0mmUS$ 2.6 - 2.8MOQ: 1 Piece
-
SFP-1G-SX-85 Cisco Compatible, 1000BASE-SX SFP 850nm 550m LC MMF DOM Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
-
SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 20km DDM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
Brand Name
Glsun
Place of Origin
China
Model Number
SUN-QSFP28-100G-CWDM4-T02
QSFP28-100G-CWDM4-T02 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four CWDM with 1271, 1291, 1311, and 1331 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
| Compatible | Cisco | Form Factor | QSFP28 |
| Max Data Rate | 100Gbps | Wavelength | 1310nm |
| Max Cable Distance | 2km | Connector | Duplex LC |
| Transmitter Type | DFB CWDM | Extinction Ratio | 3.5dB |
| Media | SMF | Power Consumption | <3.5W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
