SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Fiber Optical Transceiver Module
US$ 5 - 8
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glsun
Place of Origin:
China
Model Number:
SUN- SFP-1G-LX-T01
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SFP-10G-BX10U Cisco Compatible, 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM LC SMF Fiber Optical Transceiver ModuleUS$ 10 - 16MOQ: 1 Set -
SFP-10G-BX80U Cisco Compatible, 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM LC SMF Fiber Optical Transceiver ModuleUS$ 300 - 310MOQ: 1 Set
-
QSFP-40GE-LR4 Cisco Compatible, 40GBASE-LR4 QSFP+ 1310nm 10km DOM LC SMF Fiber Optical Transceiver ModuleUS$ 169 - 180MOQ: 1 Set
-
QSFP-100G-SR4-S Cisco Compatible, 100GBASE-SR4 QSFP28 MTP/MPO MMF 850nm 100m DDM Fiber Optical Transceiver ModuleUS$ 300 - 328MOQ: 1 Piece
-
XFP-10G-SR Cisco Compatible, 10GBASE-SR XFP 850nm 300m DOM LC MMF Fiber Optical Transceiver ModuleUS$ 18 - 25MOQ: 1 Set
Brand Name
Glsun
Place of Origin
China
Model Number
SUN- SFP-1G-LX-T01

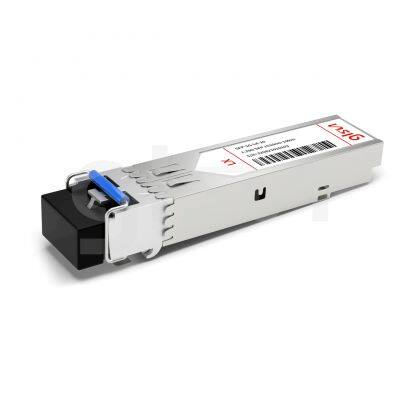

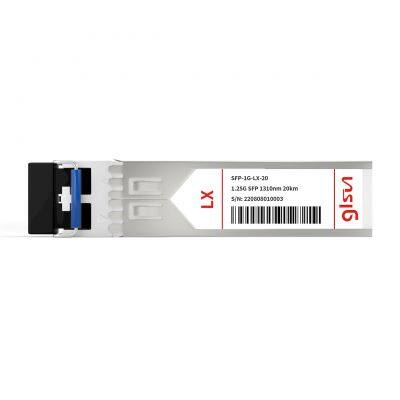

GLsun SFP-1G-LX SFP transceivers are high-performance, cost-effective modules supporting dual data rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF and MMF. The transceiver module consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements. The sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
| Compatible | Cisco | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Wavelength | 1310nm |
| Max Cable Distance | 10Km | Connector | Duplex LC |
| Transmitter Type | 1310nm FP | Extinction Ratio | 9dB |
| Media | SMF | Power Consumption | <0.8W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (C); -40°C to +85°C (I) |
