Home > Products > SFP module > SFP-10G-BX10U Cisco Compatible, 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM LC SMF Fiber Optical Transceiver Module

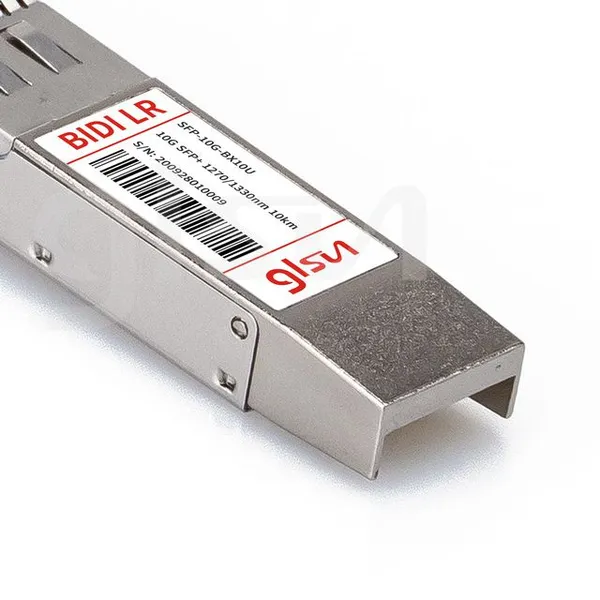

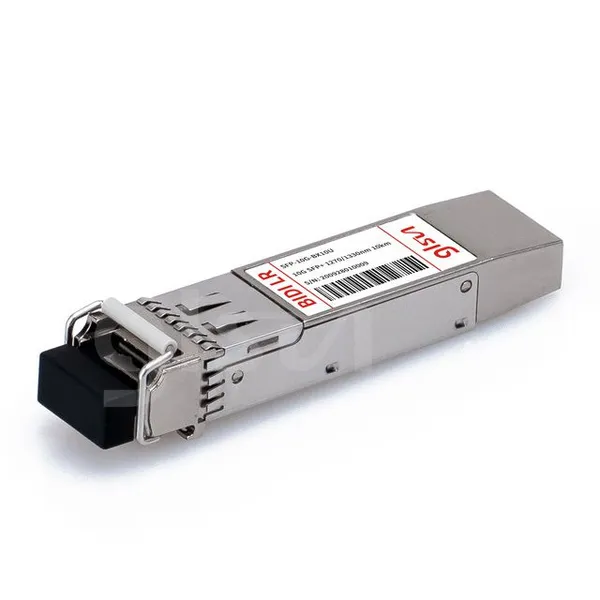

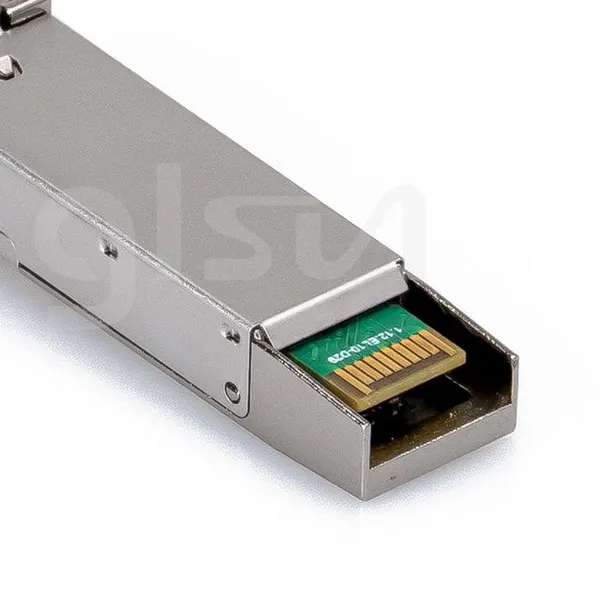

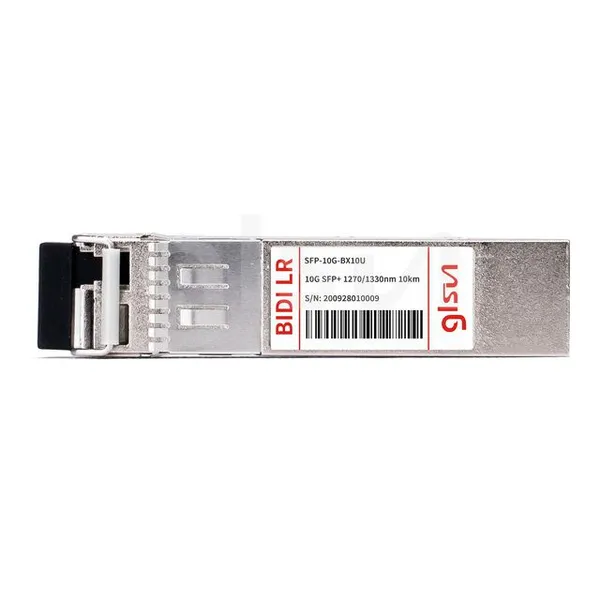

SFP-10G-BX10U Cisco Compatible, 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM LC SMF Fiber Optical Transceiver Module
USD $10 - $16
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- ShenZhen
- T/T L/C
You May Like
-
SFP-10G-BX80U Cisco Compatible, 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-40GE-LR4 Cisco Compatible, 40GBASE-LR4 QSFP+ 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-100G-SR4-S Cisco Compatible, 100GBASE-SR4 QSFP28 MTP/MPO MMF 850nm 100m DDM Fiber Optical Transceiver Module
-
XFP-10G-SR Cisco Compatible, 10GBASE-SR XFP 850nm 300m DOM LC MMF Fiber Optical Transceiver Module
-
XFP-10G-LR-31 Cisco Compatible, 10GBASE-LR/LW XFP 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
XFP-10G-ZR100-55 Cisco Compatible, 10GBASE-ZR/ZW XFP 1550nm 100km DOM LC SMF Fiber Optical Transceiver Module
Product Details
| Brand Name | Glsun | Place of Origin | China | |
| Model Number | SUN- SFP-10G-BX10U-T01 |
Product Description
GLsun SFP-10G-BX10U Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431, SFF-8432, and support 10G Ethernet LR and 10G Fiber Channel. This 10G SFP+ BiDi transceiver module is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
| Compatible | Cisco | Form Factor | SFP+ |
| Max Data Rate | 10.3 Gbps | Wavelength | 1270nm-TX/1330nm-RX |
| Max Cable Distance | 10km on 9/125um | Connector | Single LC |
| Transmitter Type | DFB BiDi | Extinction Ratio | 3.5dB |
| Media | SMF | Power Consumption | <1.0W (0~70°C), <1.2W(-40~85°C) |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
