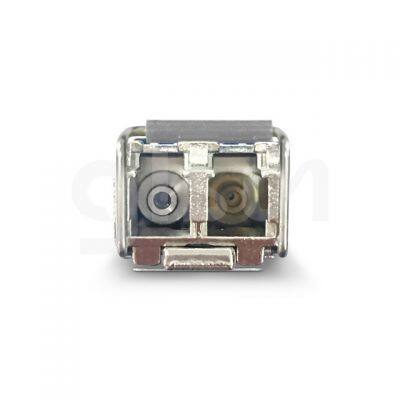

SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 20km DDM LC SMF Fiber Optical Transceiver Module
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Glsun
Place of Origin:
China
Model Number:
SUN-SFP-1G-LX-20
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GLC-EX-SMD Cisco Compatible, 1000BASE-EX SFP 1310nm 40km DOM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set -
GLC-ZX-SM Cisco Compatible, 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
-
SFP-1G-SX-31 Cisco Compatible, 1000BASE-SX SFP 1310nm 2km DOM LC MMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
-
SFP-1G-EX-55 Cisco Compatible, 1000BASE-EX SFP 1550nm 40km DOM LC SMF Fiber Opitcal Transceiver ModuleNegotiableMOQ: 1 Set
-
GLC-EZX-SMD-100 Cisco Compatible, 1000BASE-EZX SFP 1550nm 100km DOM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
Brand Name
Glsun
Place of Origin
China
Model Number
SUN-SFP-1G-LX-20
GLsun SFP-1G-LX SFP transceivers are high-performance, cost-effective modules supporting dual data rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF and MMF. The transceiver module consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements. The sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
| Compatible | Cisco | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Wavelength | 1310nm |
| Max Cable Distance | 20Km | Connector | Duplex LC |
| Transmitter Type | 1310nm FP | Extinction Ratio | 9dB |
| Media | SMF | Power Consumption | <0.8W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (C); -40°C to +85°C (I) |
