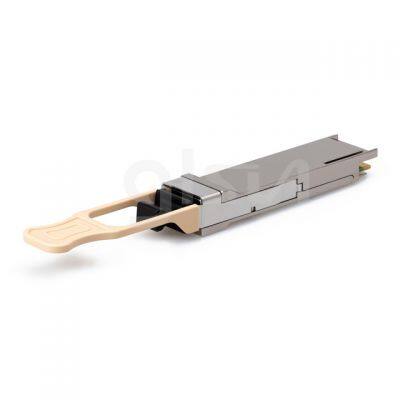

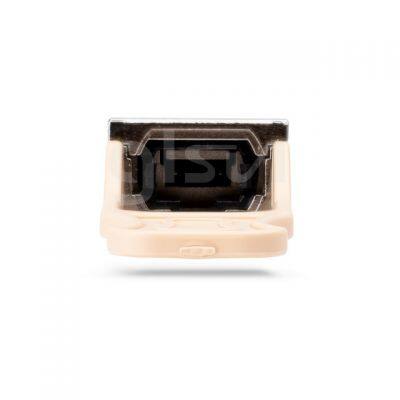

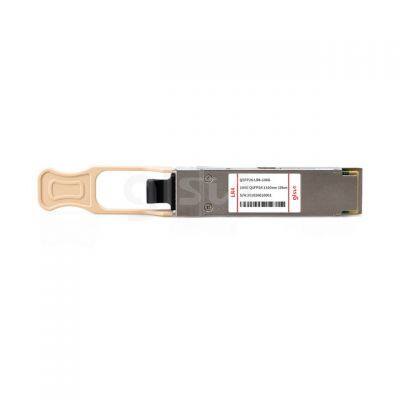

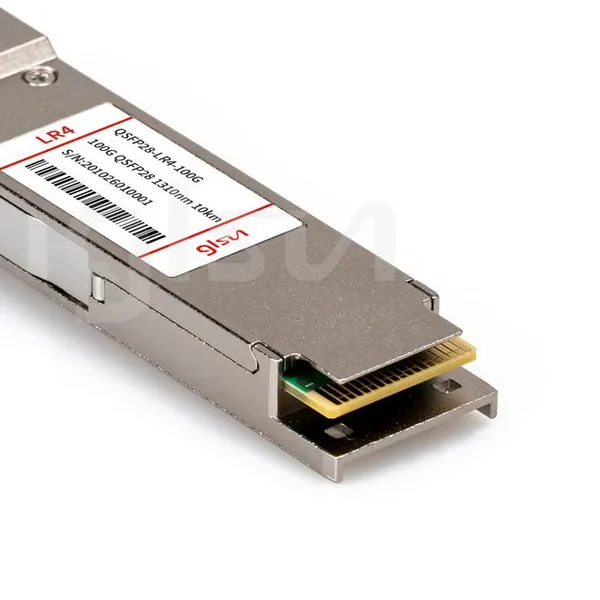

Help CenterQSFP-100G-LR4-S Cisco Compatible, 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
Related Products
-
1m Fiber Optic Patch Cable SC UPC to ST UPC OS2 Duplex Single Mode PVC 2.0mmUS$ 2.5 - 2.7MOQ: 1 Piece -
Fiber Optic Patch Cable ST UPC to ST UPC OS2 Duplex Single Mode PVC 2.0mmUS$ 2.6 - 2.8MOQ: 1 Piece
-
SFP-1G-SX-85 Cisco Compatible, 1000BASE-SX SFP 850nm 550m LC MMF DOM Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
-
SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 20km DDM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
-
GLC-EX-SMD Cisco Compatible, 1000BASE-EX SFP 1310nm 40km DOM LC SMF Fiber Optical Transceiver ModuleNegotiableMOQ: 1 Set
GLsun's 100Gbase-LR4 QSFP28 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four electric-absorption modulated lasers (DMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data stream is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
| Compatible | Cisco | Form Factor | QSFP28 |
| Max Data Rate | 28Gbps data rate per wavelength | Wavelength | 1310nm |
| Max Cable Distance | 10km link length | Connector | Duplex LC |
| Transmitter Type | LAN WDM DML | Extinction Ratio | 4dB |
| Media | SMF | Power Consumption | |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
