Product Description

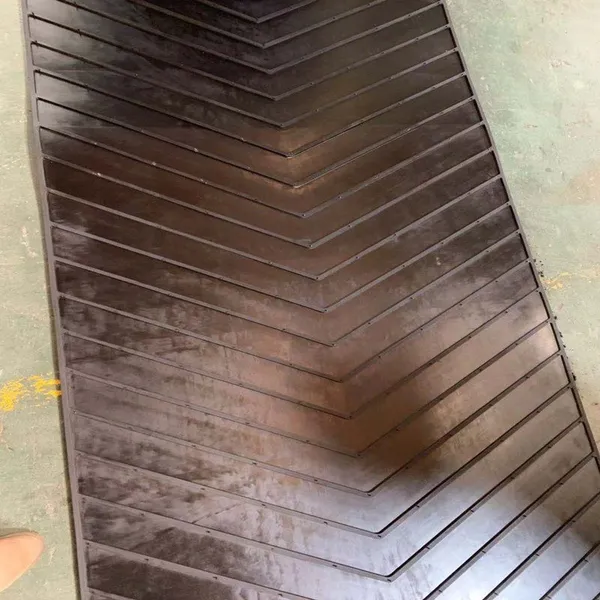

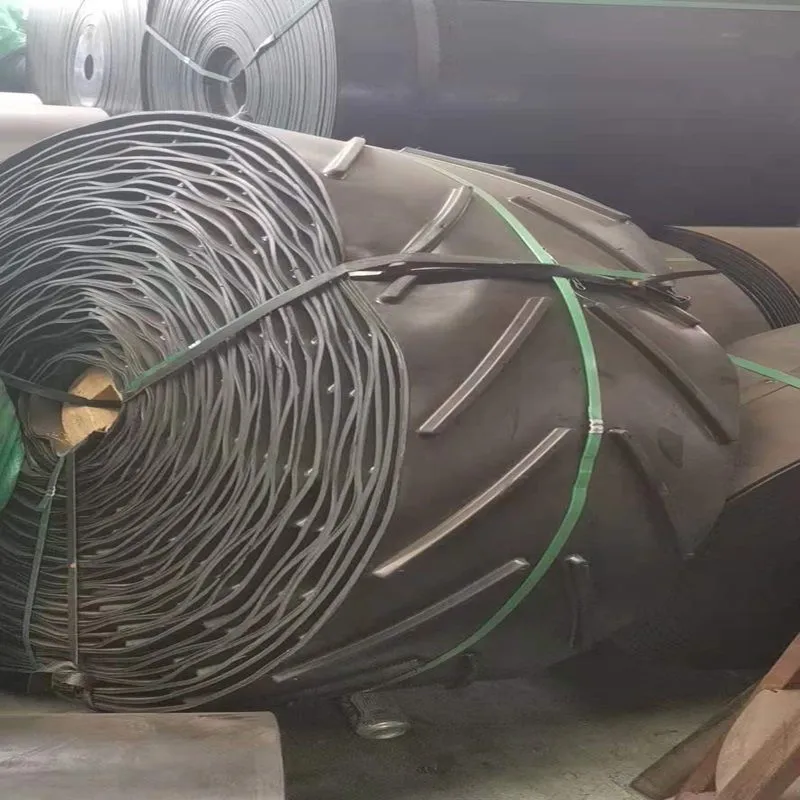

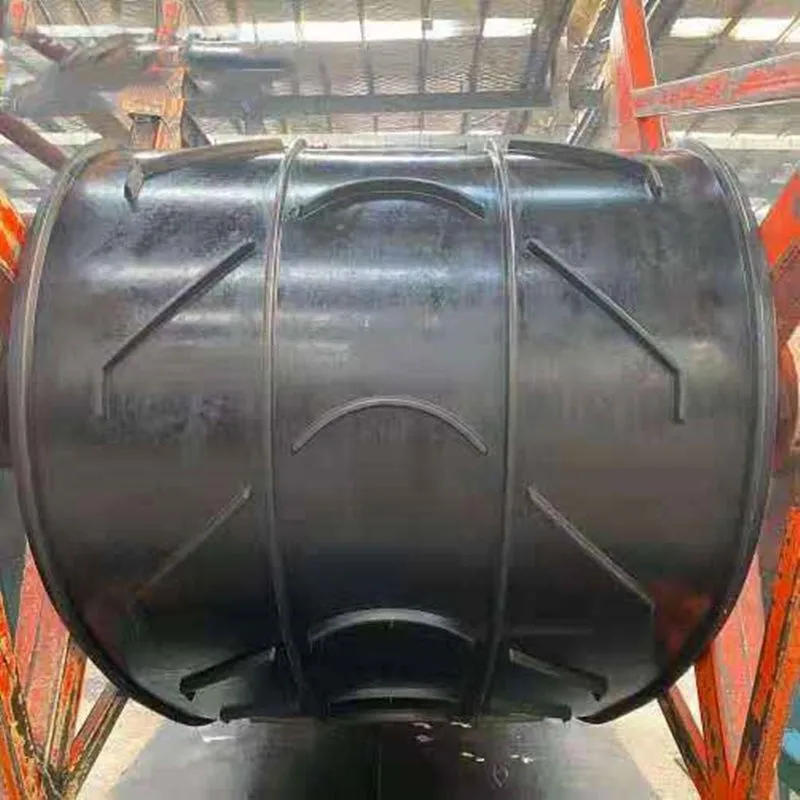

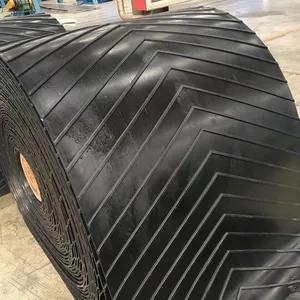

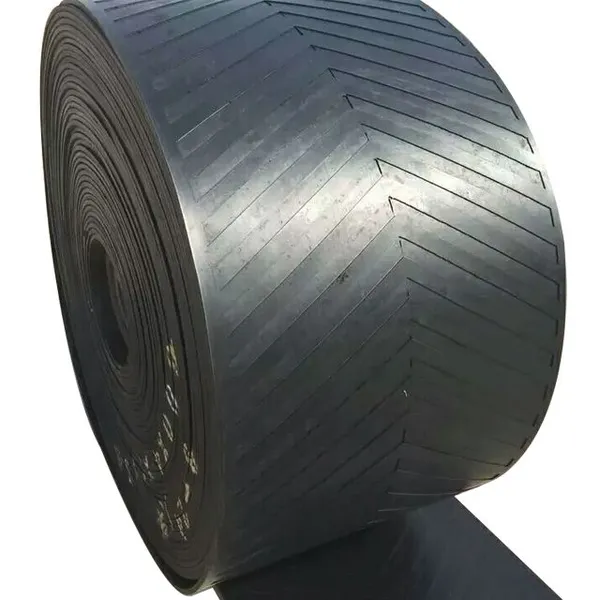

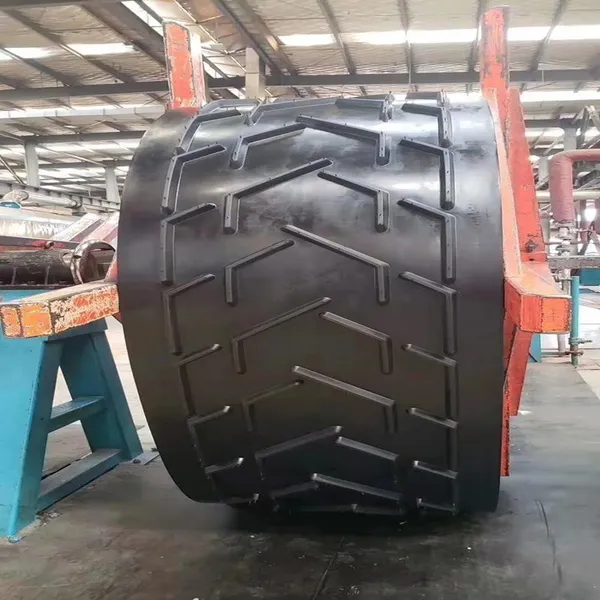

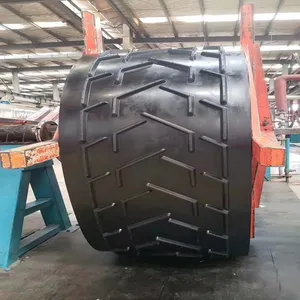

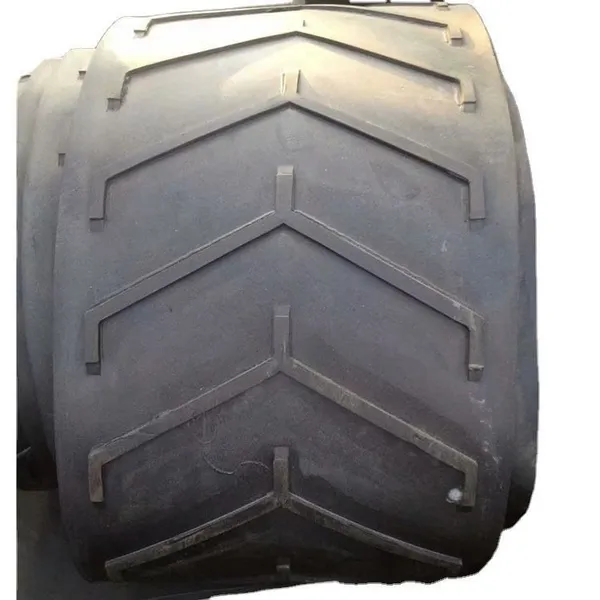

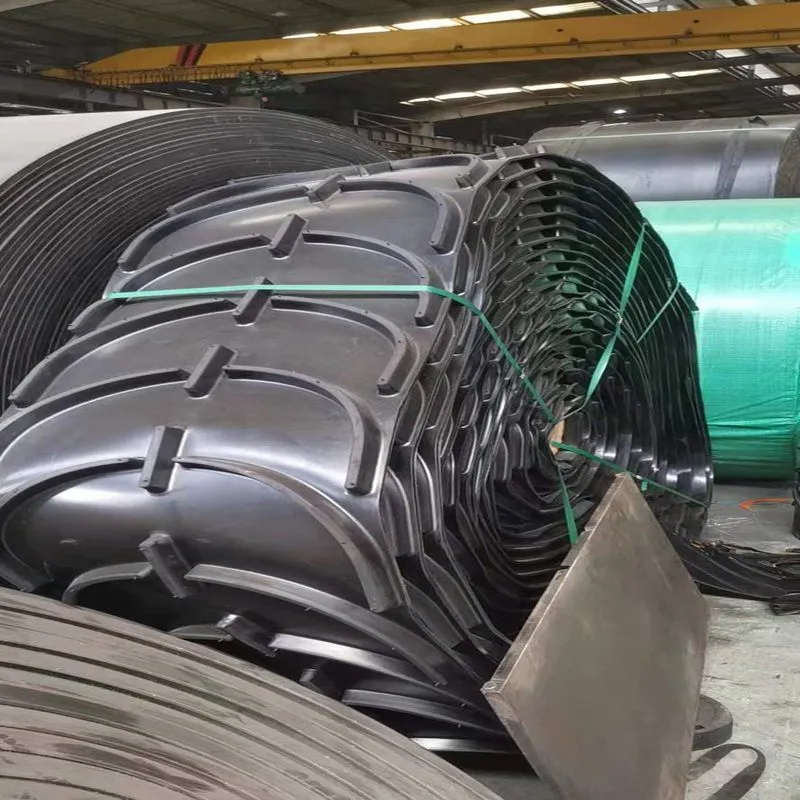

Rubbers' Chevron 'V/Y/C' Pattern (Profiled) Conveyor Belts are specially designed belts that feature a series of cleats or ribs on the surface of the belt. The cleats are in a 'V', 'Y' or 'C' shape, which helps to prevent materials from sliding back down the conveyor belt. These belts are ideal for transporting materials that require steep inclines or declines, as the chevron profile provides excellent grip and stability.

Chevron belting is made with E.P. fabric plies. The top and bottom are provided with abrasion resistant rubber covers to DIN 22102 and BS 409. All belts are suitable for jointing by vulcanising or by mechanical belt fasteners.

Used mainly for inclined conveyors of more than 18 degree angles, our C15 range can carry materials up to inclines of 30°, and our C25 range up to 40°.

Feature:

1. Excellent weather resistance and property of cleat, not easy to crack and become deformed.
2. High abrasive high tensile cleats.
3. Good flexibility and tear resistance.
4. Integrated vulcanized cleats and base belt prevent the cleats from coming off.
5. Different rubber property and carcass strength can be designed according to requirement.

Polyester / Nylon Conveyor Belts (EP / PN Carcass) : Polyester Warp / Nylon Weft


Product Parameters

Our technicians / equipment are trained to manufacture belts as per: DIN 22102 (German), AS 1333 (Australian), SABS (South African), RMA (US, South America), BS 490 (British), JS (Japanese)
DIN-22102
Grade TensileStrength(MPA) Elongation at Breaking

Abrasion

(≤mm3)


 Adhesive strength betwee Plies(N/mm) Adhesive strength between

Bottom Cover

(0.8-1.9mm)

Top Cover

(≥1.9mm)
W

18

 400 90 ≥5  ≥3.5 ≥ 4.5
X 25 450 120
Y 20 400 150
Z 15 350 250
DIN-22102
Grade TensileStrength(MPA) Elongation at Breaking

Abrasion

(≤mm3)


 Adhesive strength between Plies(N/mm) Adhesive strength between

Bottom Cover
(0.8-1.9mm)

Top Cover

(≥1.9mm)
A

18

 400 90 ≥7  ≥5
X 25 450 120
M 24 450 150
N 20 400 250



AS1332-2000
Grade TensileStrength(MPA) Elongation at Breaking

Abrasion

(≤mm3)


 Adhesive srength betweePlies(N/mm) Adhesive strength between

Bottom Cover

(0.8-1.9mm)

Top Cover

(≥1.9mm)
A

17

 400 70 ≥6  ≥4 ≥ 4.8
E 14 300 /
F 14 300 /
M 24 450 125
N 17 400 200
S 14 300 250
S* 12 300 250


Carcass fabric type  Strength per ply (N/mm)   Thickness per ply (mm) Cover Thickness (mm) No.of Ply Belt Width (mm)    Length per Roll (m/Roll)
Top Cover  Bottom Cover
NN NN100 100 0.70

3

3

3.2



4

4.5

4.8



6

6

6.4



7.9

8

9.5



1.5

3

1.6



2

4.5

1.6



2

6

3.2



3.2

4

3.2



2-10

 300-12000

20-100
NN125 125 0.70
NN150 150 0.75
NN200 200 0.90
NN250 250 1.15
NN300 300 1.25
NN400 400  1.50
EP EP100 100  0.75 2-8
EP125 125  0.75
EP150 150  0.85
EP175 175  0.85
EP200 200  1.00
EP250 250  1.20
EP300 300  1.35
EP350 350  1.50
EP400 400   1.65
EP500 500   2.00
CC CC56 56 1.10 3-12












Minimum recommended Pulley Diameters Pulley Dia. in mm
Ply Number
Belt Type Fabric Code 2 3 4 5 6 7 8 9 10
Nylon Conveyor Belt NN100 200 250 315 400 500 630 800 1000 1250
NN125 200 250 315 400 500 630 800 1000 1250
NN150 200 250 315 400 500 630 800 1000 1250
NN200 250 315 400 500 630 800 1000 1250 1400
NN250 250 315 400 500 630 800 1000 1250 1400
NN300 400 500 630 800 1000 1250 1400 1400 1600
NN400 500 630 800 1000 1250 1400 1600 1600 1800
NN500 630 800 1000 1250 1400 1600 1600 1800
NN600 800 1000 1250 1400 1600 1600 1800 2000
EP Conveyor Belt EP100 200 250 315 400 500 630 800

EP125 200 250 315 400 500 630 800

EP160 250 400 500 630 800 1000 1250

EP200 315 500 630 800 1000 1250 1400

EP250 400 630 800 1000 1250 1400 1600

EP300 500 630 800 1000 1250 1400 1600

EP400 630 800 1000 1250 1400 1600 1800

EP500 800 1000 1250 1400 1600



EP600 800 1000 1250 1400 1600
