Help Center2ply Rubber Conveyor Grip Texture Top Rough Anti-Slip Conveyor Belt
Product Spotlights
Durable Construction: Robust multi-ply carcass ensures longevity and strength.
Related Products
-
Fabric Conveyor Belts Factory Direct Sale Polyester Fabric Conveyor BeltUS$ 1 - 20MOQ: 100 Meters -
White Conveyor Belt Debossed Chevron Conveyor Belt for FoodUS$ 1 - 20MOQ: 100 Meters
-
Ep200 Nylon Fabric Industrial Heavy Transport Conveyor Belt for Steel Ore MiningUS$ 1 - 20MOQ: 100 Meters
-
Heavy Duty Rubber Ep Conveyor Belt Products for MiningUS$ 1 - 20MOQ: 100 Meters
-
Unique Conveyor Belting Tear Resistant High Impact Textile BeltUS$ 1 - 20MOQ: 100 Meters
Product Description

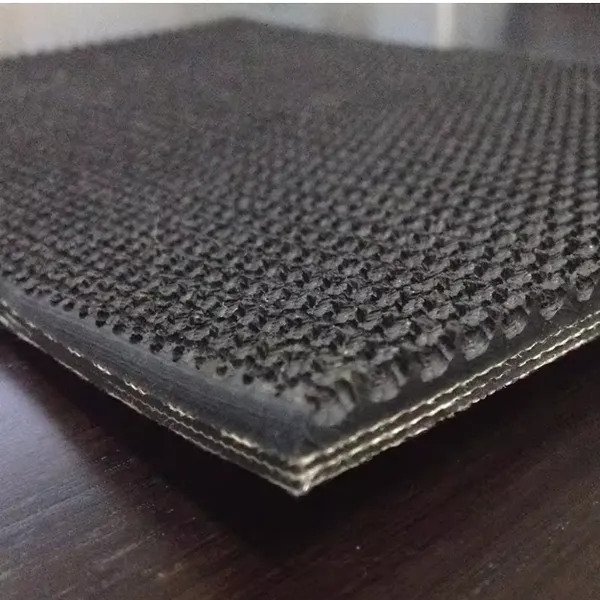

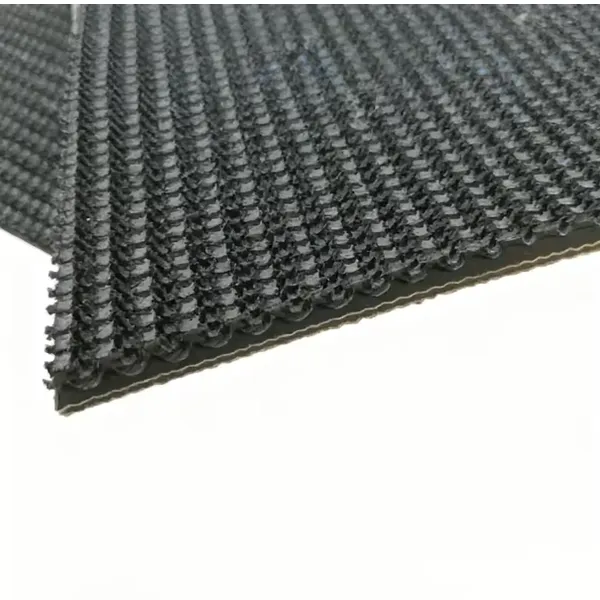

Rough top conveyor belt is with cushioning and anti-slippery or anti-skid effects. Due to its coarse and soft rugged surface pattern on the top cover, it gives high friction between belt and the carried load. Indeed, these type of belts are also called as Wavy top belts.

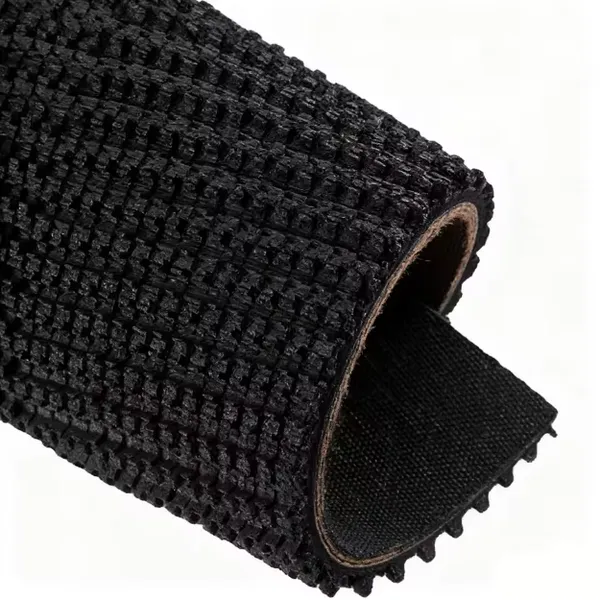

For conveying fragile or easily deformable goods such as paper sacks, parcels and cardboard boxes, particularly on conveyors with an incline, we recommend you to use a rough-top conveyor belt. Unlike regular smooth conveyor belts, rough-top conveyor belts have specially designed covers. It can offer maximum grip to the conveyed goods. The belt covers feature a rough rubber print on the top cover. The rough top is applied using a special process with impression fabric, similar to a mold. The back of the belt can be supplied either with or without a rubber cover. And that is often called dry-back or fabric back belt.
Polyester / Nylon Conveyor Belts (EP / PN Carcass) : Polyester Warp / Nylon Weft
Product Parameters
Our technicians / equipment are trained to manufacture belts as per: DIN 22102 (German), AS 1333 (Australian), SABS (South African), RMA (US, South America), BS 490 (British), JS (Japanese)
| DIN-22102 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive strength betwee Plies(N/mm) | Adhesive strength between | |
|
Bottom Cover (0.8-1.9mm) |
Top Cover (≥1.9mm) |
|||||
| W | 18 |
400 | 90 | ≥5 | ≥3.5 | ≥ 4.5 |
| X | 25 | 450 | 120 | |||
| Y | 20 | 400 | 150 | |||
| Z | 15 | 350 | 250 | |||
| DIN-22102 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive strength between Plies(N/mm) | Adhesive strength between | |
Bottom Cover |
Top Cover (≥1.9mm) |
|||||
| A | 18 |
400 | 90 | ≥7 | ≥5 | |
| X | 25 | 450 | 120 | |||
| M | 24 | 450 | 150 | |||
| N | 20 | 400 | 250 | |||
| AS1332-2000 | ||||||
| Grade | TensileStrength(MPA) | Elongation at Breaking |
Abrasion (≤mm3) |
Adhesive srength betweePlies(N/mm) | Adhesive strength between | |
|
Bottom Cover (0.8-1.9mm) |
Top Cover (≥1.9mm) |
|||||
| A | 17 |
400 | 70 | ≥6 | ≥4 | ≥ 4.8 |
| E | 14 | 300 | / | |||
| F | 14 | 300 | / | |||
| M | 24 | 450 | 125 | |||
| N | 17 | 400 | 200 | |||
| S | 14 | 300 | 250 | |||
| S* | 12 | 300 | 250 | |||
| Carcass | fabric type | Strength per ply (N/mm) | Thickness per ply (mm) | Cover Thickness (mm) | No.of Ply | Belt Width (mm) | Length per Roll (m/Roll) | |
| Top Cover | Bottom Cover | |||||||
| NN | NN100 | 100 | 0.70 |
3 3 3.2 4 4.5 4.8 6 6 6.4 7.9 8 9.5
|
1.5 3 1.6 2 4.5 1.6 2 6 3.2 3.2 4 3.2
|
2-10 |
300-12000 | 20-100 |
| NN125 | 125 | 0.70 | ||||||
| NN150 | 150 | 0.75 | ||||||
| NN200 | 200 | 0.90 | ||||||
| NN250 | 250 | 1.15 | ||||||
| NN300 | 300 | 1.25 | ||||||
| NN400 | 400 | 1.50 | ||||||
| EP | EP100 | 100 | 0.75 | 2-8 | ||||
| EP125 | 125 | 0.75 | ||||||
| EP150 | 150 | 0.85 | ||||||
| EP175 | 175 | 0.85 | ||||||
| EP200 | 200 | 1.00 | ||||||
| EP250 | 250 | 1.20 | ||||||
| EP300 | 300 | 1.35 | ||||||
| EP350 | 350 | 1.50 | ||||||
| EP400 | 400 | 1.65 | ||||||
| EP500 | 500 | 2.00 | ||||||
| CC | CC56 | 56 | 1.10 | 3-12 | ||||
| Minimum recommended Pulley Diameters | Pulley Dia. in mm | |||||||||
| Ply Number | ||||||||||
| Belt Type | Fabric Code | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Nylon Conveyor Belt | NN100 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| NN125 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
| NN150 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
| NN200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | |
| NN250 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | |
| NN300 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1400 | 1600 | |
| NN400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1600 | 1800 | |
| NN500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1600 | 1800 | ||
| NN600 | 800 | 1000 | 1250 | 1400 | 1600 | 1600 | 1800 | 2000 | ||
| EP Conveyor Belt | EP100 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | ||
| EP125 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | |||
| EP160 | 250 | 400 | 500 | 630 | 800 | 1000 | 1250 | |||
| EP200 | 315 | 500 | 630 | 800 | 1000 | 1250 | 1400 | |||
| EP250 | 400 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | |||
| EP300 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | |||
| EP400 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | |||
| EP500 | 800 | 1000 | 1250 | 1400 | 1600 | |||||
| EP600 | 800 | 1000 | 1250 | 1400 | 1600 | |||||
Certifications
Packaging & Shipping
Company Profile
Hebei TRX Rubber Products Co., Ltd is a leading professional manufacturer of conveyor belts & conveyor accessories in China. The main workshops cover 20,000 square meters in the total 60,000 square meters of the plant. The applied technology and equipment in the advanced production lines are state of the art in the industry. The sales headquarters is located in the capital of China, Beijing with branches in domestic and abroad.
It specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.
Its products, honored with "The most Advanced level of Products" by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
The company mission:
1.Supply one-stop outstanding service to global customers.
2. Engage in complete solutions with conveyor belting and power transmission belting.
3. Persist in technology improvement and quality control in the whole process of production and service.
