Fabric Conveyor Belts Factory Direct Sale Polyester Fabric Conveyor Belt
We specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.
Its products, honored with “The most Advanced level of Products" by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
The company mission:
1.Supply one-stop outstanding service to global customers.
2.Engage in complete solutions with conveyor belting and power transmission belting.
3.Persist in technology improvement and quality control in the whole process of production and service.
The company vision:
Providing complete conveying solutions with innovation, enthusiasm and safe, eco-friendly processes to achieve operating efficiencies for our material handling customers.

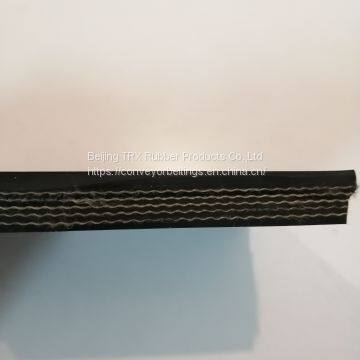

The universal fabric conveyor belts are made of EP, NN or Cotton fabric and finished through the processes of calendaring, firming and vulcanizing, etc.
It is suitable to convey in normal temperature non-corrosive pointless lumps, granules or powders such as coal, coke, sand and cement in bulk or packaged.
Belts with cover grade are in accordance to International standards such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
| andards | Cover Rubber | Adhesion | ||||
| TensileStrength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm(>1.5mm) | N/mm |
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
| Standards | Cover Rubber | Adhesion | ||||
| TensileStrength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| RMA | Mpa | % | mm3 | N/mm( | N/mm(>1.6mm) | N/mm |
| RMA-I | 17 | 400 | 200 | 3 | 4.4 | 4 |
| RMA-II | 14 | 400 | 250 | 3 | 4.4 | 4 |
| Standards | Cover Rubber | Adhesion | ||||
| TensileStrength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm( | N/mm(>1.9mm) | N/mm |
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
