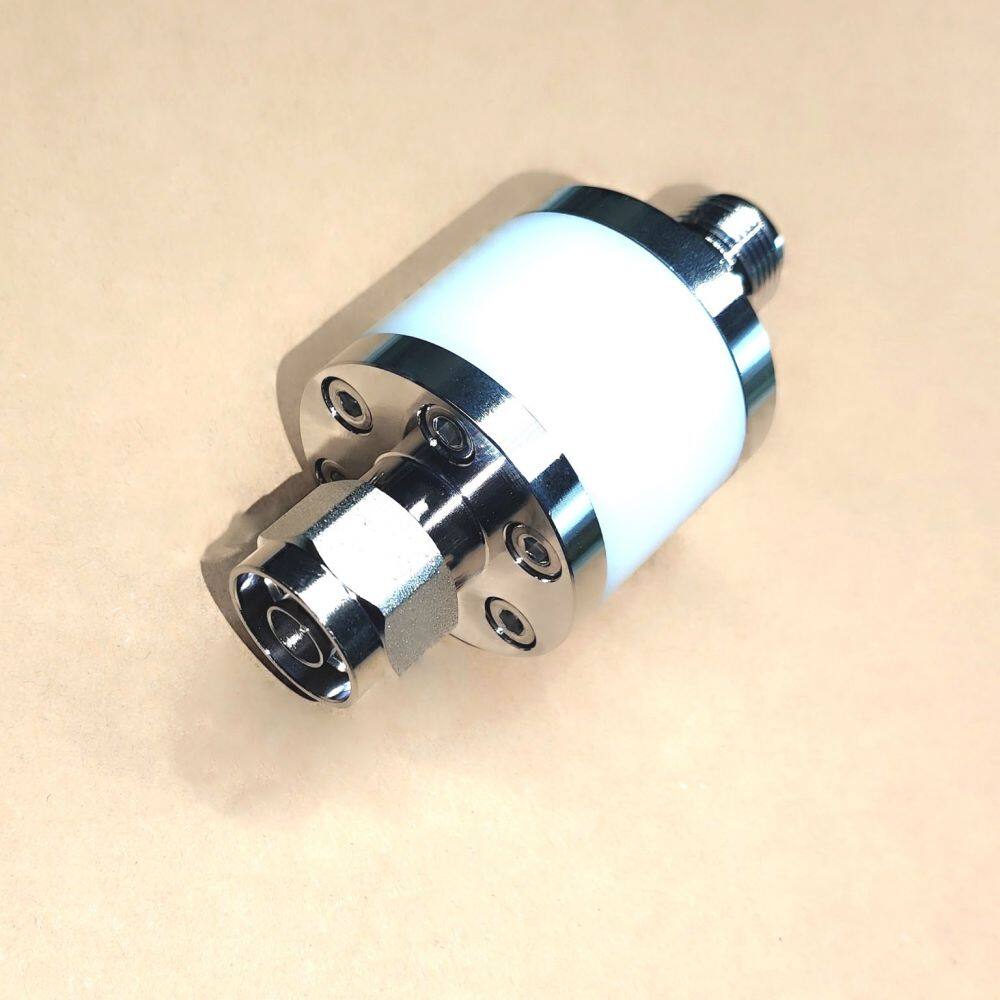

DC-BLOCK DB-6NFM

DC-BLOCK DB-6NFM

This DC block is used to prevent DC and low-frequency current surges from flowing along the inner and outer conductors of the transmission line, while allowing RF signals to flow unobstructed. Mainly used in wireless communication systems with leaky cables in subway or high-speed rail tunnels.

Technical features

1、Frequency Range---------------------------50-6000MHz

2、Impedance----------------------------------50 Ohm

3、Insertion Loss-------------------------------0.25dB @50-6000MHz

4、VSWR----------------------------------------1.15 @50-3000MHz

                                                                          1.25 @3000-6000MHz

5、Intermodulation (IM3)----------------------155dBc, typical -160dBc (2x20W)

6、DC Blocking Voltage------------------------3KV

7、Internal Capacitance------------------------1nF

8、External Capacitance------------------------7nF

9、Environmental Class-------------------------IP67

10、Interface Type------------------------------N male/N female

11、Temperature Range-------------------------40 to 85°C

12、weight--------------------------------------230g
