Automatic Fiber Laser Cutter Exchange Platform Laser Cutting Machine

Product Introduction

Perfect Laser is a fiber laser cutting machine manufacturer focusing on product quality and services. Our new developed metal tube laser cutting machine is equipped with automatic exchanging platform. Only 10s for feeding, quick and automatic. The cutting slit of this kind of metal tube laser cutting machine is smaller without extra secondary processing, auto focus, rail automatic lubrication. Smoke exhaust system can help to save energy and protect environment. Fiber Laser cutting head is designed with intelligent anti-collision function to automatically eliminate the meaningless cutting. The pipe laser cutting machine bed is detachable, which is made of 18mm thick steel plate, and easy to maintain. Automatic programming software designed by Perfect Laser directly can help to improve the working effeciency.

Product Features

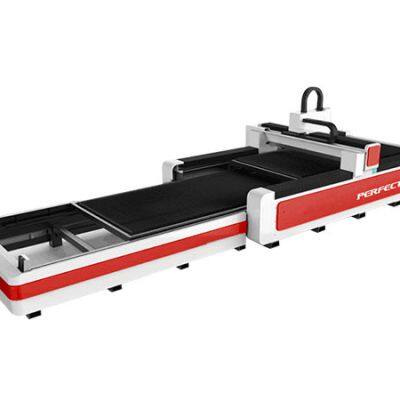

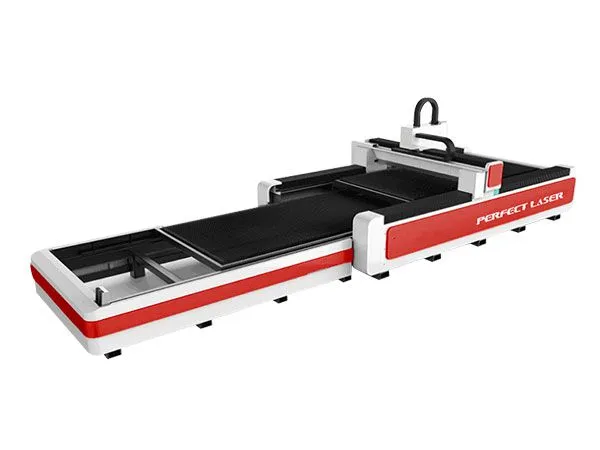

1.The laser tube cutting machine is equipped with a switch-type double table. During the cutting, it can also load and unload the sheet workpiece. The table is equipped with a rotating ball support, so it is easy to move the plate, the metal tube laser cutting machine also equipped with a coarse positioning device, to ensure the clamp can roughly position to the plate, and prevent the sheet move, which ensured the accuracy of parts processing, and reduced waste material.

2.If the power is off or the chain is pulled off, the table can be pushed by hand to facilitate the follow -up maintenance. Open design of steel plate laser cutting machine is convenient to observe the work dynamics in time.

3.The exchange platform with heavy capacity can be placed 8-10 mm carbon steel plate. The steel plate laser cutting machine table has universal balls. There is a sheet metal clamping device beside the table, which can firmly fix the materials on the table to avoid workpiece movement.
4.The working platform plate was made of a thickness of 3 mm carbon steel plate, the service life is long. the steel plate laser cutting machine dosen’t need the replacement in 8 months to 1 year.
5.The overall steel beam is very steel, the laser tube cutting machine beam used a 17 mm thickness plate, and beam base’s thickness is about 30 mm.

6.Taiwan YCC helical rack, Taiwan's silver (HIWIN) 30 rail, Germany's Siemens electronic devices, and Japan's Yaskawa drive motor ensured the accuracy of the machine work.

7.Faster Acceleration , repeated positioning accuracy is about 0.03mm,and the pipe laser cutting machine's cutting accuracy can reach 7-8 silk.

8.The rack drive system kept the fast speed and good dynamic performance, bilateral motor drive make the machine forced symmetrical, service life is long.

Application

Application materials

This kind of pipe laser cutting machine is widely used high speed cutting for a variety of metal sheet or pipe , such as stainless steel, carbon steel, galvanized sheet, electrolytic plate, aluminum, steel, brass, alloy plate, rare metals and other materials.

Application industrials

This kind of pipe laser cutting machine main used in sheet metal processing, automobile parts manufacturing, chassis cabinats, kitchen utensils, machinery, home appliances and other industrials.
