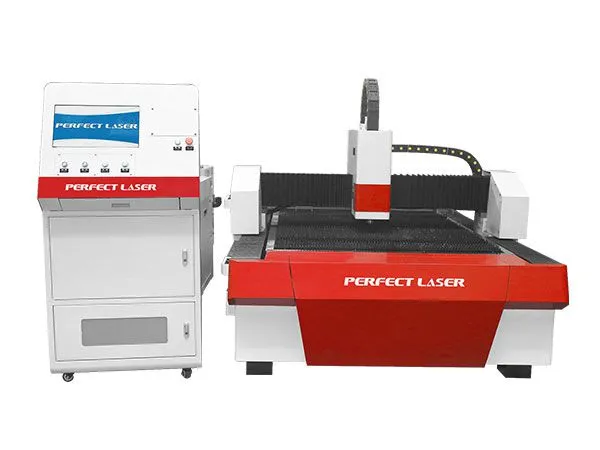

Help Center2000w Germany IPG Fiber Laser Cutting Machine With Low Electric Power Consumption
Related Products
-
Hot Sale Metal Pipe and Sheet Fiber Laser Cutting MachineUS$ 11800 - 19800MOQ: 1 Set -
Perfect Laser Factory Price Metal Pipe and Tube Fiber Laser Cutter MachineUS$ 11800 - 19800MOQ: 1 Set
-
2000w Fiber Laser Cutting Machine For Aluminum And SS SteelsUS$ 11800 - 19800MOQ: 1 Set
-
1000w Rotary High Precision Metal Hardware Fiber Laser Cutting MachineUS$ 11800 - 19800MOQ: 1 Set
-
Automatic Fiber Laser Cutter Exchange Platform Laser Cutting MachineUS$ 11800 - 19800MOQ: 1 Set
Product Features
1. High cutting speed: 2000w fiber laser cutting machine adopts German IPG fiber laser source (optional other), the cutting speed can reach 15 meters/minute;
2. High cutting accuracy: The 2000w fiber laser cutting machine adopts Japanese Panasonic servo motor, double ball screw drive, and precision linear guide structure. Compared with a single drive system, the precision of the fiber laser cutting system is higher. And 0.05mm cutting gap, suitable for high-efficiency precision machining;
3. Automatic feeding design: saving loading and unloading time, the steel metal cutting machine can automatically load and unload during the cutting operation, providing more than 30% of the whole work efficiency;
4. Low cost of use and maintenance: The steel metal cutting machine adopts optical fiber transmission, no reflection lens, no need to adjust the optical path, zero maintenance of core key components, and stable use; can use air to cut all kinds of metal sheets, and consume 0.5-0.5 hourly power. 5 degrees;
5.Unrestricted by the processing graphics: Professional CNC system, non-contact flexible processing, not affected by the appearance of the processing and the surface of the plate, the high power cutting laser machine can process arbitrary graphics.
Application
Applicable materials
The 2000w fiber laser cutting machine can cut all kinds of metal materials such as stainless steel, carbon steel, various alloy steels, copper, aluminum, titanium, aluminum alloys, titanium alloys, pickling plates, galvanized plates, and galvanized aluminum.
Applicable industries
The 2000w fiber laser cutting machine is widely applied in chassis cabinets, agricultural machinery, advertising production, kitchen and bathroom, sheet metal processing, environmental protection equipment, auto parts, machinery manufacturing, metal handicrafts, hardware products, elevator equipment and other industries.
Technical Data
Model |
PE-F2000-3015 |
Laser Power |
2000 watt |
Laser Type |
Fiber Laser |
Laser Technology |
Germany Technology |
Working Area |
3000mm×1500mm |
X axis Stroke |
3000mm |
Y axis Stroke |
1500mm |
Z axis Stroke |
150mm |
Max. Cutting Thickness |
15-20 mm |
Transmission Method |
Ball Screw Transmission |
Table-driven system |
Japanese Panasonic/ Yaskawaservo motor & driver |
Focus Method |
Following and AutomaticAdjust Focus |
Location precision |
≤±0.05mm |
Re-location precision |
±0.02mm |
Max. moving speed |
100m/min |
Supporting Format |
PLT, DXF, BMP, AI |
Power demand |
380V/50Hz |
Worktable max. load |
1000 Kgs |
Control Method |
Offline Movement Control |
Control software |
Perfect Laser Professional Laser Cutting Software |
