Product Introduction

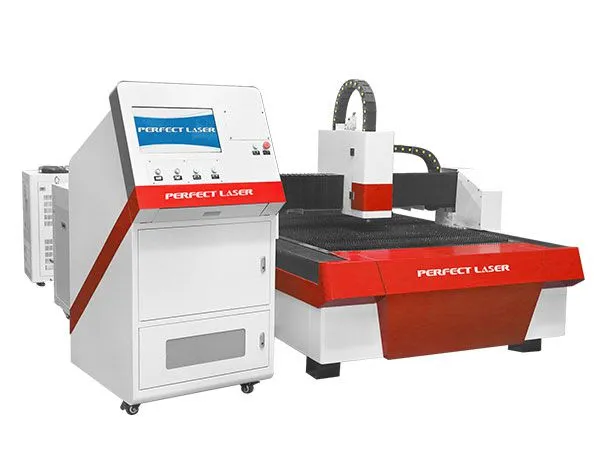

The ss laser cutting machine adopts RAYCUS fiber laser source, an integral gantry-type mechanism system and an intelligent laser cutting head.
It can support large, effective processing formats and intelligent cutting with long service life and smooth cutting effect.
In addition, the aluminum laser cutting machine has a complete dust-proof and anti-pollution design, which greatly improves the stability of the machine’s performance, processing efficiently and fluently.
Product Features
1. The aluminum laser cutting machine is equipped with an intelligent laser cutting head, a non-contact capacitive sensor, which can automatically detect the actual position of the metal sheet; Its automatic focusing function makes it unnecessary to refocus the metal plate when changing it, greatly improving work efficiency and machining accuracy.
2. The ss laser cutting machine is equipped with an integral gantry-type mechanism and a knife-shaped working platform, which decrease the motion inertia and improve running speed and processing precision. This ensures that the optical path remains constant, and enlarge the effective cutting range.
4.The ss laser cutting machine is equipped with Ncstudio control system, which uses optical fiber communication to exchange data with the machine tool drive system in a fast and stable fashion; ensures the synchronization of the machine tool and its stability at 5-40m/min cutting speed and greatly improves the working life of the machine’s tools and motors.
4. 2000 watts water chiller of the aluminum laser cutting machine ensures the stable operation of the fiber laser source. Its features are: reliable operation, low noise and long-lasting durability. By cooling the external laser path mirror and the focusing mirror of the machine, it ensures stable, high quality laser beam transmission and effectively prevents the lens from overheating, deformation or bursting.
5. The aluminum laser cutting machine is equipped with a RAYCUS brand 2000 watts fiber laser source, which has 2000w high laser power, average and round laser beam quality, and high electro-optic efficiency. It is maintenance-free and has a long service life.
6. Intelligent phone-sized remote control DSP handle of the ss laser cutting machine can meet the on-hand operation, enable users to perform cutting, moving, calibration, emergency stop and many other operations at any time.
Tags:aluminium laser cutting machine,ss laser cutting machine.
Application
1.This ss laser cutting machine is mainly suitable for rapid cutting of stainless steel, carbon steel, galvanized sheet, electrolytic boards, brass plates, aluminum alloy, manganese steel, various alloy plates, rare metals and many other metal materials.
2.This aluminum laser cutting machine is widely used in a number of metal manufacturing industries such as auto parts, machinery, elevator manufacturing, advertising, house appliance manufacturing, medical equipment cabinet, hardware, decoration, and external metal processing services.
Technical Data
Product Name |
Aluminium SS Laser Cutting Machine |
|||
Model |
PE-F2000-2513 |
PE-F2000-3015 |
PE-F2000-4020 |
PE-F2000-6020 |
Laser Power |
2000 Wattf |
|||
X / YAxis Stroke |
2500x 1300mm |
3000x 1500mm |
4000x 2000mm |
6000x 6000mm |
Z Axis Stroke |
100mm |
|||
Max. Cutting Thickness |
15-20 mm (Carbon Steel) |
|||
Max. Cutting Speed |
40m/min |
|||
Maximum Idle Speed |
60m/min |
|||
Maximum Idle Acceleration |
0.5G |
|||
X/Y Axis Location Precision |
0.05 mm/m |
|||
X/Y Axis Re-location Precision |
±0.02 mm |
|||
Equipment Weight |
4 Tons |
|||
Focus Method |
Dynamic Following System |
|||
Power Demand |
380V / 50HZ / 3Phase |
|||
Power Protection Level |
IP54 |
|||
Water Cooler |
2KW |
|||
Guarantee |
2 Years Guarantee for Fiber Laser Source 12 Month Guarantee for SS Laser Cutting Machine |
|||
Training |
Perfect Laser Will Offer VCD Training Video for Easy Learning Engineer Overseas Installation & Training is also Available |
|||
