Fire Alarm And FIre Fighting Equipment Input Module Fire Fighting Control

Fire alarm and fire fighting controlling with input/output module to active fire fighting equipment such as water pump, hydrant and send feedback signal to fire security controller fire alarm security center.

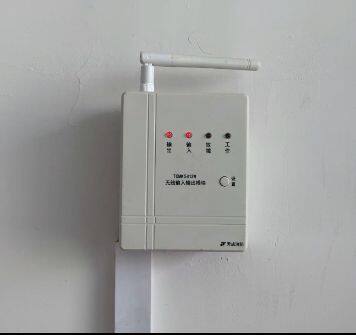

TCMK5411W wireless input module is suitable for installation in public places, factories and other environments. When there is a fire alarm, the module will send an alarm signal to the control panel through wireless communication technology after receiving the input signal specified by the manufacturer, and the red light is always on.

Technical Data

All data is supplied subject to change without notice.

Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.

Battery CR17450

Rated Operating Voltage 3V Operating current monitoring current≤13uA , alarm current≤20mA

Coding method automatically assigned when networking

Radio frequency transmit power<20dBm

Communication method 470MHz FSK coded bidirectional

Operating environment temperature 10℃~+55℃

 relative humidity ≤95%

Dimension 101mm*137mm*43mm

Weight 160g

the 470MHz wireless communication technology is adopted, and no embedded wiring is needed, so the engineering

installation is convenient and quick; With battery low voltage detection function, it can reflect the battery power situation in time;

The microprocessor is used to realize signal processing, and the digital signal is used to communicate with the control panel, which works stabely and reliably, and has a good ability to suppress electromagnetic interference.
