Beam Break Alert App Monitor Alarm Notify | Solar-powered 4-beams Active Wireless Infrared Light Wall Anti-Theft

Self-contained solar powered motion sensor alarm with sound. Built-in speaker and sound can be set as 5-60s or mute.

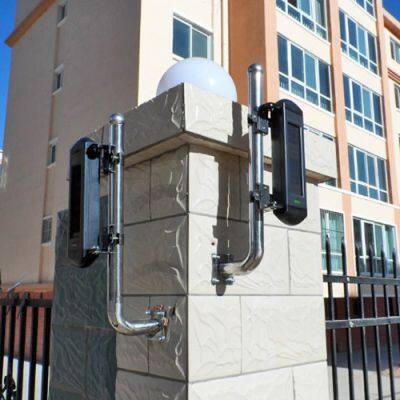

Infrared distance 100m solar powered intrusion barrier used for school, workshops, perimeter fencing of residential quarters etc.

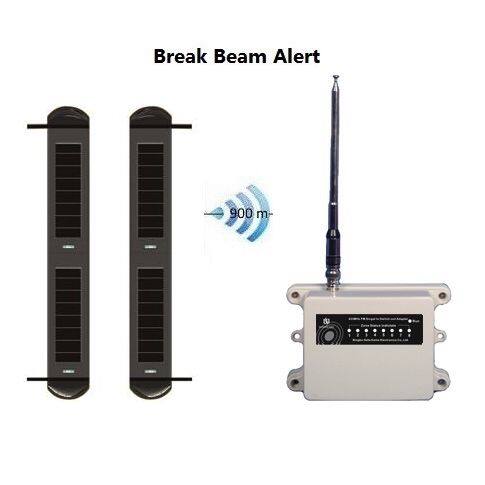

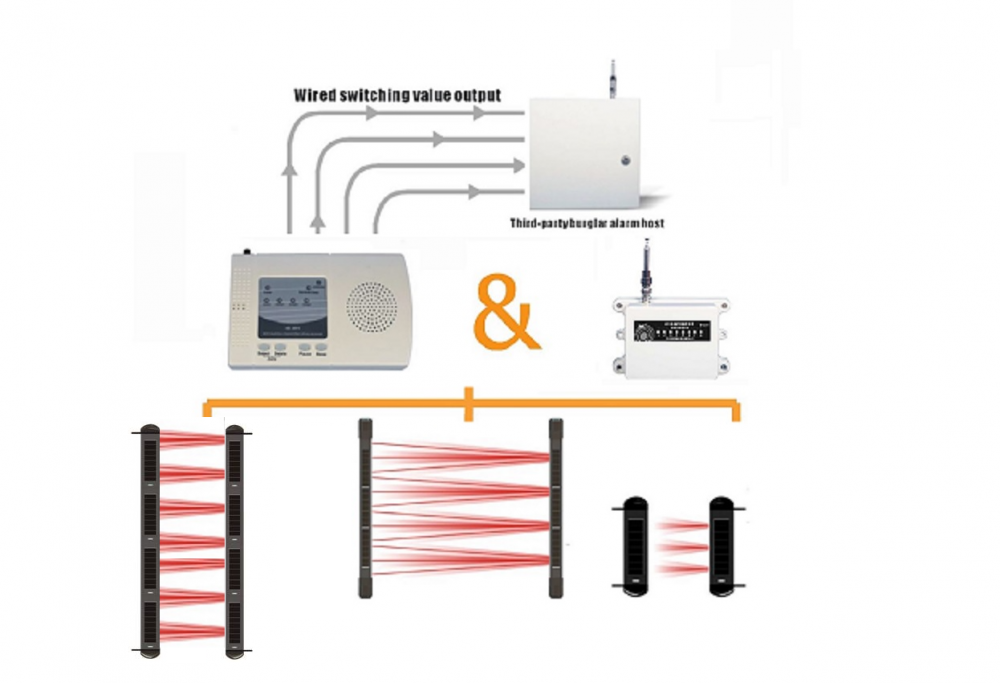

Package: 1 pair 4 beams photoelectric beam sensor. It has built-in sounder. Please purchase extra receiver such as app notify alarm panel HB-5050G/R for remote alarm operation and monitoring.

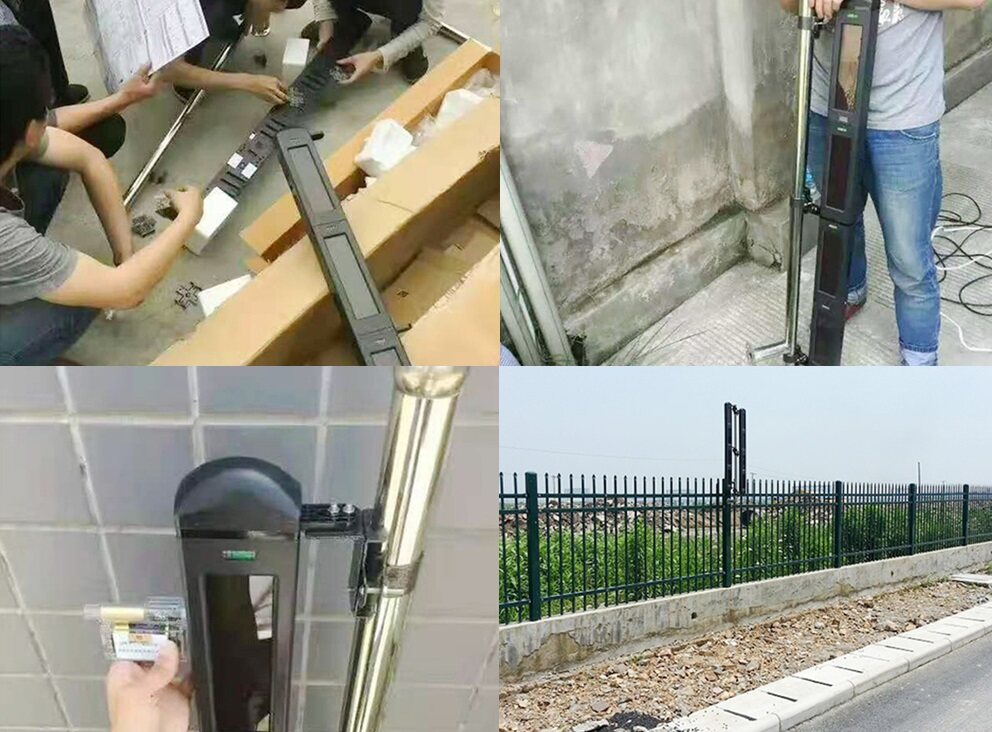

Installation video guidance step by step at install alarm system

Functions and Specification:

1.It is a solar-powered wireless product and should be installed at place with sunlight intensity more than 2200lux.

2.It is quad beams wireless outdoor infrared detectors working by pairs of transmitter and receiver.

3.Irradiation distance:100m

4.Wireless transmitting distance:800m

5.Wireless frequency:433MHz

6.Maximum alarm times in 24 hours:<=50 times

7.Infrared light beam number: 4 beams

8.Battery capacity: transmitting terminal: 500mAh, receiving terminal: 1000mAh

9.Working temperature: -30℃~70℃

10.Working voltage:3.3V

11.Power storage type: LiFePO4 Battery

12.Static working current: transmitting terminal<=0.5mA, receiving terminal<=0.5mA

13.Infrared light frequency: secondary modulation & encoding based on 38KHz

14.Infrared light wave-length: 940nm+/-20nm

15.Output current of solar panel: Under the condition of 1800Lux lighting >=2mA (Outdoor illumination in ordinary rainy or cloudy days is about 2000Lux)

16.Dimension:590*84*45mm

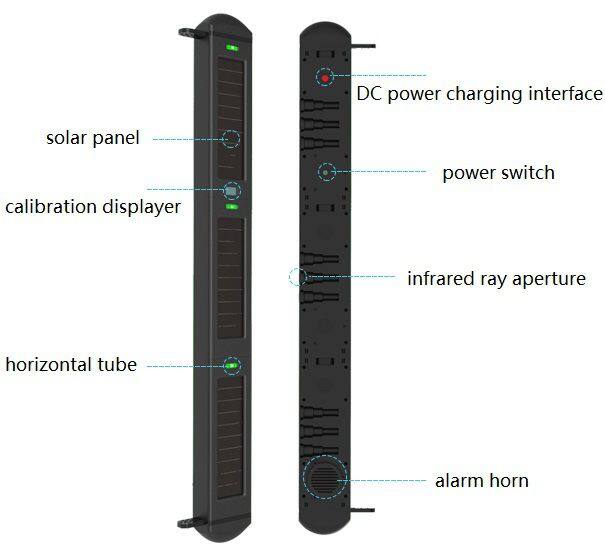

17.Distance between infrared light hole: 35mm
