Driveway Intrusion Alert Security System Solar Beams Detection | Anti-Theft Easy DIY Home Security Perimeter Security

Driveway intrusion alert, outdoor anti-theft solar power detector with indoor sound and light alarm device.
The package includes two parts of wireless perimeter security system. One part is outdoor intrusion detector. Another part is indoor wireless receiver with sound and light alarm. It is suitable for home security for yard, window, driveway, courtyard intrusion alert.
The user manual of this wireless driveway security system can be found at HB-T704 solar power driveway sensor
Outdoor Weatherproof IP66 Motion Sensor Detector DIY Security Alert
Driveway, outdoor yard, courtyard intrusion alert sensor.
This is HB brand wireless solar beam, sensor series, need to use with compatible wireless receiver such as HB-MFR, HB-5050R
Ideal for driveways,walking paths,and anywhere of your property you want to be alerted.

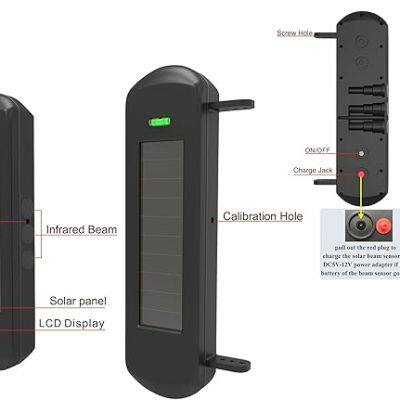

Functions and Specification:

1.It is a solar-powered wireless product and should be installed at place with sunlight intensity more than 2200lux.

2.It is quad beams wireless outdoor infrared detectors working by pairs of transmitter and receiver.

3.Irradiation distance:100m

4.Wireless transmitting distance:800m

5.Wireless frequency:433MHz

6.Maximum alarm times in 24 hours:<=50 times

7.Infrared light beam number: 4 beams

8.Battery capacity: transmitting terminal: 500mAh, receiving terminal: 1000mAh

9.Working temperature: -30℃~70℃

10.Working voltage:3.3V

11.Power storage type: LiFePO4 Battery

12.Static working current: transmitting terminal<=0.5mA, receiving terminal<=0.5mA

13.Infrared light frequency: secondary modulation & encoding based on 38KHz

14.Infrared light wave-length: 940nm+/-20nm

15.Output current of solar panel: Under the condition of 1800Lux lighting >=2mA (Outdoor illumination in ordinary rainy or cloudy days is about 2000Lux)

16.Dimension:590*84*45mm

17.Distance between infrared light hole: 35mm
