Heat Detector Wireless Fire Alarm And Fire Fighting Security Component

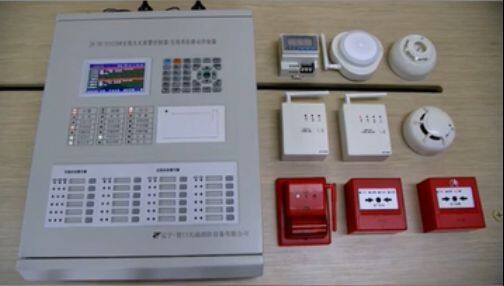

The wireless fire alarm and fire fighting control panel can equip up to 128 points with 2 loops of smoke detector, heat detector, gas sensor, manual call point, fire pull station, siren strobe. The wireless communication distance between detectors and panel is 700 meter and up to 4000 meter with repeater.

Product Wireless Heat Detector

Model JTY-GM-TC5402W

JTW-ZOM-TC5402W wireless heat detector is an

intelligent household fire detector with high- precision thermistor as the sensor, which can be used

together with the wireless fire alarm control panel

The detector uses advanced wireless transceiver

technology and high-integration micro-processing

chip to process data.

Technical Data All data is supplied subject to change without notice. Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated. Battery CR17450 3V Operating current monitoring current≤3uA ,

 alarm current≤18mA Coding method automatically assigned

 when networking Radio frequency transmit power<20dBm Frequency band 470MHz Communication distance ≤50m Communication method 470MHz FSK coded

 bidirectional Operating environment temperature 10℃~+55℃

 relative humidity ≤95% Dimension 100mm*54mm(with base) Weight 110g

Using advanced wireless transceiver

technology, signal transmission can be

completed without wiring, and the project is

simple and convenient. It adopts 470MHz communication and FSK

coding technology, which has strong anti- interference ability and long transmission

distance Low-voltage battery detection, reminding

the user to replace the battery when it is

insufficient to maintain the normal operation

of the detector.
