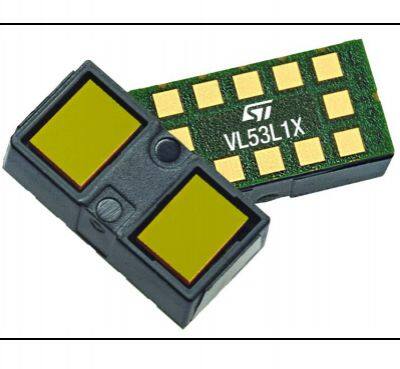

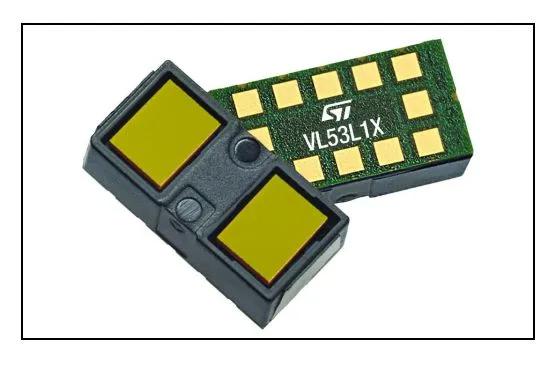

VL53L1CXV0FY/1 Package: LGA-12 position sensor ST original stock

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ST	Place of Origin	Albania
Model Number	VL53L1CXV0FY/1	Type	Drive IC
Package	3600	D/C	24+

Product Description

describe

VL53L1X is a state-of-the-art time-of-flight (ToF), laser rangefinder sensor that enhances ST's sense of flight ™ Product series. This is the fastest miniature temperature sensor on the market, with a precise range of 4 meters and a fast range frequency of 50 hertz, housed in a miniature and flowable package. It integrates a SPAD receiver array, a 940nm stealth Class 1 laser emitter, a physical infrared filter, and optical coverage window options to achieve optimal range performance under various environmental lighting conditions.

Unlike traditional infrared sensors, the VL53L1X uses ST's latest generation ToF technology, allowing for absolute distance measurement regardless of target color and reflectivity. It is also possible to reduce the sensor field of view by adjusting the size of the ROI on the receiving array.

Features

• Fully integrated miniature module

– Size: 4.9x2.5x1.56 mm

– Emitter: 940 nm invisible laser (Class1)

– SPAD (single photon avalanche diode)

receiving array with integrated lens

– Low-power microcontroller running advanced

digital firmware

• Pin-to-pin compatible with the VL53L0X

FlightSense™ ranging sensor

• Fast and accurate long distance ranging

– Up to 400 cm distance measurement

– Up to 50 Hz ranging frequency

• Typical full field-of-view (FoV): 27 °

• Programmable region-of-interest (ROI) size on

the receiving array, allowing the sensor FoV to be

reduced

• Programmable ROI position on the receiving

array, providing multizone operation control from

the host

• Easy integration

– Single reflowable component

– Can be hidden behind many cover window

materials

– Software driver and code examples for

turnkey ranging

– Single power supply (2v8)

– I²C interface (up to 1 MHz)

– Shutdown and interrupt pins

Applications

• User detection (Autonomous low-power mode) to

power on/off and lock/unlock devices like

personal computers/laptops and the IoT

• Service robots and vacuum cleaners (long

distance and fast obstacle detection)

• Drones (landing assistance, hovering, ceiling

detection)

• Smart shelves and vending machines (goods

inventory monitoring)

• Sanitary (robust user detection whatever the

target reflectance)

• Smart building and smart lighting (people

detection, gesture control)

• 1 D gesture recognition

• Laser assisted autofocus which enhances the

camera autofocus system speed and robustness,

especially in difficult scenes (low light and low

contrast) and video focus tracking assistance
